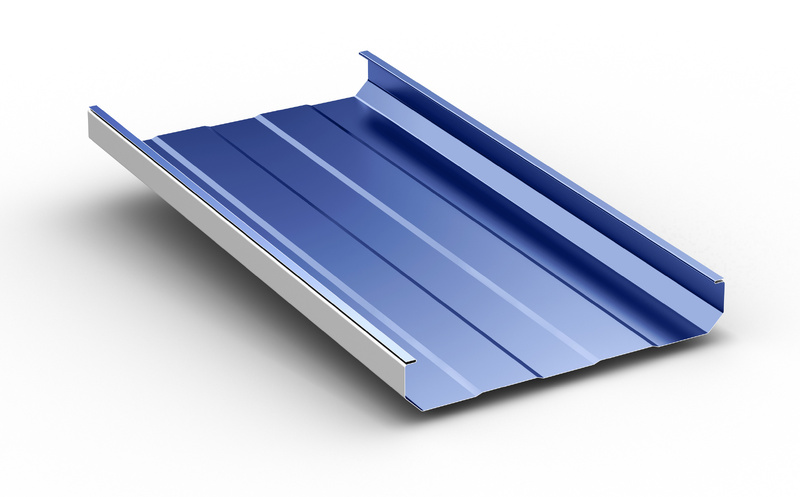

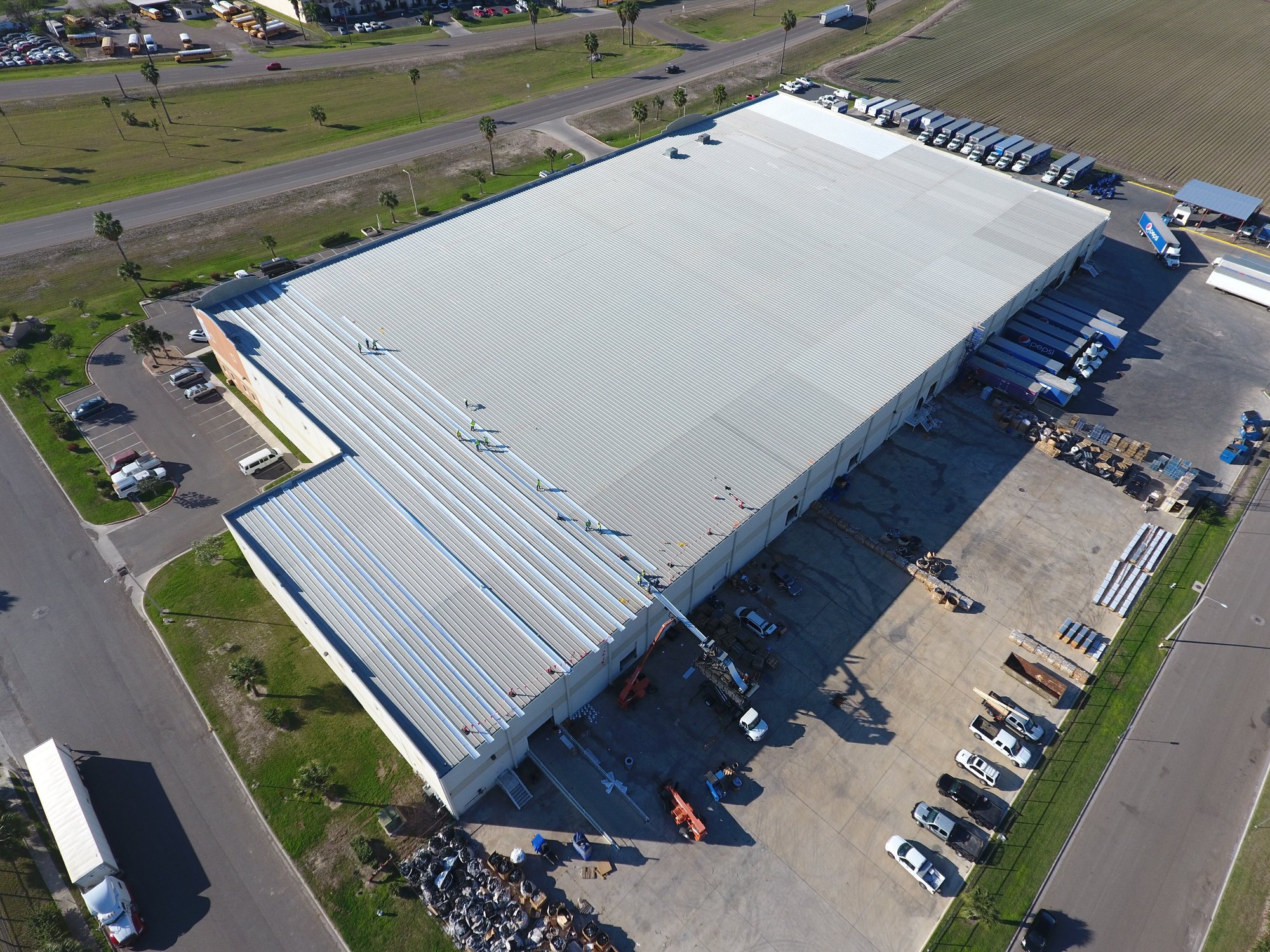

Trap-Tee
McElroy's 2 3/4" tall symmetrical Trap-Tee system is a mechanically seamed system designed to resolve the three major shortcomings of trapezoidal standing seam roof systems: leaking endlaps, low wind uplift capacity, and repair challenges.
Trap-Tee
Great for:
WALLS
ROOFS
RESIDENTIAL
COMMERCIAL
Site forming eliminates end laps that tend to leak over time. Oversized seams and special clips dramatically increase wind uplift capacity, and the symmetrical design allows for easy repair or alteration after the roof is installed. With a life expectancy approaching 60 years, the ability to add curbs, vents, single panel replacement, and even building additions represents a critical component.
McElroy's standard paint system for Trap-Tee is Kynar 500® (PVDF), the industry's best coating for long-term protection against panel chalk and fade. For budget-conscious or low-sloped applications, this panel is also available in acrylic-coated Galvalume®.
Trap-Tee Advantages Include:
- Ease of installation
- Individual panel replaceability
- Watertight seam design
- Outstanding wind uplift
- 1/4:12 minimum roof slope
- Single-piece panels up to 250' long
- No lap conditions = improved
weathertightness - Bi-directional seamer

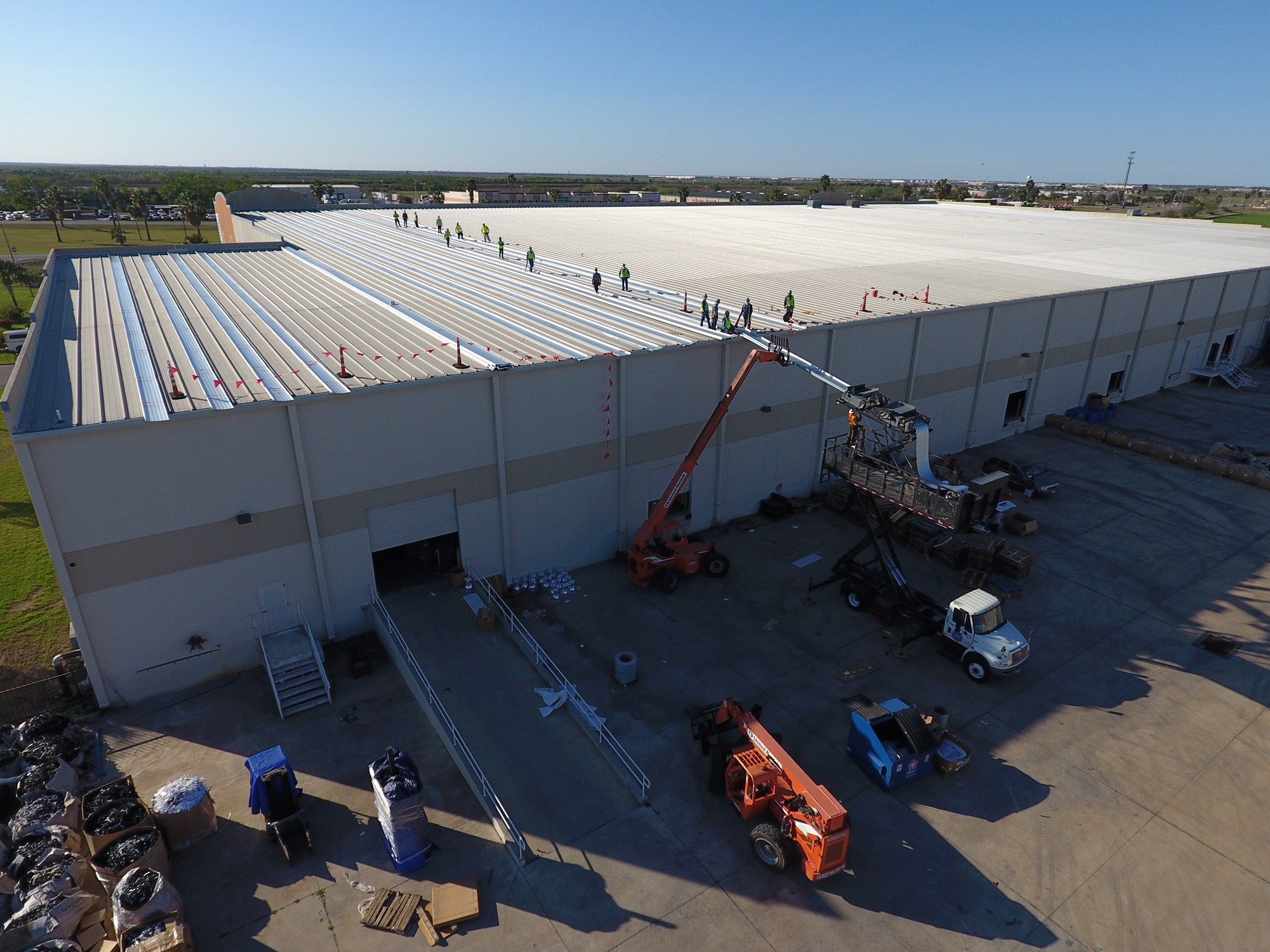

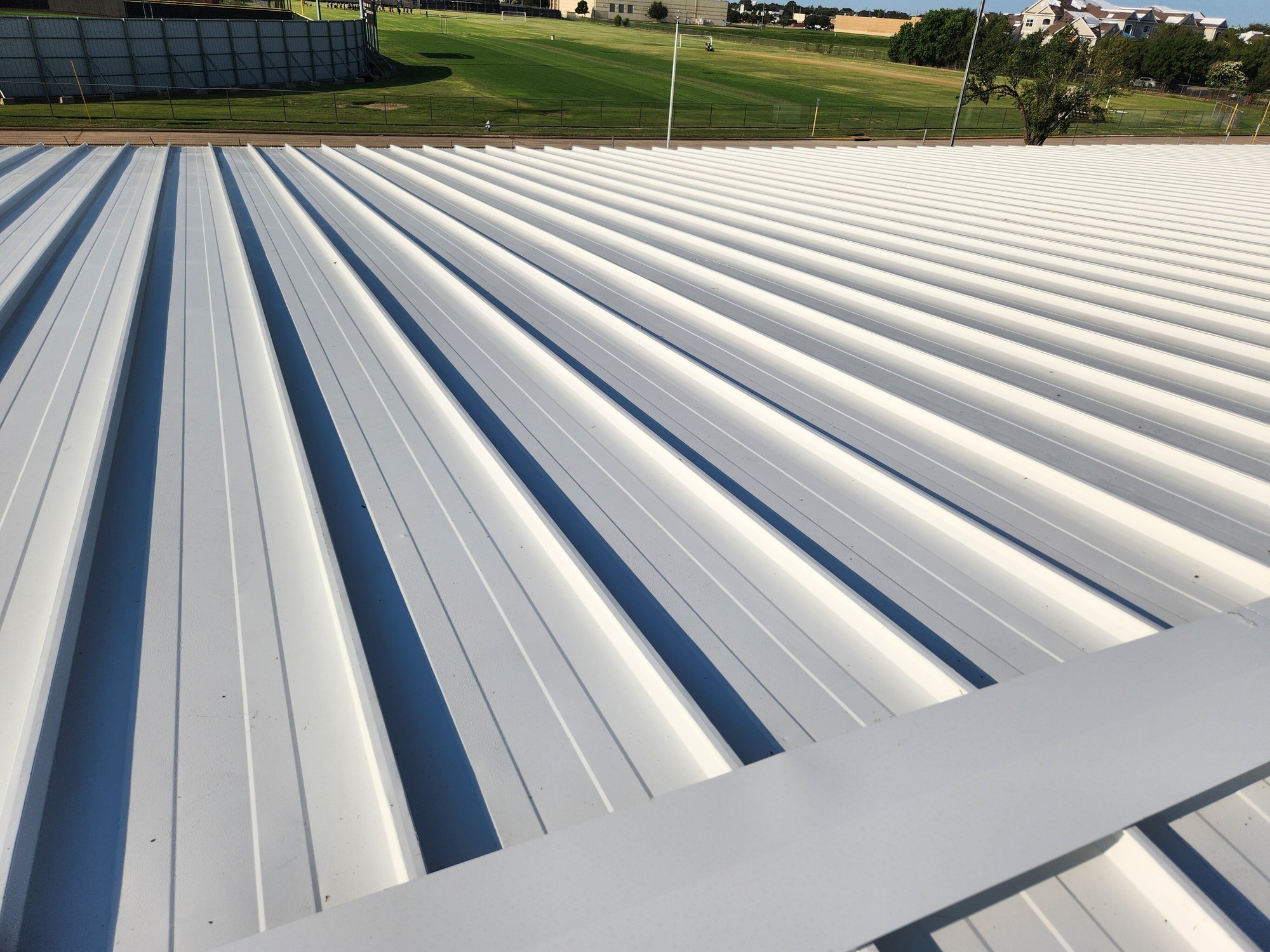

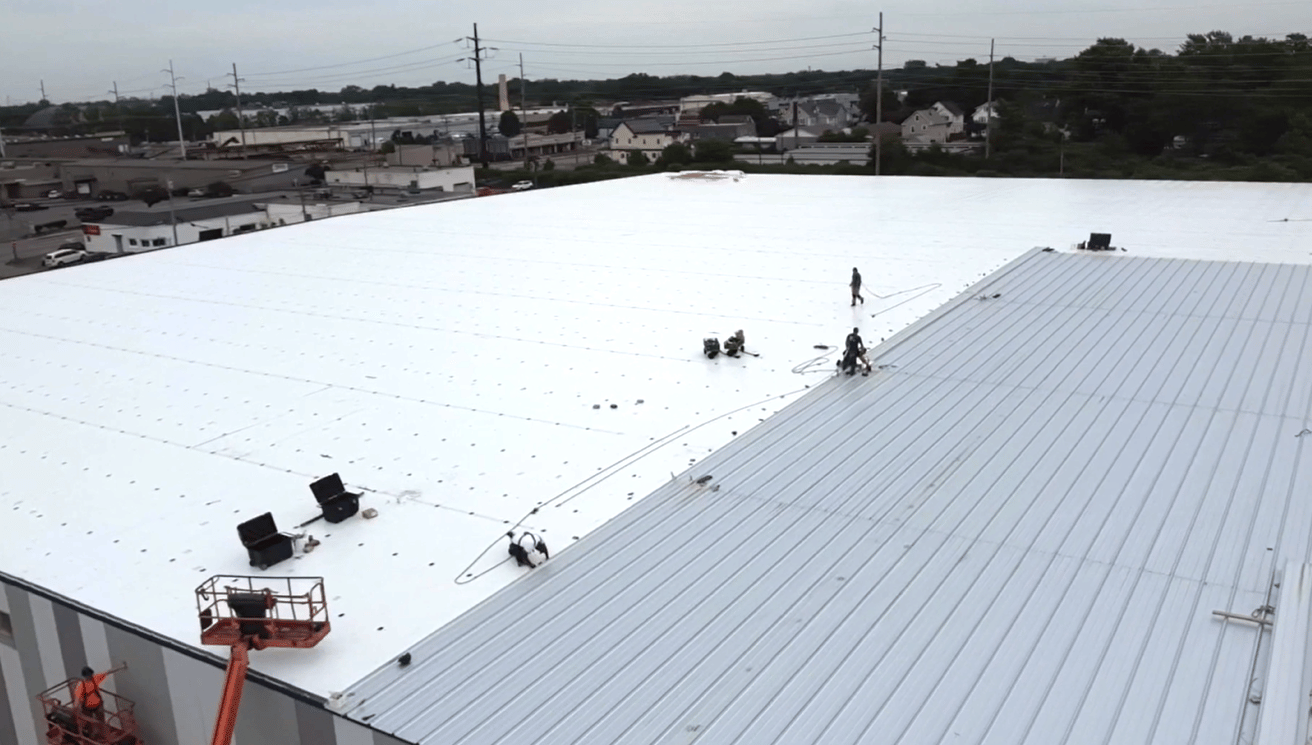

- Ideal for: new construction; remove and replace; and recover for open frame buildings
Renderings & Profiles
Specifications & Details
Details
Profile

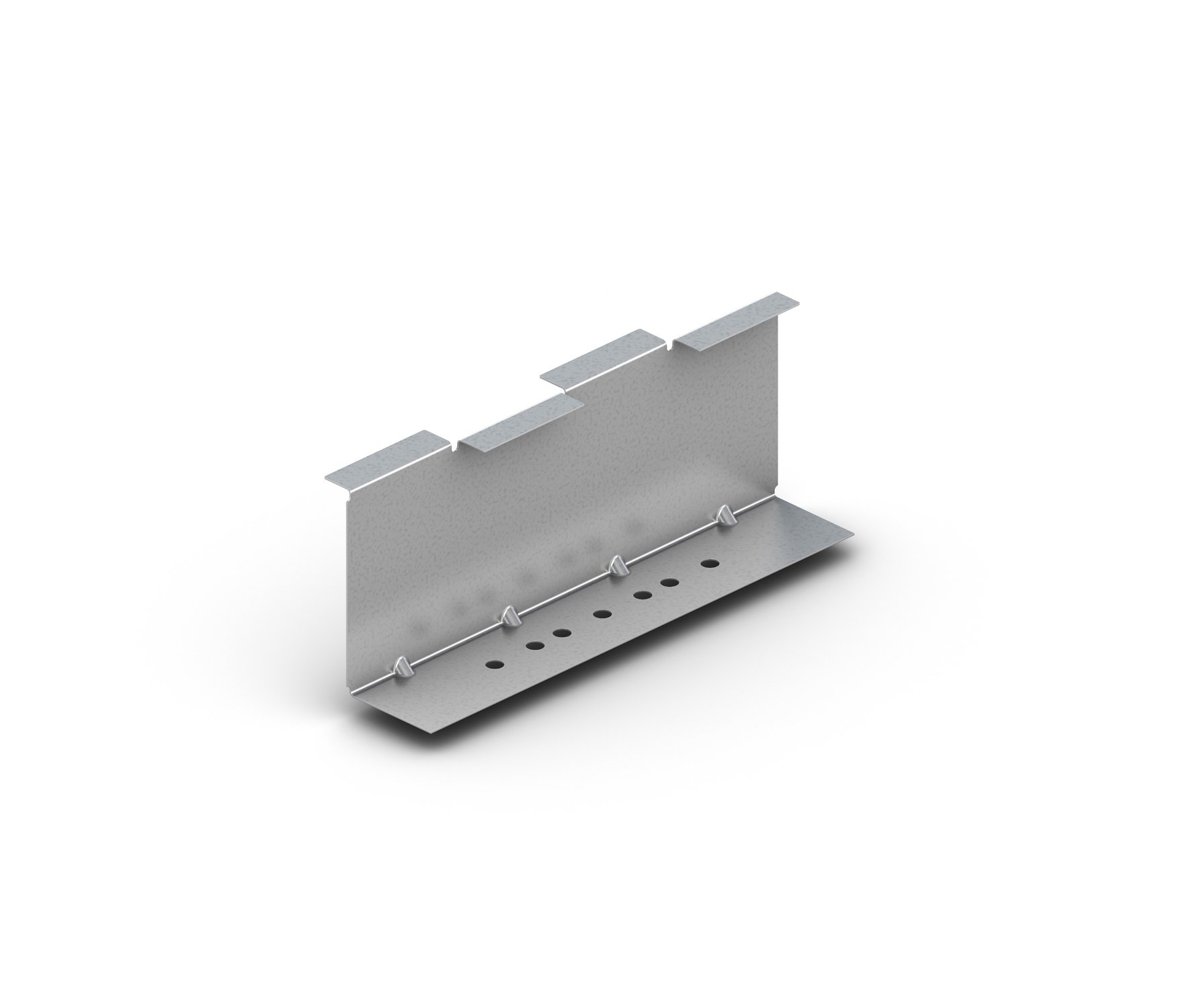

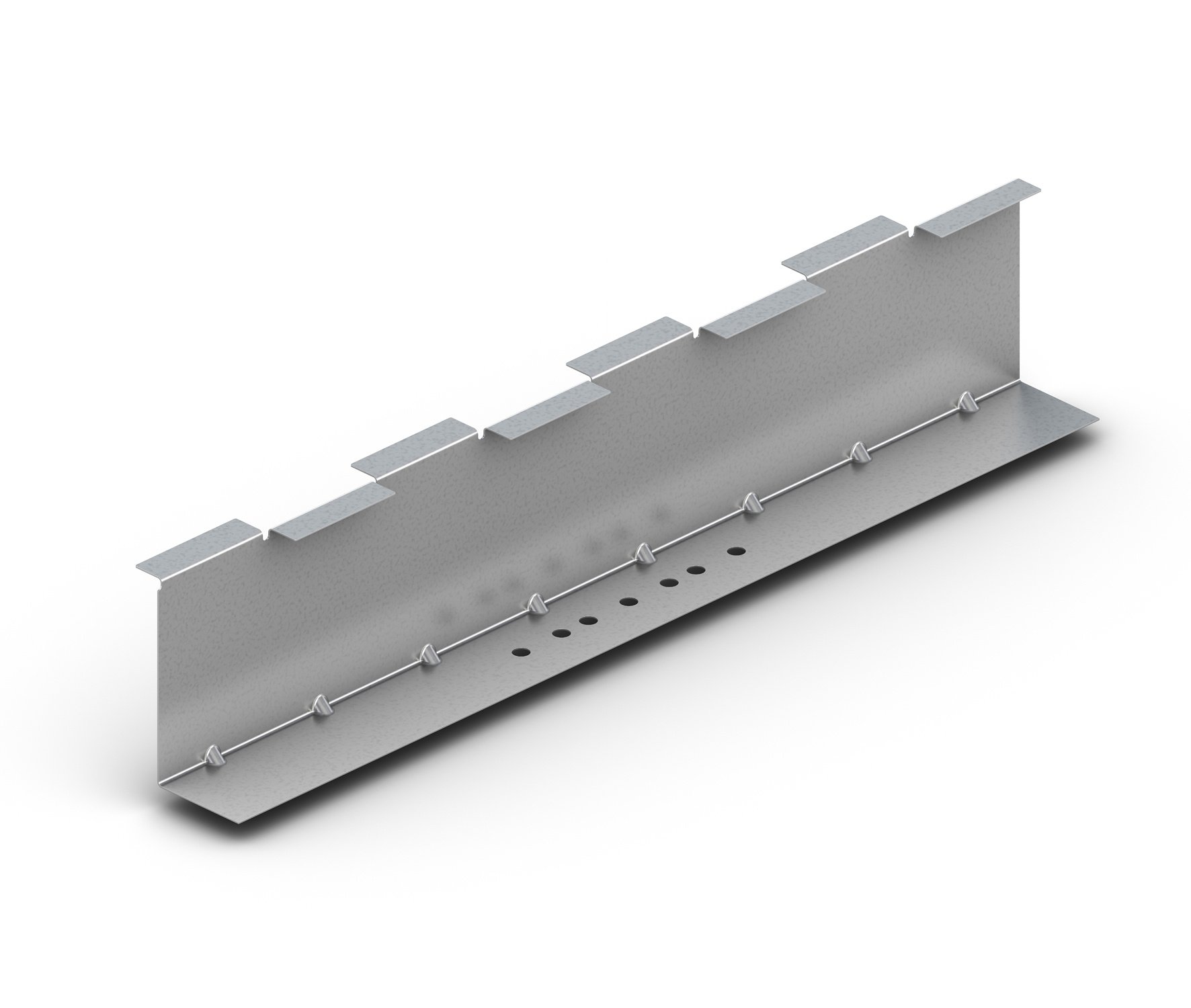

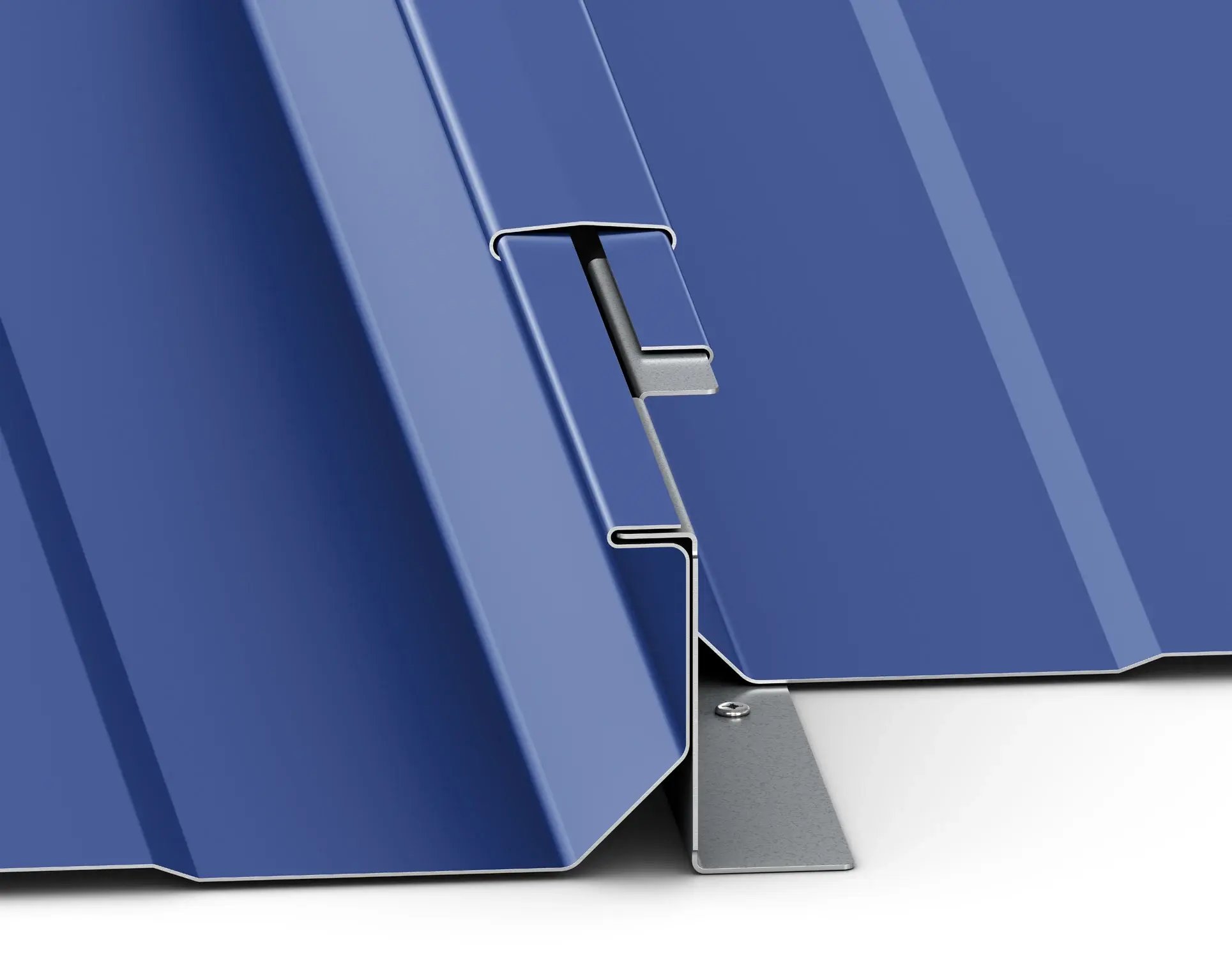

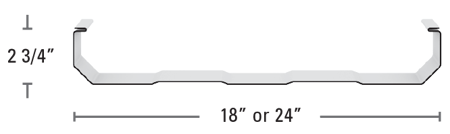

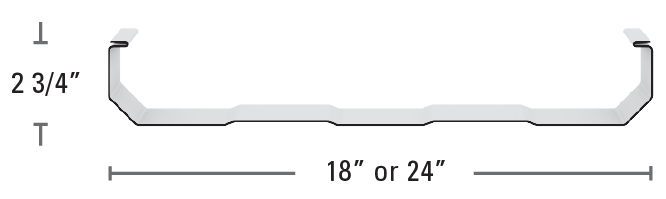

2 3/4" Mechanically Seamed
Manufacturing Facililties
Houston, TX
Seam Cap

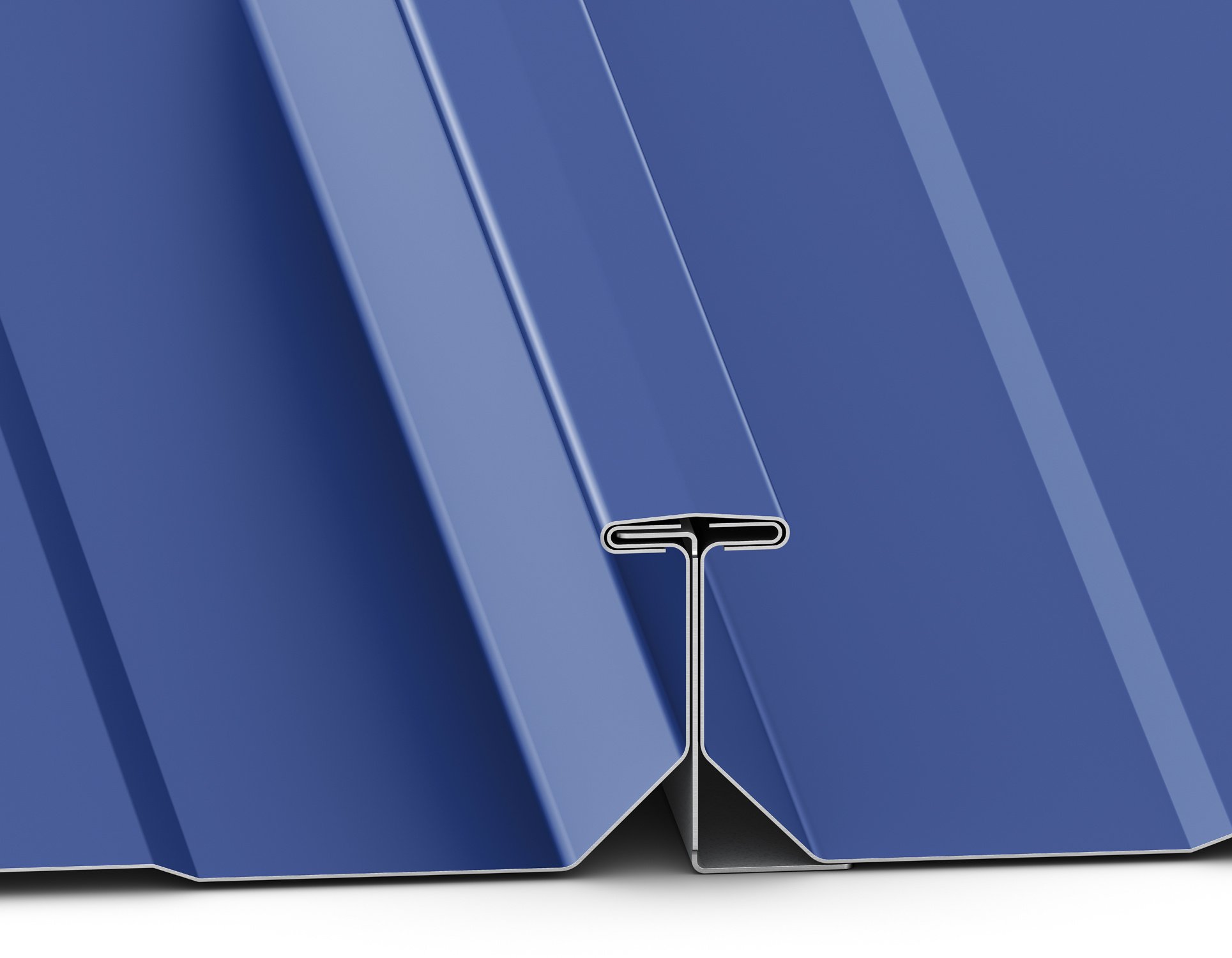

Seam cap includes 2 beads of continuous factory-applied sealant
Minimum slope
1/4:12
Installation
Can be installed over a solid deck or open framing
Suitability
Best suited for simple sloped roofs without dormers, hips, valleys or other special conditions.
Note
Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection

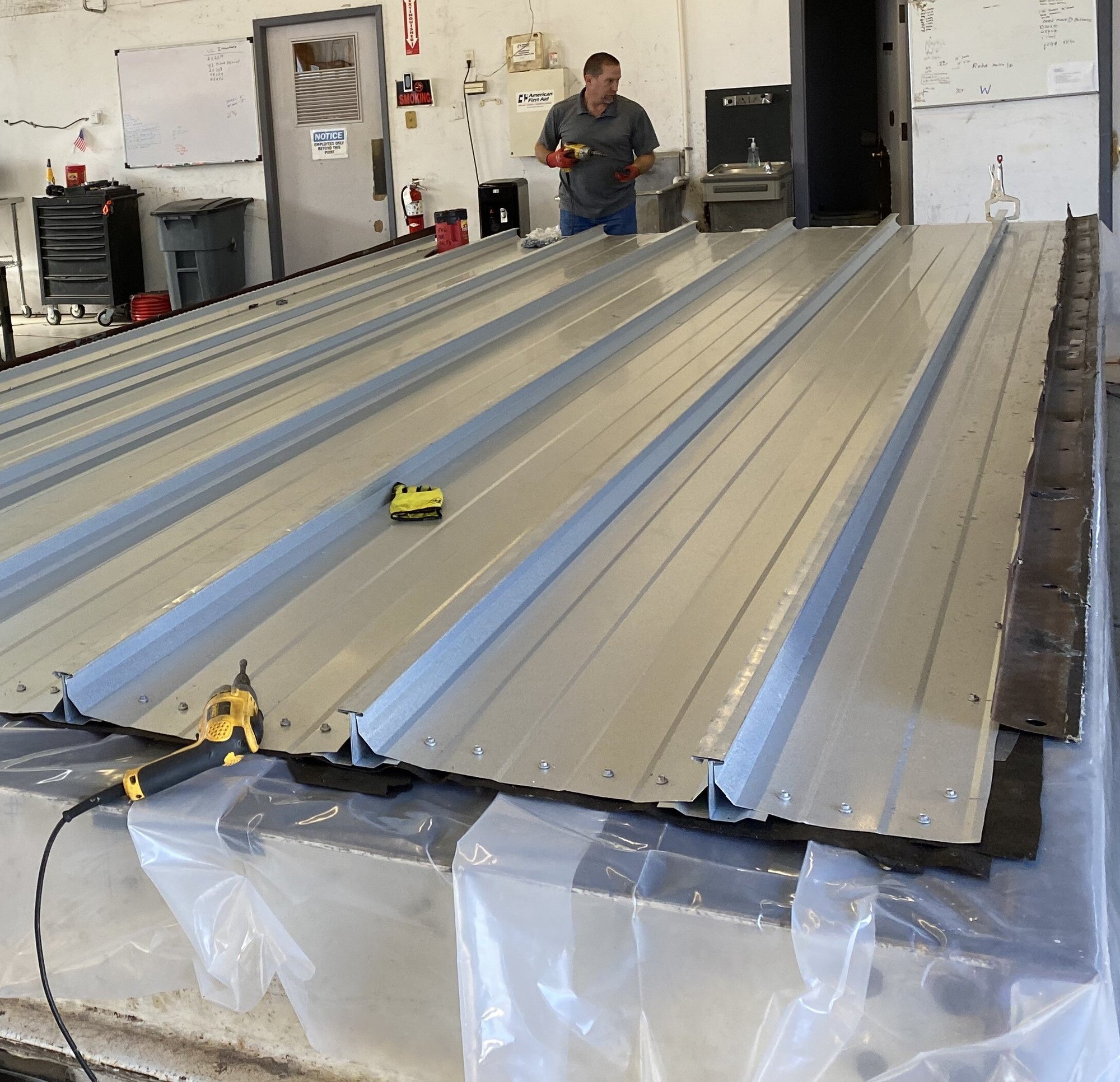

Testing
Uplift Test
ASTM E1592
Air Infiltration
ASTM E1680
Water Infiltration
ASTM E1646
Testing Data
For any available Test Data, Section Properties, or Load Tables, please visit our downloads section
Panel Options
Panel Width
18" Factory Produced-40' Maximum Length
18" & 24" Site Formed
Panel configurations
Minor Ribs
Coating
Acrylic Coated Galvalume®
Kynar 500® (PVDF)
Substrate
Standard 24 GA Galvalume®
Optional 22 GA & 20 GA Galvalume® (Inquire. Possible minimum order and longer lead time may apply.)
Related Products
238T
.jpg?width=800&height=600&name=Maxima%20Standing%20Seam%20System%20on%20Fire%20Station%20(1).jpg)
Maxima
ML90
ML90
238T
Maxima
ML90
238T
R-Seal®

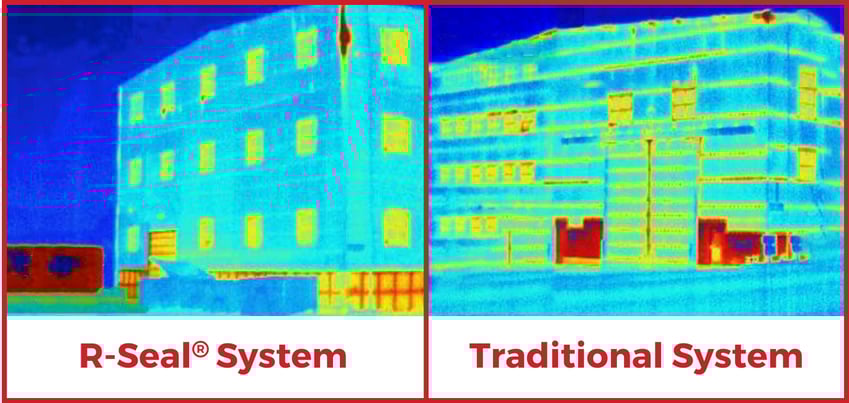

R-Seal’s continuous insulation system reduces heat transfer through the building's framing. Traditional insulation systems allow more heat to be conducted through the building's framing.
