Medallion I and Medallion II Batten Seam Panels
Medallion I and Medallion II are architectural standing seam systems which utilize separate batten caps that are installed over adjoining roofing panels. Medallion I features a narrow batten cap while Medallion II features a wider cap.
Medallion I and Medallion II Batten Seam Panels
Great for:
Walls
Roofs
Residential
Commercial
WALLS
Both Medallion systems are installed over solid decking. Medallion I can also be curved to meet radius panel specifications.

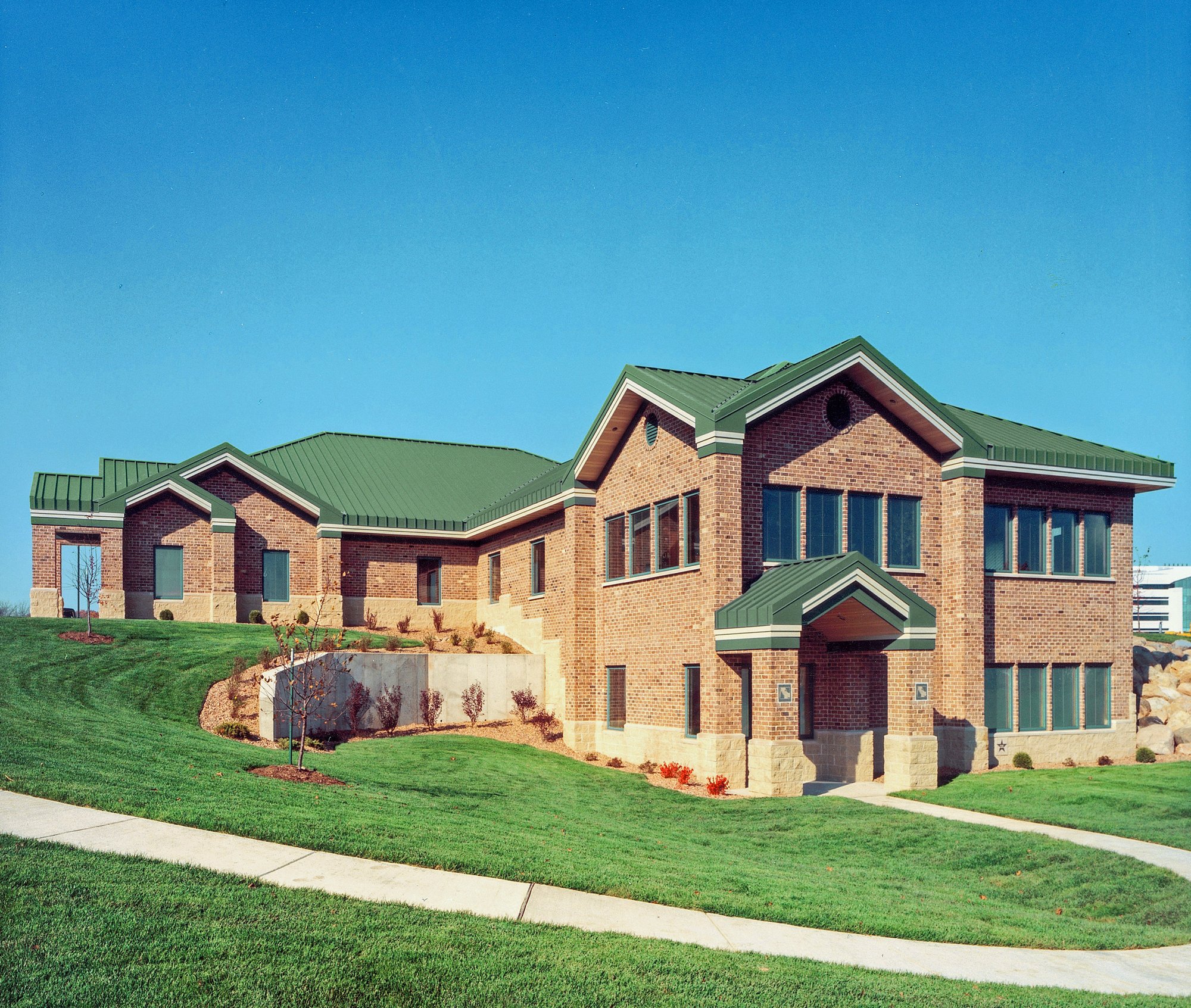

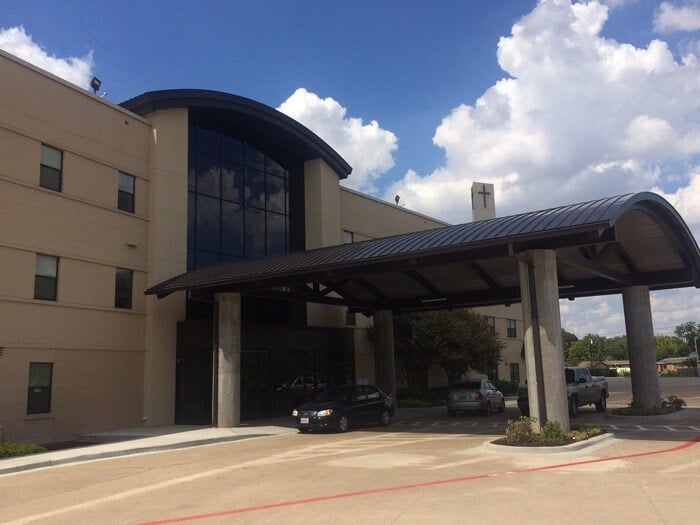

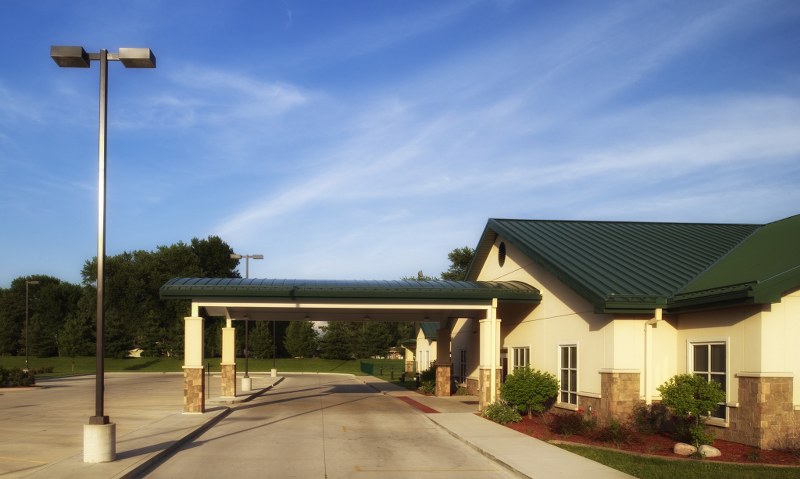

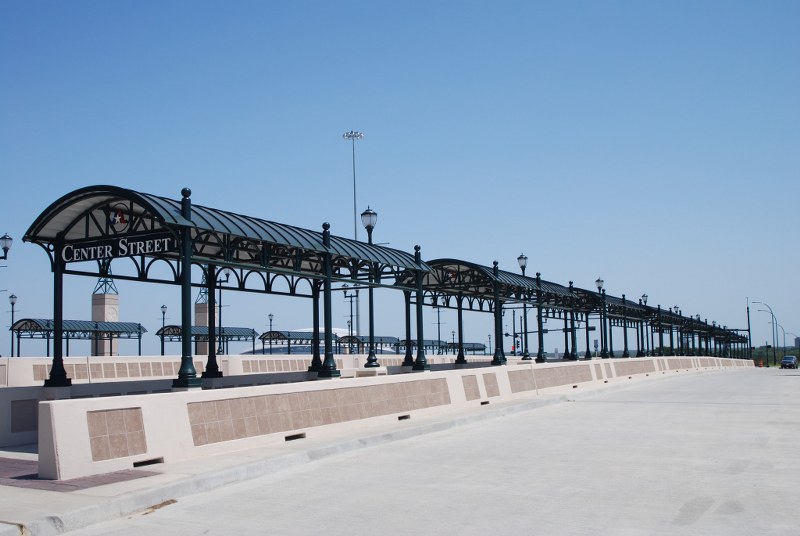

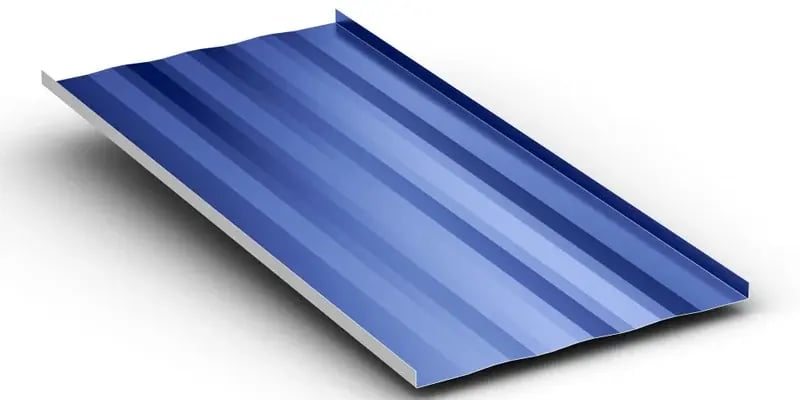

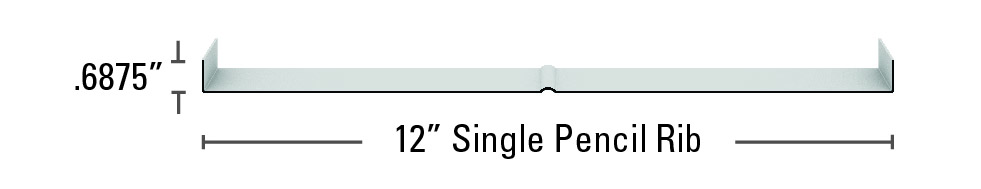

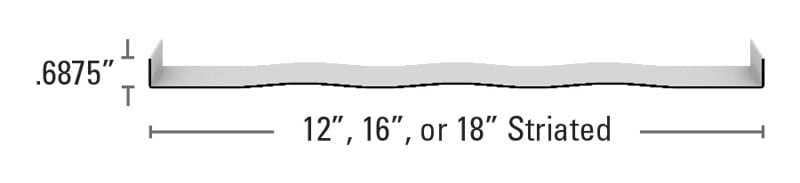

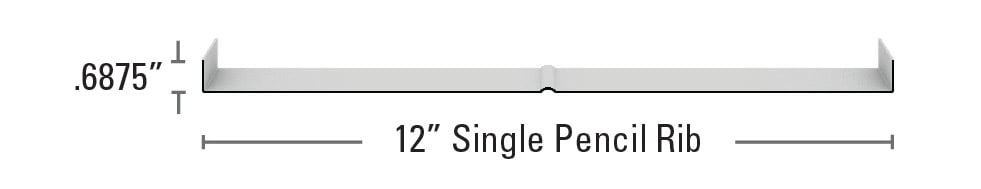

Renderings & Profiles
Specifications & Details
Details
Minimum slope
3:12
Installation
Must be over solid deck
Curving
Medallion I only - minimum radius 30"
Manufacturing Facilities
Adelanto, CA; Peachtree City, GA; Sunnyvale, TX
Note
Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
Fire Rating
Class A
Uplift Test
UL580 Class 90
Air Infiltration
ASTM E1680
Water Infiltration
ASTM E1646
Class 4 Impact Resistance
UL 2218
Florida State Approval
1832.6 (Medallion II), 1832.5 (Medallion I)
Fire Resistance
UL263
Testing Data
For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options

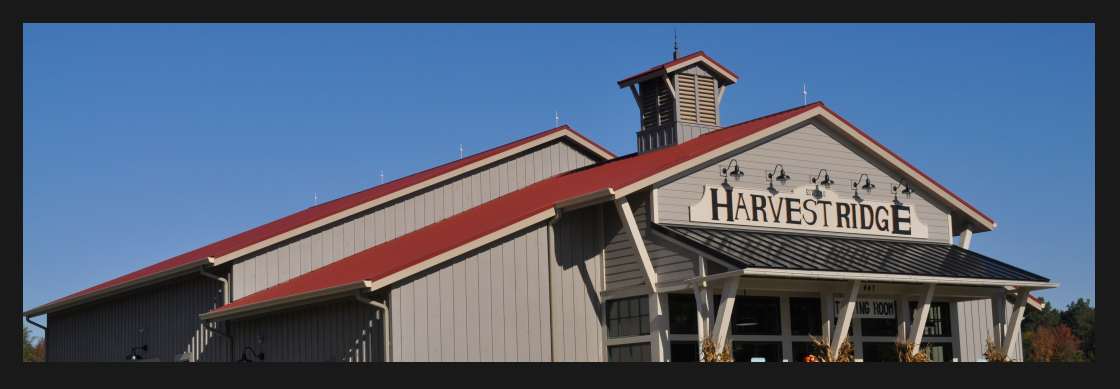

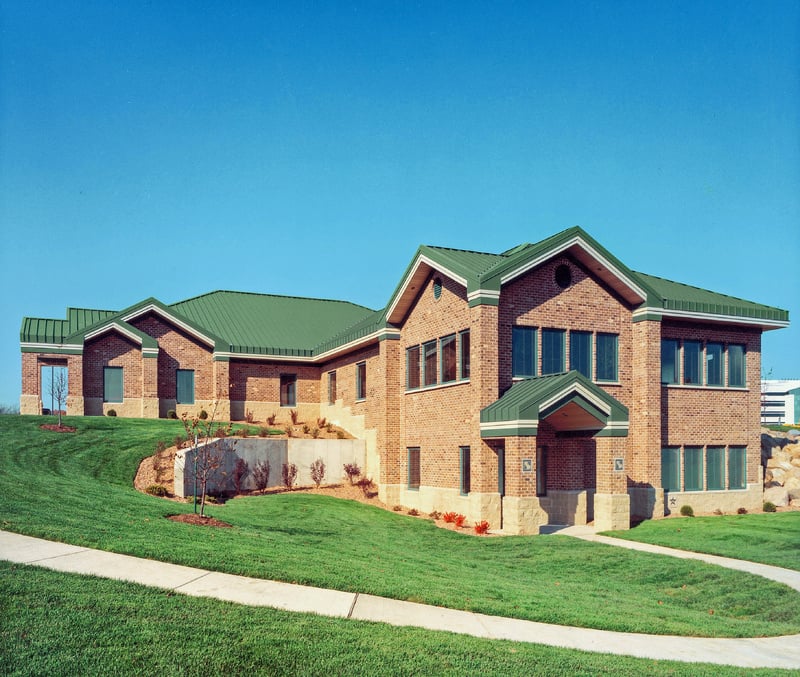

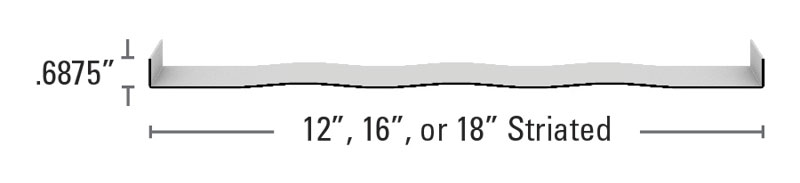

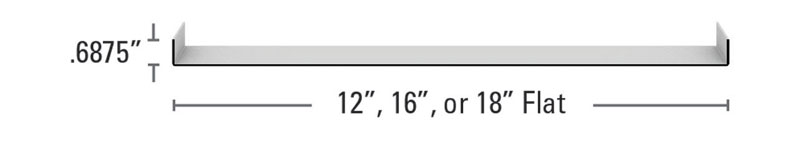

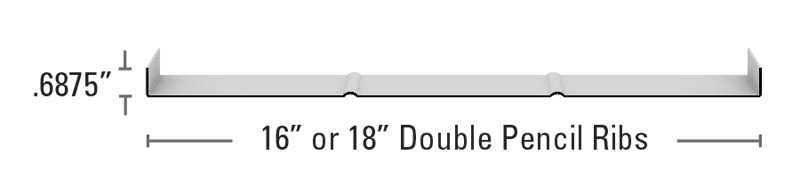

Panel width
12", 16" and 18"
Panel configurations
Striated, Ribbed or Flat Pan (Striated recommended)
Coating
Kynar 500® (PVDF)
Substrate
Standard 24 GA Galvalume®
Details and Components Gallery

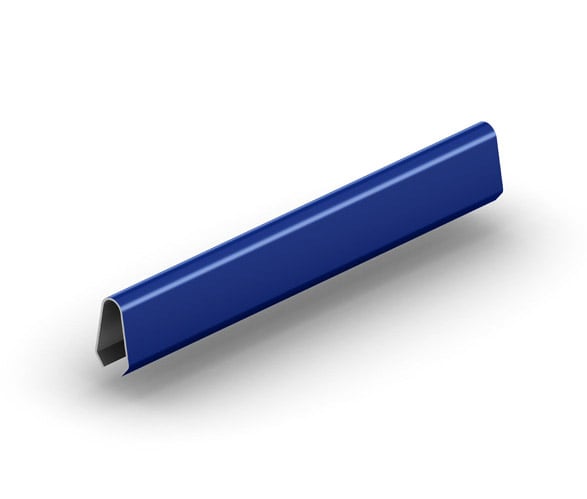

Medallion I Batten

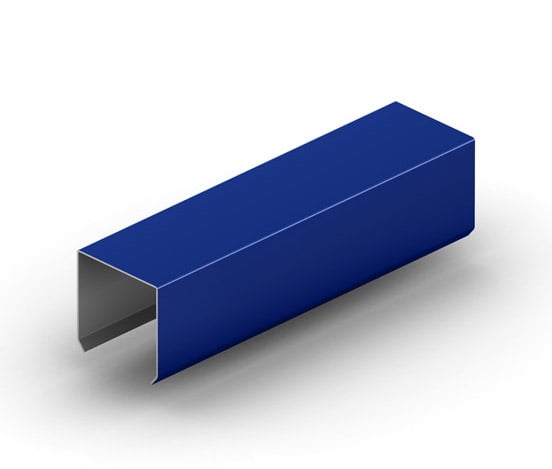

Medallion II Batten

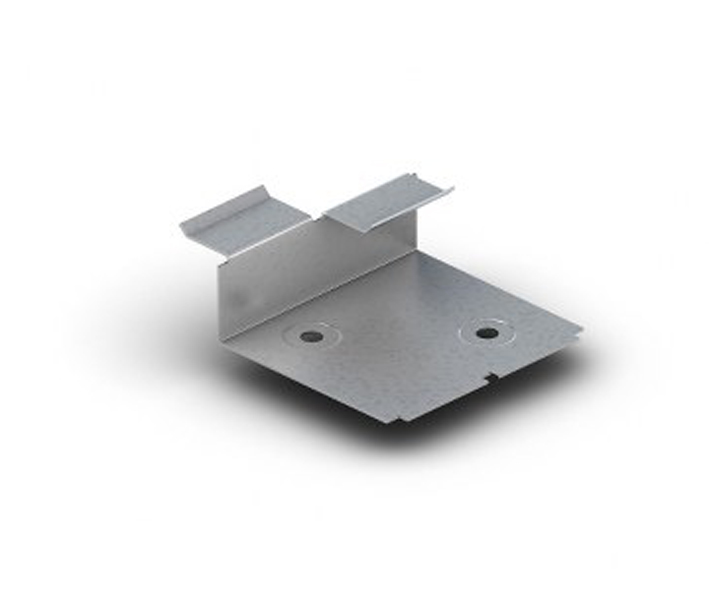

Medallion I Clip

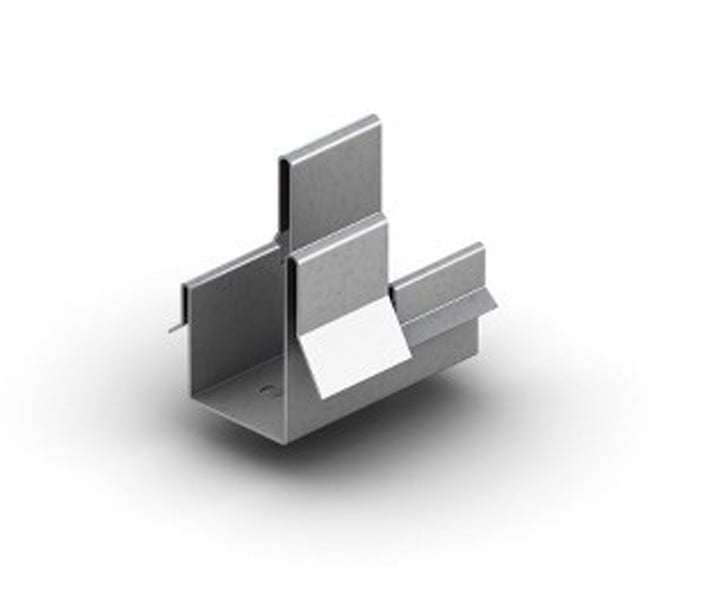

Medallion II Clip

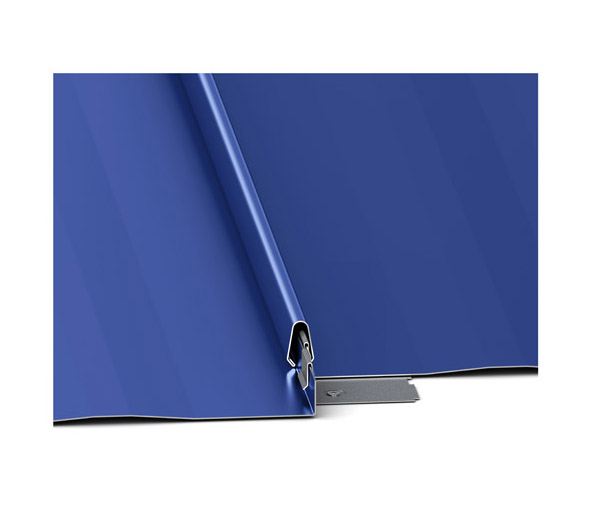

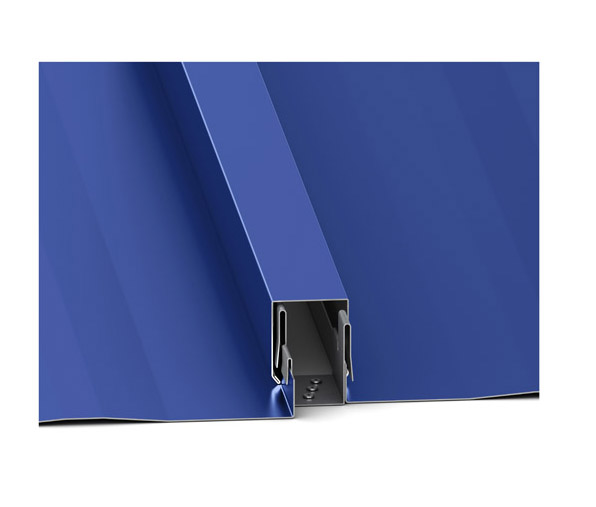

Medallion I Seam
Medallion II Seam
Medallion I Batten
Medallion II Batten
Medallion I Clip
Medallion II Clip
Medallion I Seam
Medallion II Seam

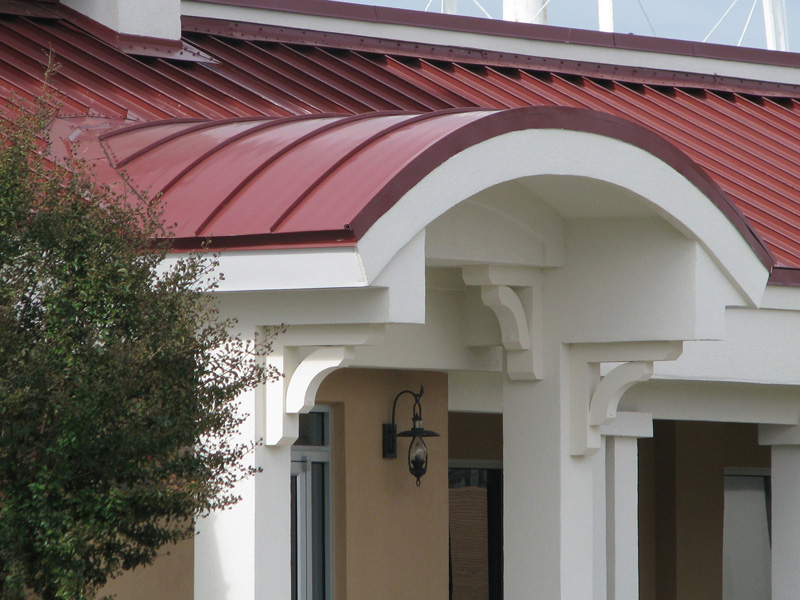

Curving Information
- Medallion I Battens can be curved
- Minimum radius: 30”
- Curving equipment can be rented at www.mcelroyseamers.com
- Curving equipment can be shipped directly to the jobsite to allow onsite curving
- Developmental Industries (DI) will bill directly for all equipment rental
- Medallion I flat panels will curve naturally on a radius of 24’ or greater
