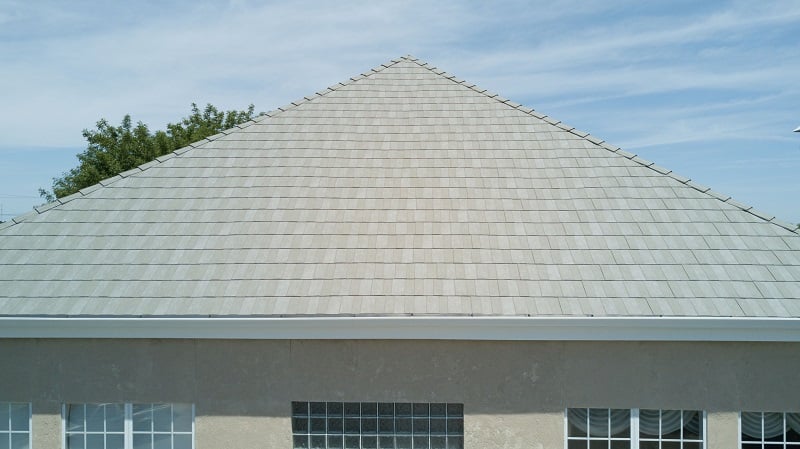

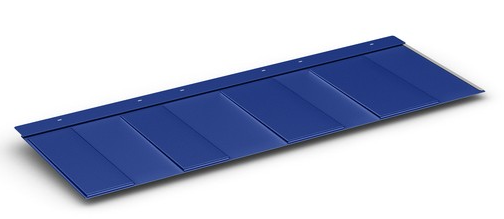

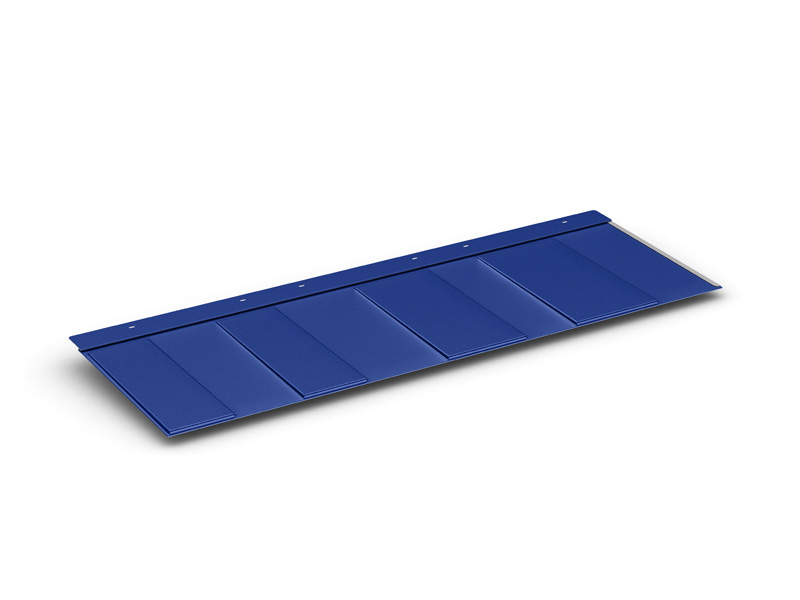

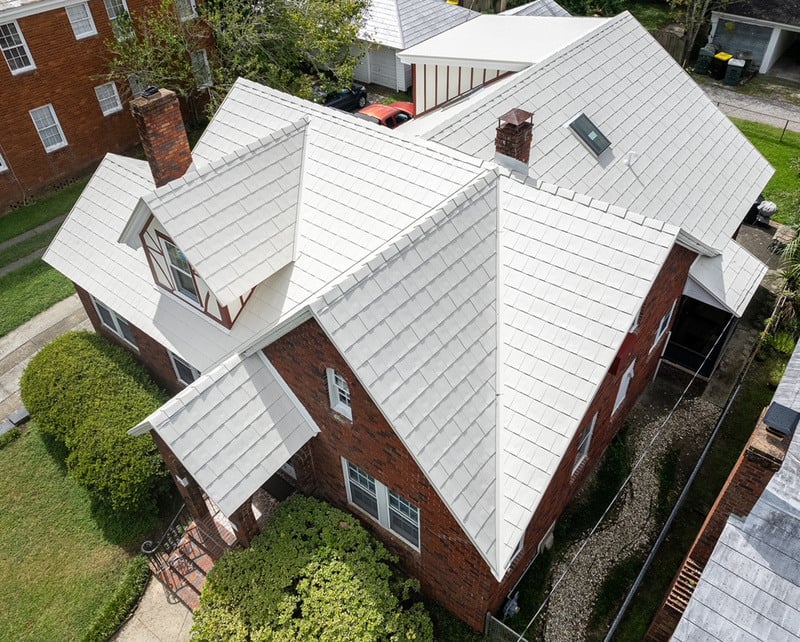

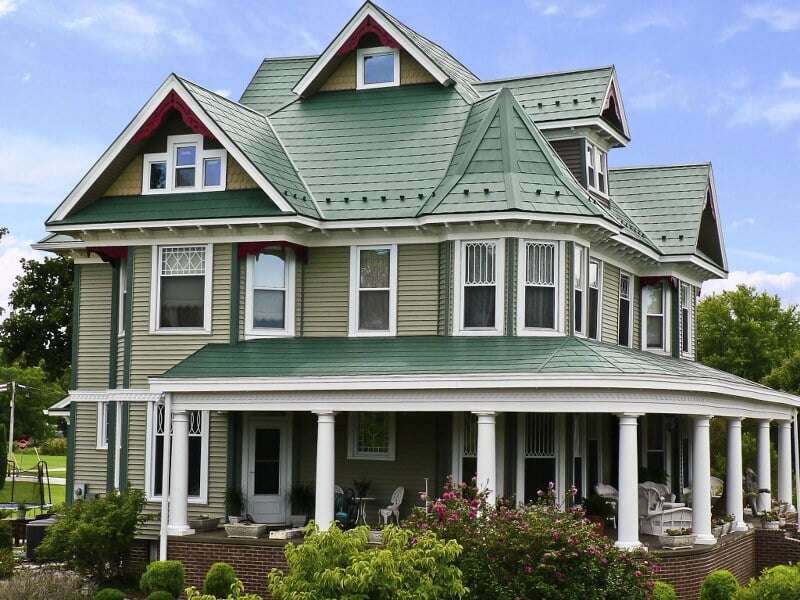

Milan steel shingles add beauty and curb appeal to any home or business. Milan provides the aesthetic appearance of shingles, slate or
Click the View Related Files button below to view a color chart.
| Details | |
|---|---|
| Minimum slope | 3:12 |
| Panel exposure | 39" x 12" |
| Panels per square | 30.77 |

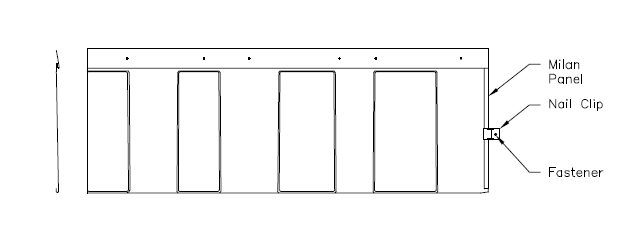

| Note | Four-way interlock system secured to the roof using aluminum fastening clips |
| Installation | Can be over most existing asphalt shingles or solid deck |
| Testing | |
|---|---|
| Fire Rating | UL 790 Class A or Class B (depends upon exact roof preparation) |
| Uplift Test | UL 1897 |
| Texas Department of Insurance | RC-463 |
| Florida State Approval | #19173.1 |
| Testing Data | For available Test Data, Section Properties or Load Tables, please visit our downloads section. |
| Panel Options | |
|---|---|
| Coating | Low gloss, Kynar 500®/Hylar 5000® (PVDF) Designer prints in Low gloss Kynar 500®/Hylar 5000® (PVDF) are also available |
| Substrate | 29 GA G90 Galvanized |
