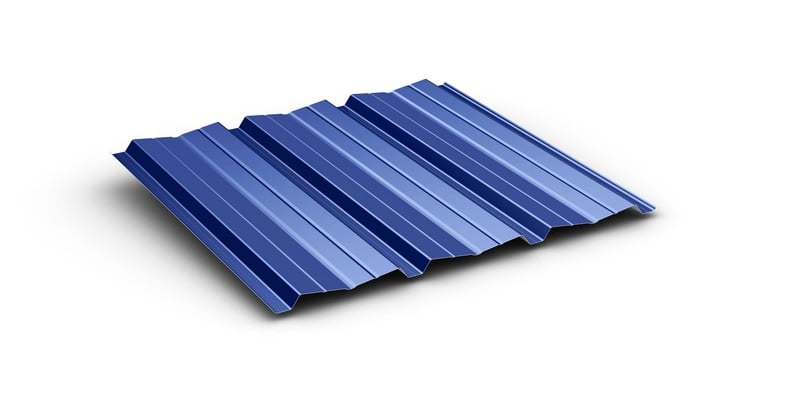

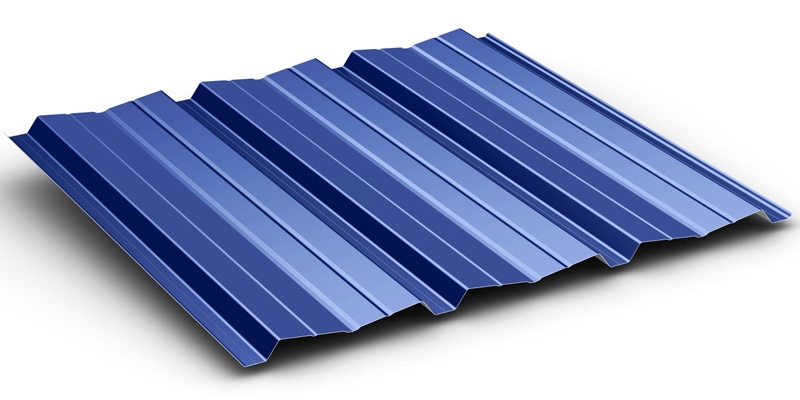

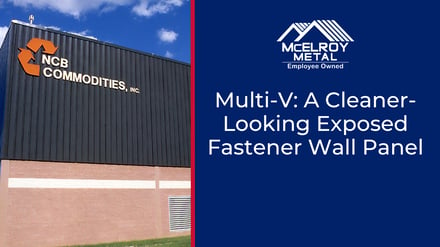

Multi-V is an exposed fastener wall panel designed so that fasteners are placed in the valleys, making them visually less apparent. Multi-Rib's use is most common on pre engineered metal buildings as an alternative to standard R-Panel walls.
| Details | |
|---|---|
| Manufacturing Facilities | Bossier City, LA; Clinton, IL; Winchester, VA; Adelanto, CA; |
| Notes | - Panel to be used as a wall panel only - Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection |
| Testing Data | |
|---|---|
| Testing Data | For available Test Data, Section Properties or Load Tables, please visit our downloads section. |
| Panel Options | |
|---|---|
| Coating | - Kynar 500® (PVDF) - Silicone Modified Polyester (SMP) |
| Substrate | - Standard 26 GA Galvalume® - Optional 24 GA Galvalume (Inquire. Possible minimum order and longer lead time may apply.) |
