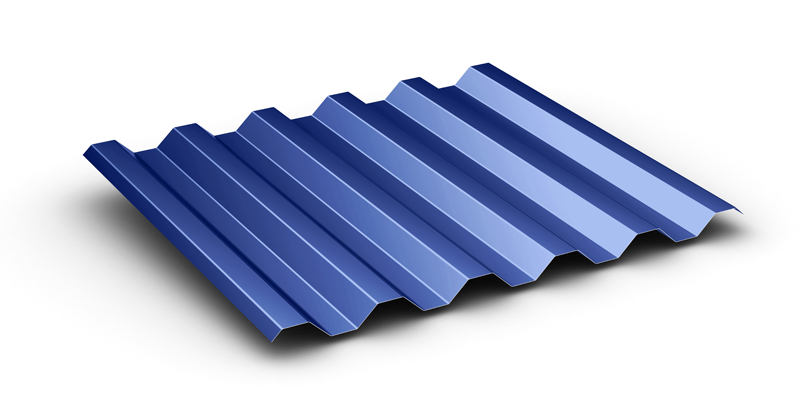

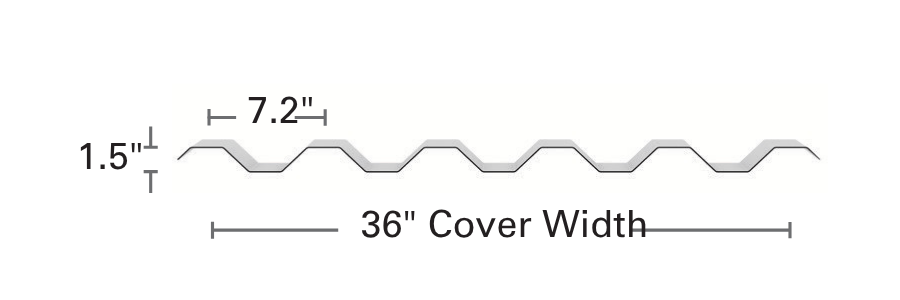

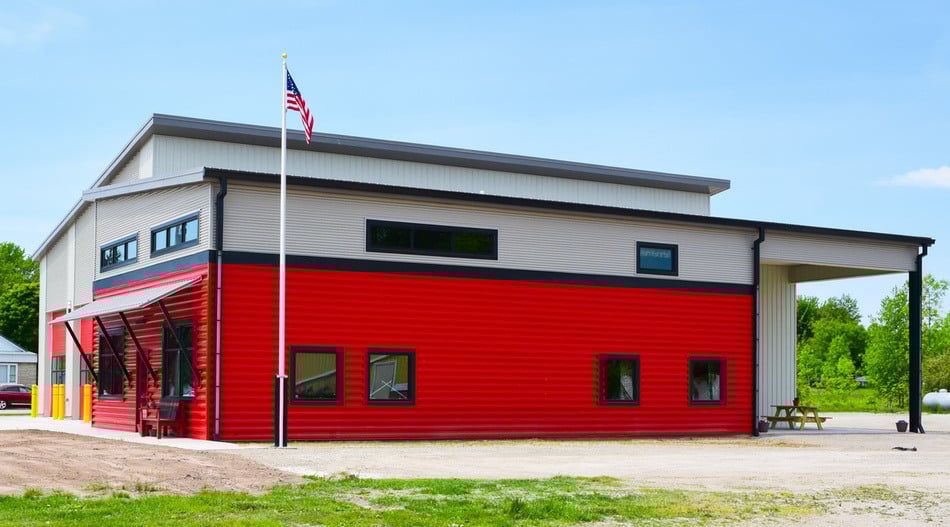

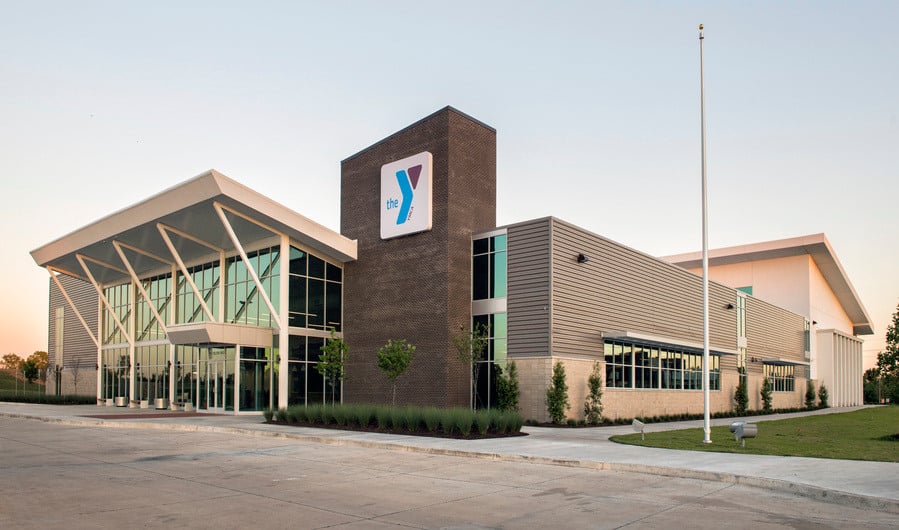

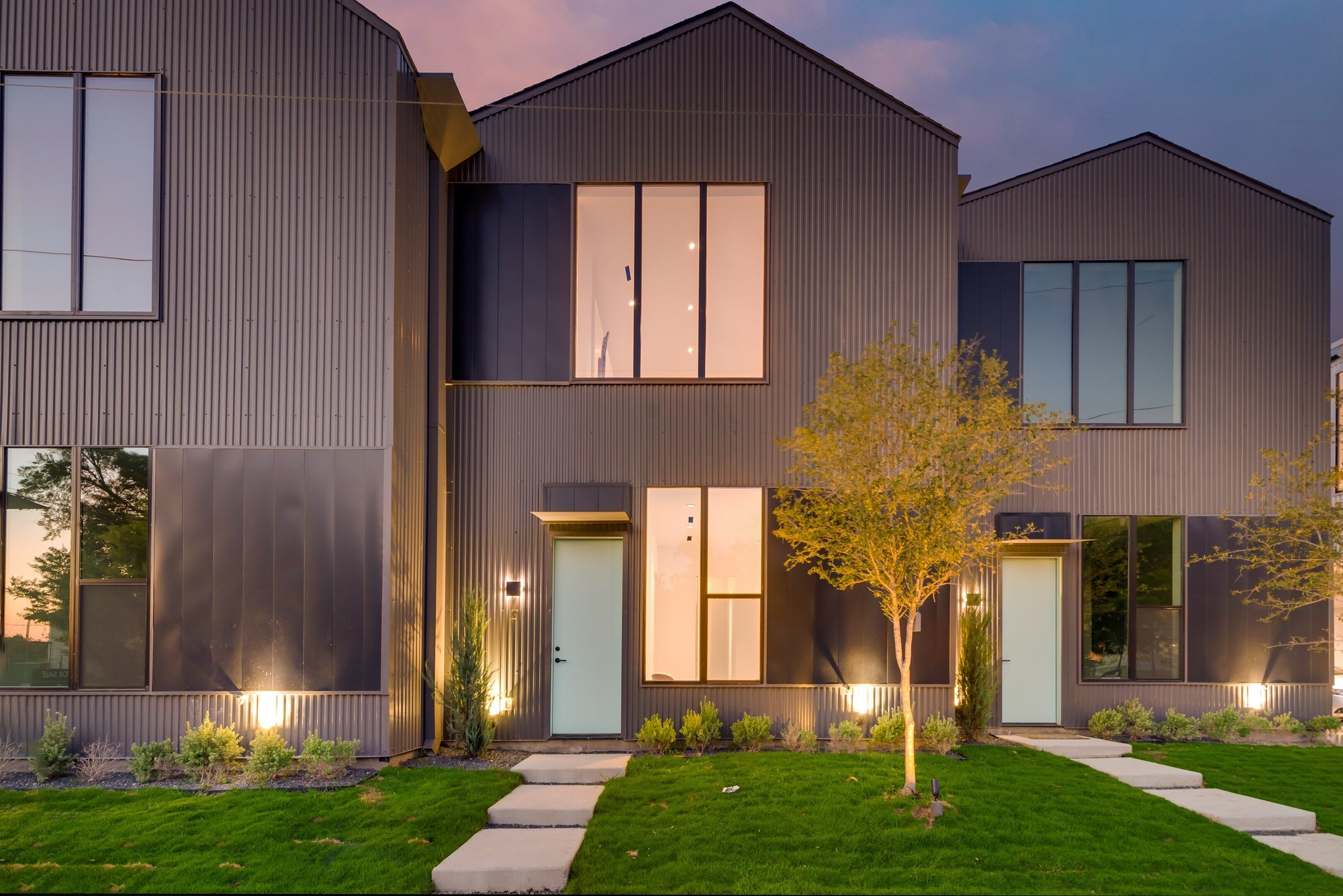

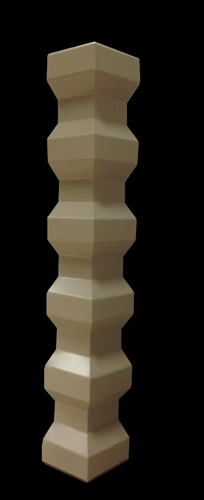

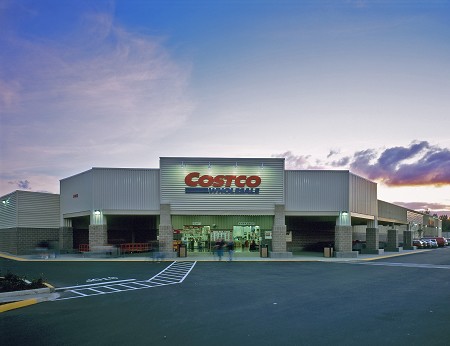

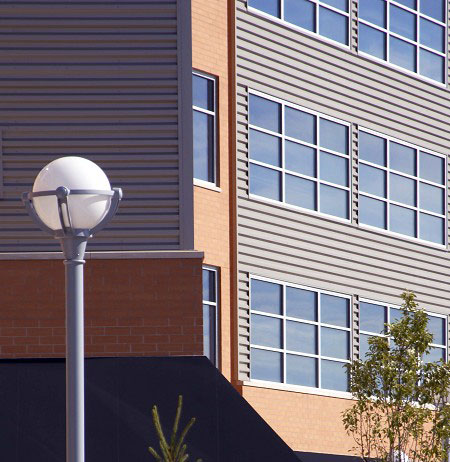

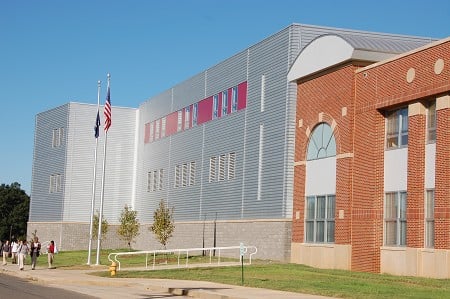

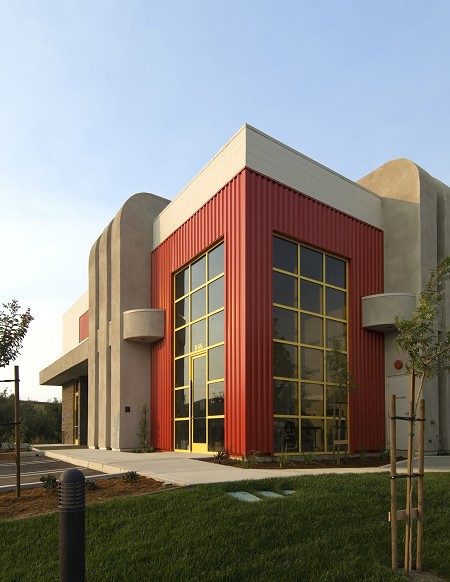

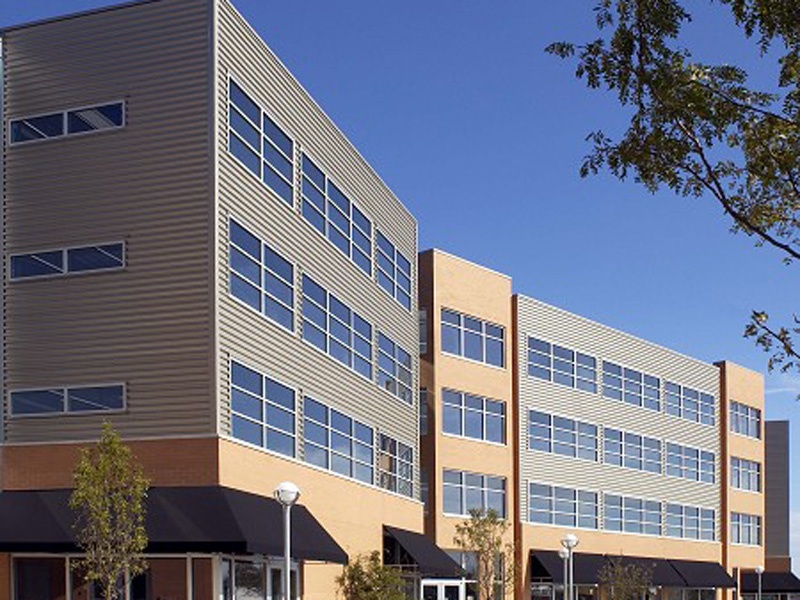

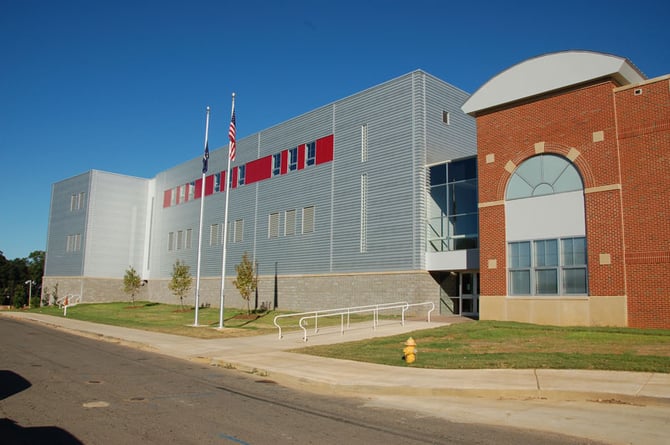

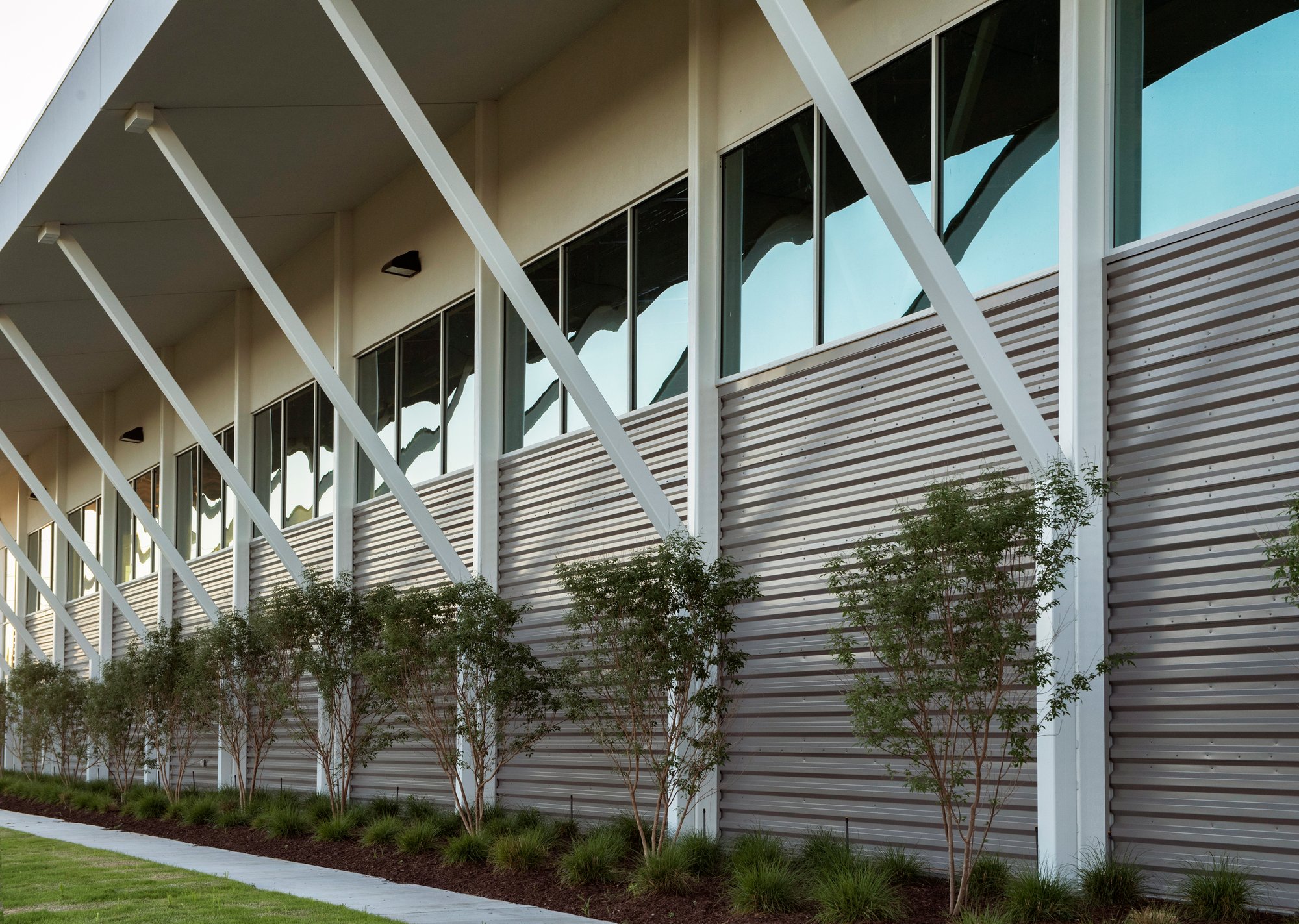

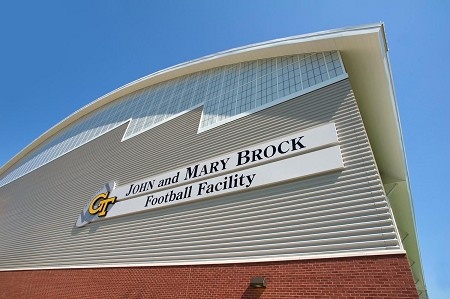

Mega-Rib is a 7.2 exposed fastener panel that provides optimum strength and spanning capabilities. Mega-Rib is a metal roof and wall panel that is equally well suited for industrial and commercial applications. Installed horizontally, Mega-Rib's bold ribs provide a hard to beat architectural statement.
| Details | |
|---|---|
| Minimum slope | 1:12 (tape sealant required for all slopes) |
| Adelanto standard coverage for 26 gauge panels | Standard 26 gauge coverage at Adelanto is 36". All other locations, standard 26 gauge coverage is 28.8". Please specify if 36" coverage is required |
| Manufacturing Facilities | Clinton, IL; Peachtree City GA; Adelanto, CA; Sunnyvale, TX |
| Note | Can be installed vertically or horizontally. |
| Note | Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection |
| Testing Data | |
|---|---|
| Fire Rating | Class A |
| Uplift Test | UL580 Class 90 |
| Air Infiltration | ASTM E1680 |
| Water Infiltration | ASTM E1646 |
| Class 4 Impact Resistance | UL2218 |
| Florida State Approval | 1832.8, 1747.6 |
| Fire Resistance | UL263 |
| Miami Dade Approval | |
| ICC-ES Approval | ESR-5896 |
| Testing Data | For available Test Data, Section Properties or Load Tables, please visit our downloads section. |
| Panel Options | |
|---|---|
| Coating | Kynar 500® (PVDF) |
| Substrate | - Standard 24 GA Galvalume® - Optional 22 GA Galvalume (Inquire. Possible minimum order and longer lead time may apply.) - Optional 26 GA Galvalume (Narrow Coverage) (Inquire. Possible minimum order and longer lead time may apply.) - Optional 26 GA Galvalume (Full Coverage Adelanto Only) (Inquire. Possible minimum order and longer lead time may apply.) - Optional 18 and 20 GA (Painted Galvalume) (Limited Availability) (Inquire. Possible minimum order and longer lead time may apply.) |
