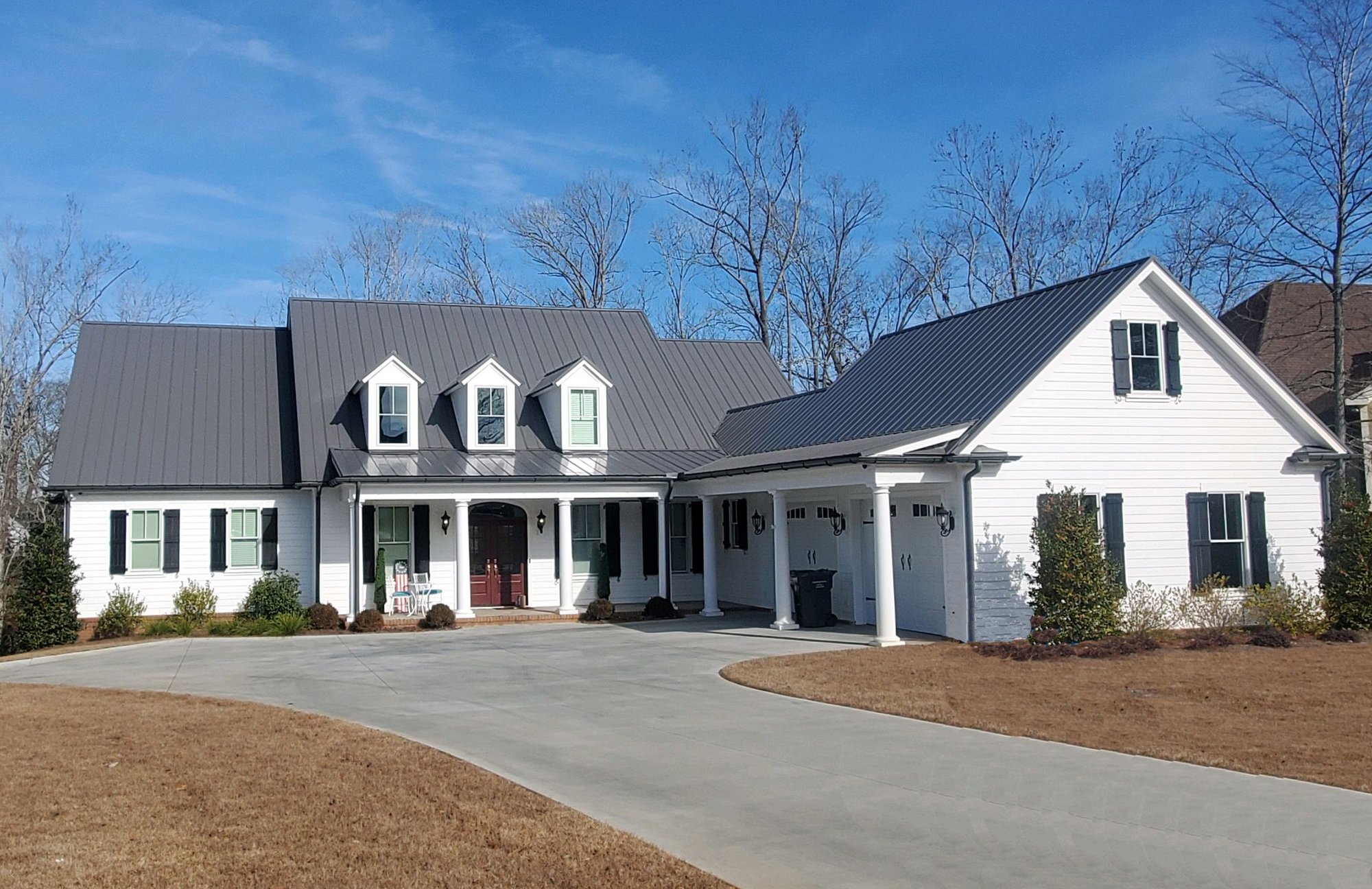

      5V_Charcoal-Residential

      5V Metal Roofing Panel

      5V-Crimp is a classic exposed fastened panel with a subtle ½" rib height, providing timeless appeal for residential and agricultural projects.

      5V Metal Roofing Panel

      Great for:

      roofs-icon
      ROOFS
      residential-icon
      RESIDENTIAL
      commercial-icon
      COMMERCIAL

      Homeowners across the country are discovering that 5V metal roofing not only adds value to their home but provides beauty as well. McElroy’s 5V panels are 24 inches wide and incorporate a classic design that adds beauty to any home. 5V is also commonly installed as an interior liner or accent panel.

      McElroy's 5V panel is available with fade and chalk resistant Kynar 500/PVDF coatings, which provides assurance that a roof retains its like-new beauty year-after-year.

      View Related Files
      Build a Submittal Package

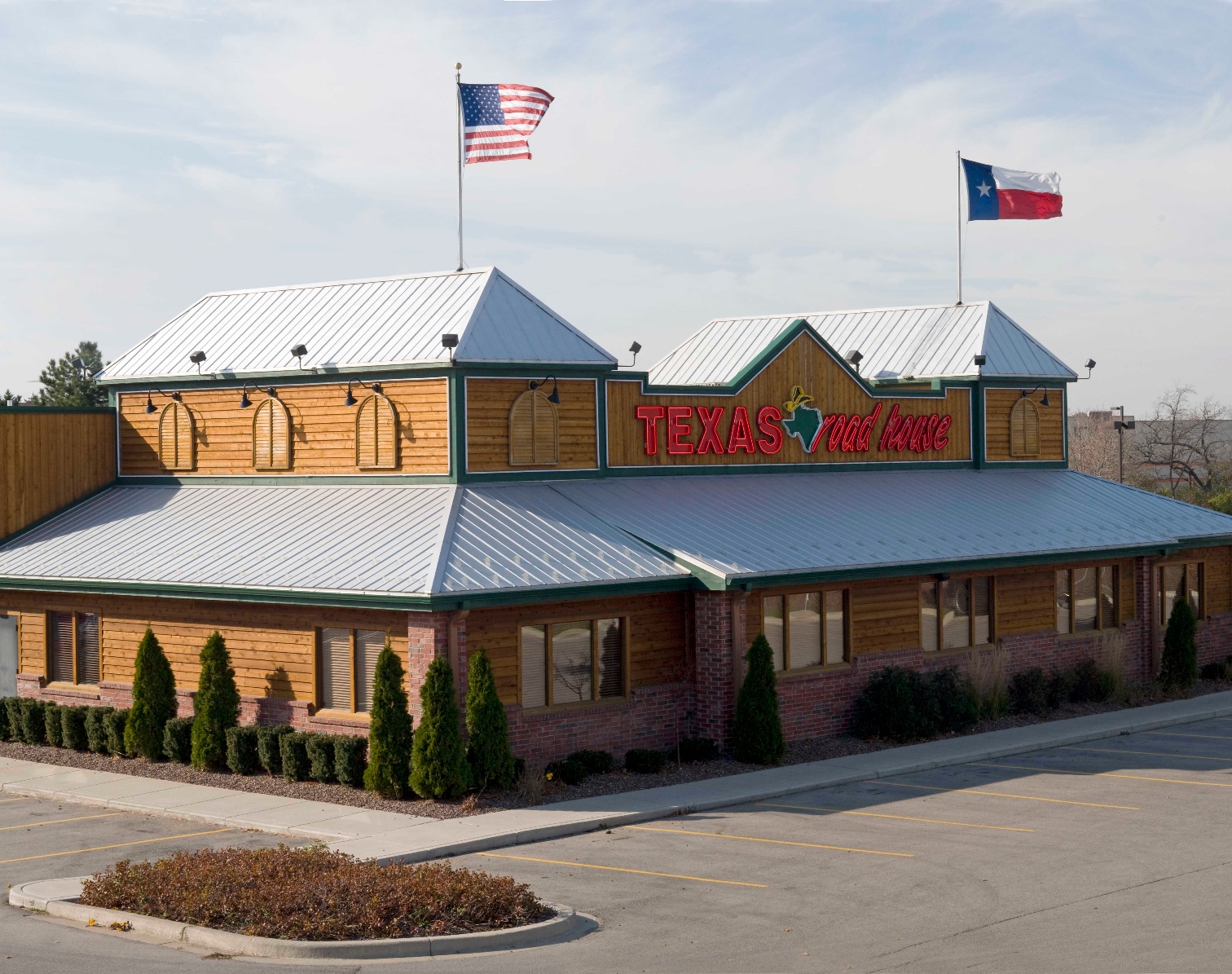

      Texas Road House - 5V-1
      5V_Charcoal-Residential

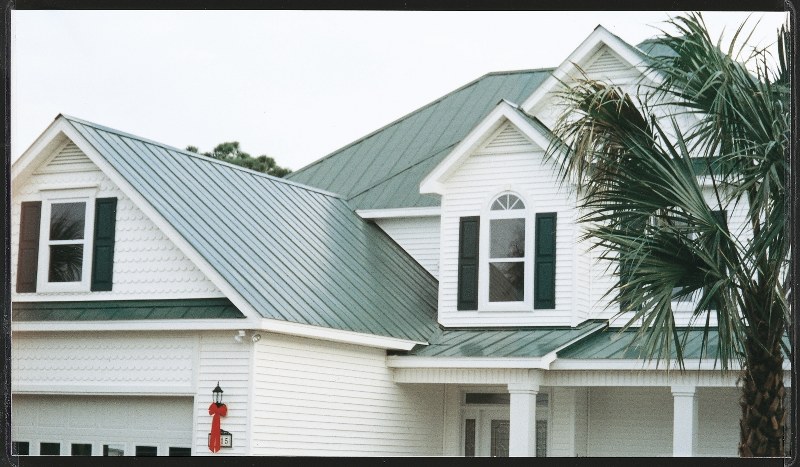

      5v Metal Roofing Home

      Renderings & Profiles

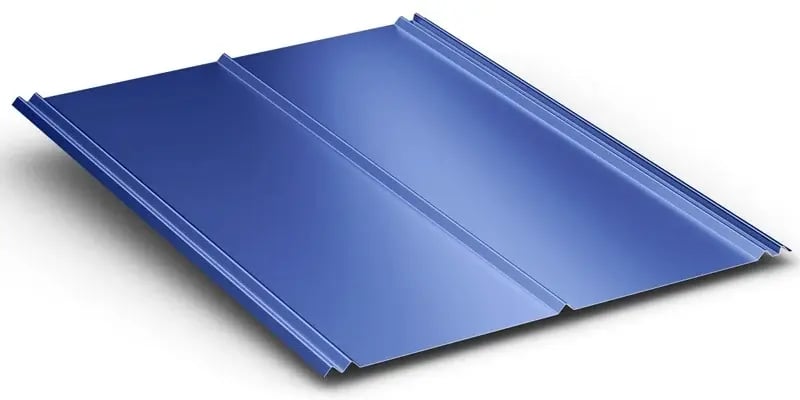

      5V-1

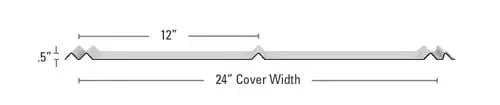

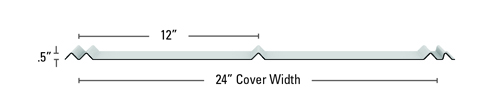

      5VDrawResized

      Specifications & Details

      Details

      Minimum slope (with sealant)

      3:12

      Installation

      Must be over solid decking

      Manufacturing Facilities

      Produced in Ashburn, GA; Lockhart, TX

      Note

      Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection

      Testing

      Fire Rating

      Class A

      Uplift Test

      UL580 Class 90

      Class 4 Impact Resistance

      UL 2218

      Fire Resistance

      UL263

      Florida State Approval

      1832.1

      Texas Department of Insurance

      RC-13

      Miami Dade Approval

      Testing Data

      For available Test Data, Section Properties or Load Tables, please visit our downloads section.

      Panel Options

      Coating

      Kynar 500®(PVDF)

      Substrate

      Standard 26 GA Galvalume®; 29 Ga. Galvanized in bare only
