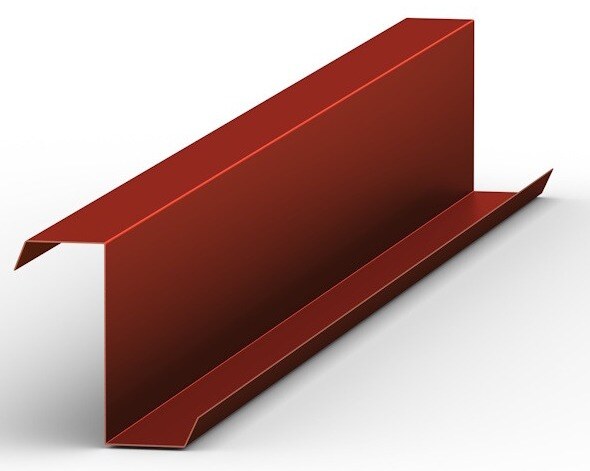

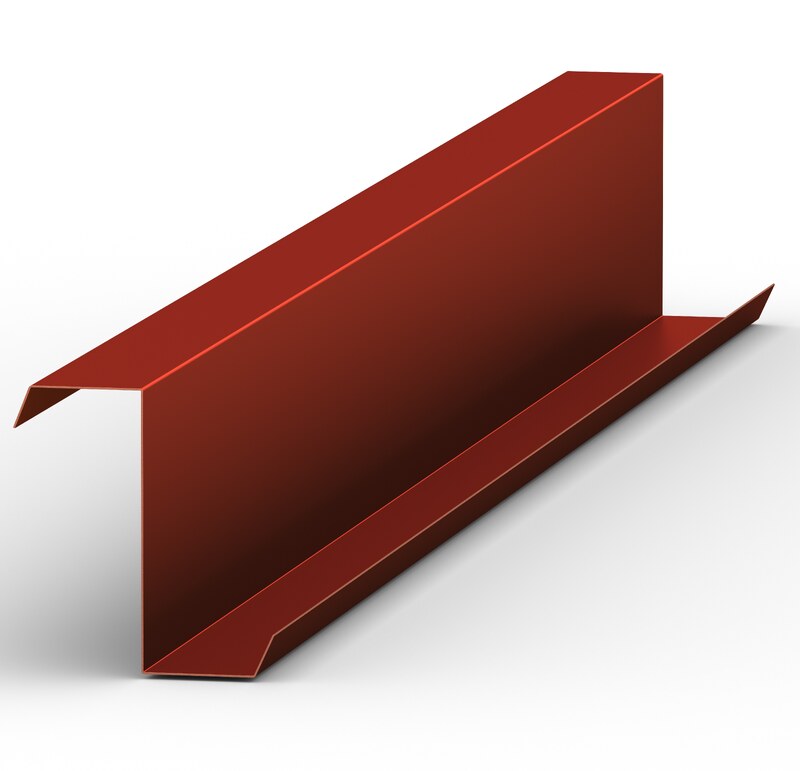

Zee purlins, shaped like the letter “Z,” are essential structural components in metal buildings, providing horizontal support for roof and wall panels. They help distribute loads, ensuring the stability and durability of the overall structure.
Zee Product Offering

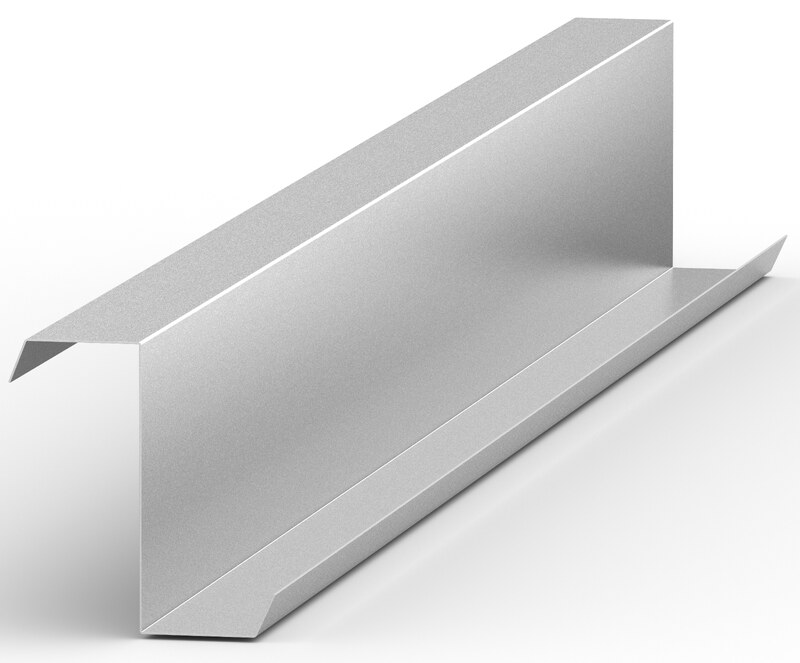

- Red oxide primed and galvanized finish.
- We also have the ability to pitch Zees at some locations.
- Custom lengths from 6’ to 50' (except our Bossier, LA facility which has a 45' max length)
- We offer a wide variety of standard and custom punch options to meet your specific project requirements.
- The chart below outlines our standard size and gauge options; however, additional sizes may be available.
Please consult your McElroy Metal representative to discuss custom sizing availability and lead time.

Standard Size & Gauges
4"-6" Web
4 " x 2" 16 & 14 Gauge
4 " x 2 1/2" 16 & 14 Gauge
4 " x 3" 16 & 14 Gauge
4 " x 3 1/2 16 & 14 Gauge
6 " x 2 1/2" 16 & 14 Gauge
8" Web
8 " x 2 1/2" 16, 14, & 12 Gauge
8" x 3" 16, 14, & 12 Gauge
8 " x 3 1/2" 14 & 12 Gauge
10-12" Web
10 x 2 1/2" 14 & 12 Gauge
10" x 3" 14 & 12 Gauge
10" x 3 1/2" 14 & 12 Gauge
12 " x 2 1/2" 14 & 12 Gauge
12 " x 3" 14 & 12 Gauge
12 " x 3 1/2" 14 & 12 Gauge
