Substructural
Substructural XL
Setting the new industry standard, McElroy Metal's Substructural XL components generate labor and material savings that boost sales revenue and enhance bottom-line performance.
Substructural XL Product Offering
- 10, 12, 14 and 16 gauge members with webs up to 24" enable value engineering and optimization opportunities.

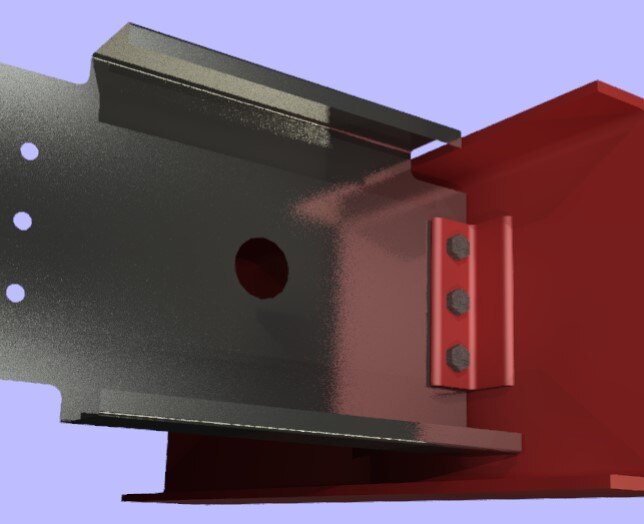

- Factory flange notching reduces costly secondary fabrication and/or field torching and cutting. Supports top and/or bottom flange as well as leading and/or trailing end.
- Custom lengths from 6’ to 50' (except our Bossier, LA facility which has a 45' max length)

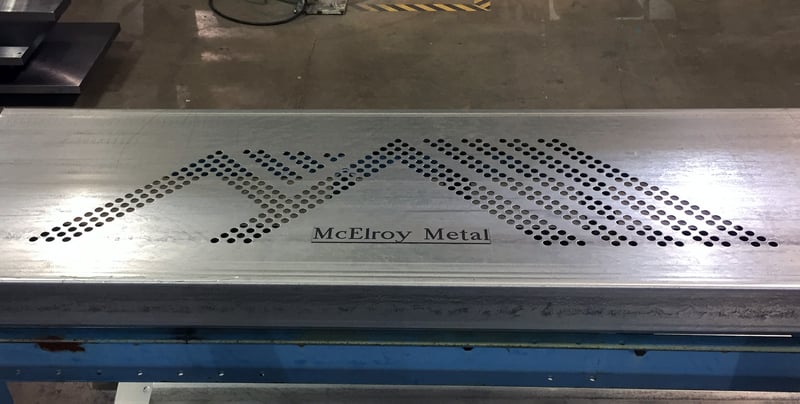

- Flexible punching capabilities
reduces costly field drilling.- Standard holes from 7/32" to 1 3/16".
- Slot punching from 5/8" x 3/4" to 7/16" x 2".
- 2" and 3" hole punch to accommodate sprinklers, conduit
other pass-through utilities.and
Please consult your McElroy Metal representative to discuss custom sizing options and lead time.
