Hat Channel
Hat channels, named for their distinctive “hat” shape, are used in wall and ceiling framing to distribute loads efficiently and provide a secure attachment point for metal panels and insulation. Their design enhances structural rigidity and overall system performance.
Hat Channel Product Offering:

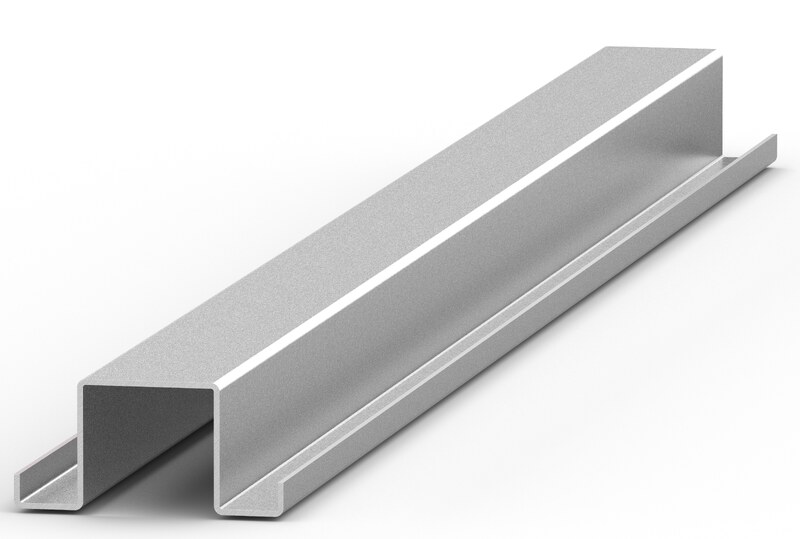

- 1 1/2" x 3" 16, 18 & 20 Gauge Galvanized

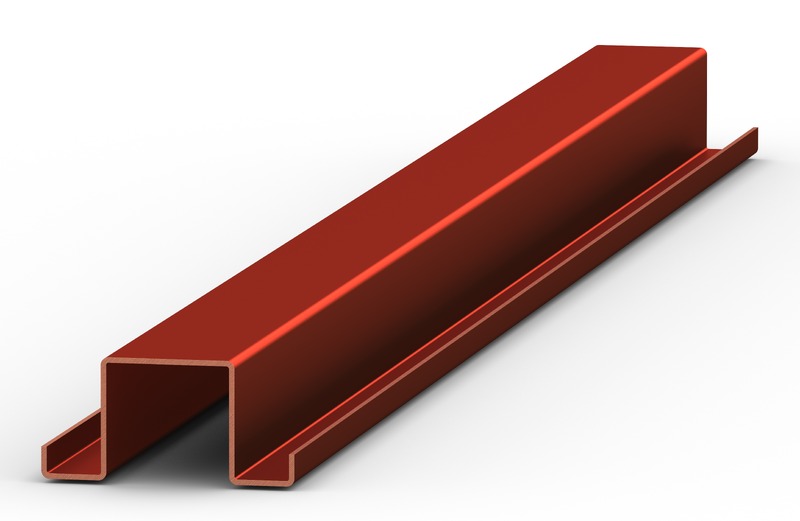

- 3" x 1"; 6" x 1" and 9" x 1" in 14 Gauge Red Oxide Primed
- 6" x 1" and 9" x 1" in 14 Gauge Galvanized
- Custom lengths from 3’ to 30'
Please consult your McElroy Metal representative confirm lead time and availability.
