Substructural

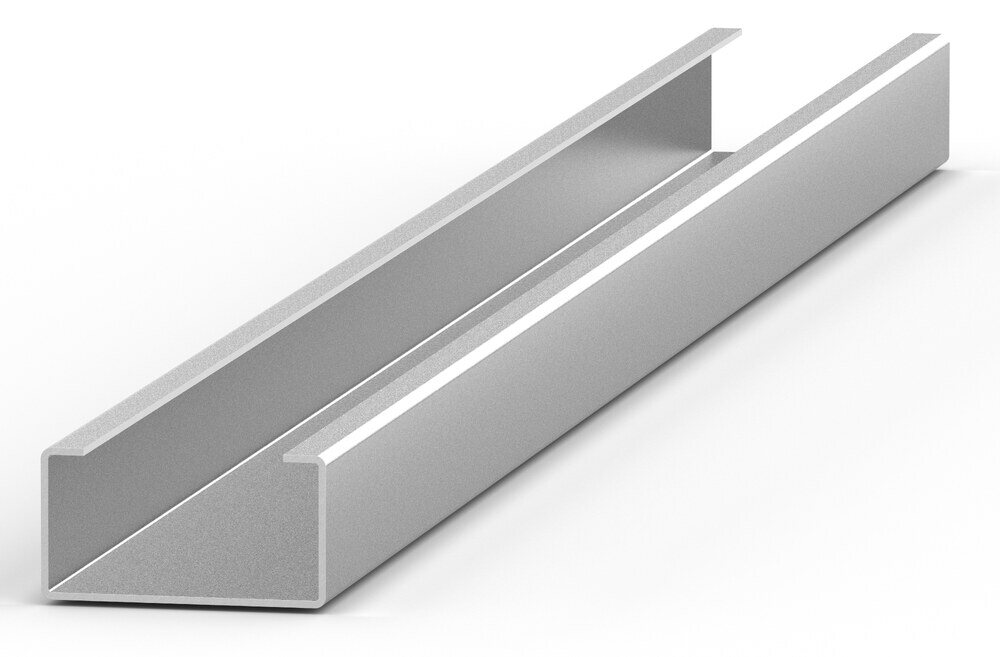

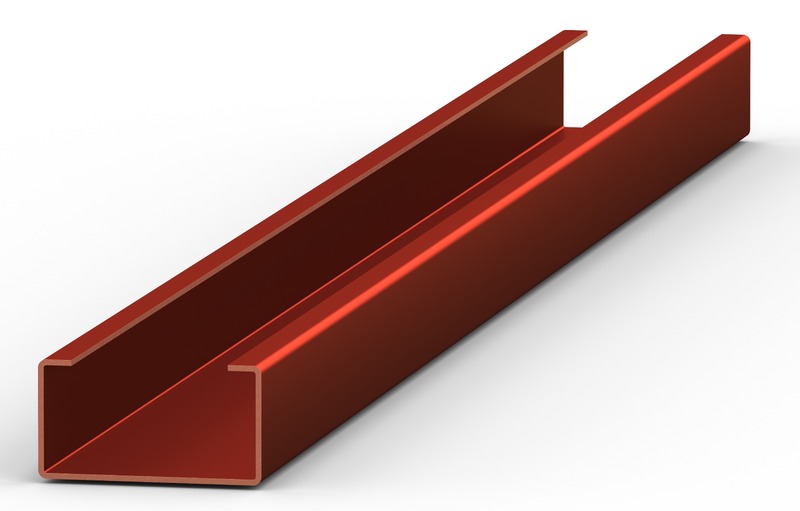

Framing Channel
Framing channel is a durable and versatile structural component used for bracing, support, and framework in metal building construction. Its U-shaped design provides strength and stability, making it ideal for securing wall studs, headers, and various framing applications.
Framing channel is produced in our Houston, TX facility,
Framing Channel Product Offering:
- 2 1/2” x 1 3/8” in 16 Gauge Galvanized
- Custom lengths from 3’ to 30'
Please consult your McElroy Metal representative to confirm availability and lead-time.
