Eave Strut

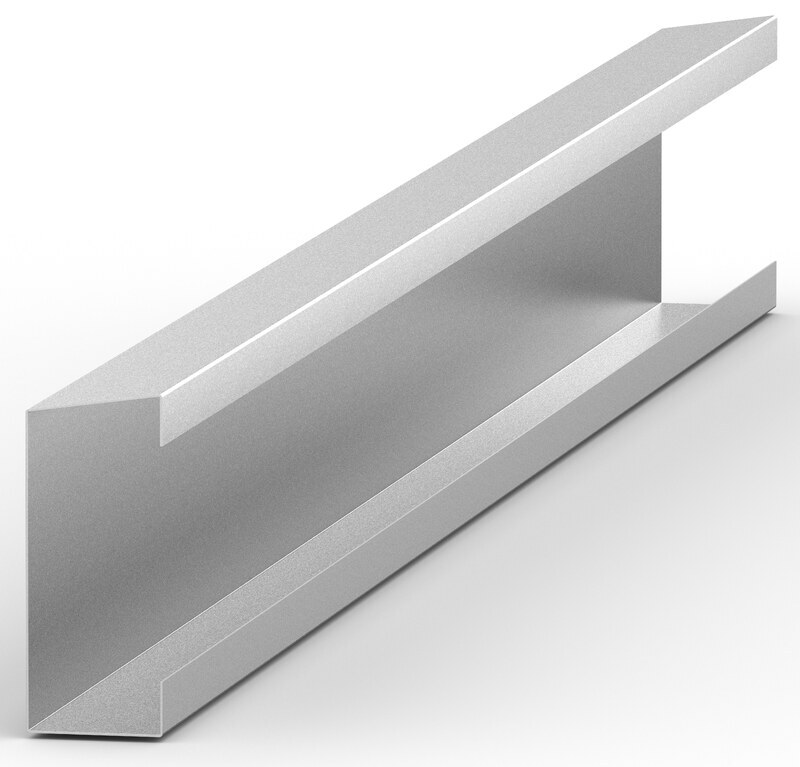

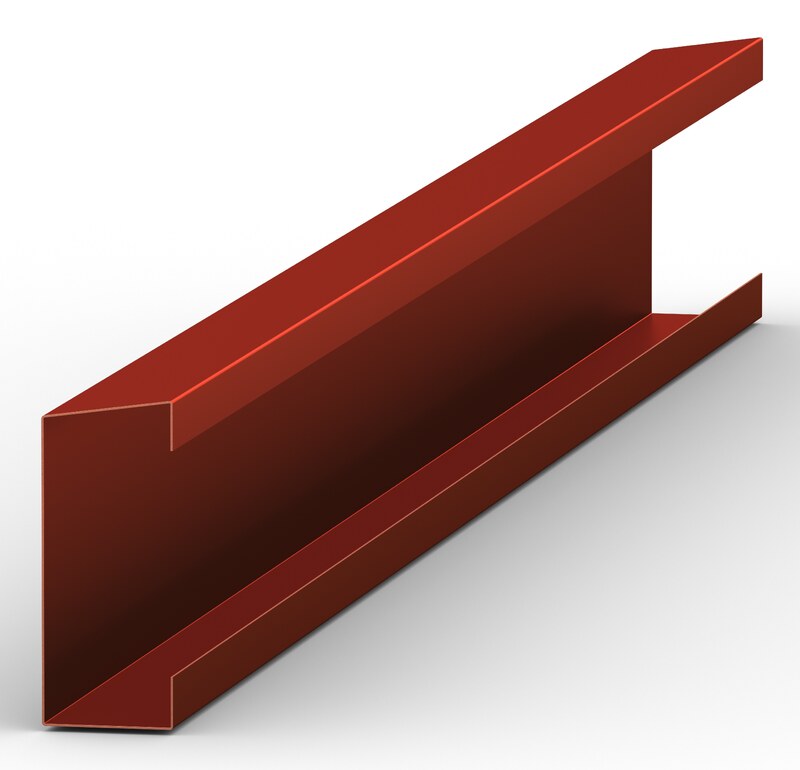

Eave struts are structural members positioned at the transition between the roof and walls, providing critical support where the two meet. Designed for use in both single and double slope applications, they enhance the stability of the building by reinforcing the eave connection.
Eave Strut Product Offering:
- 7", 8" or 10" web with 4" flanges; however, additional sizes may be available.
- 14 gauge red oxide primed and galvanized finish
- Custom lengths from 6’ to 50' (except our Bossier, LA facility which has a 45' max length)
Please consult your McElroy Metal representative to discuss custom sizing requests and lead time.
