Angle

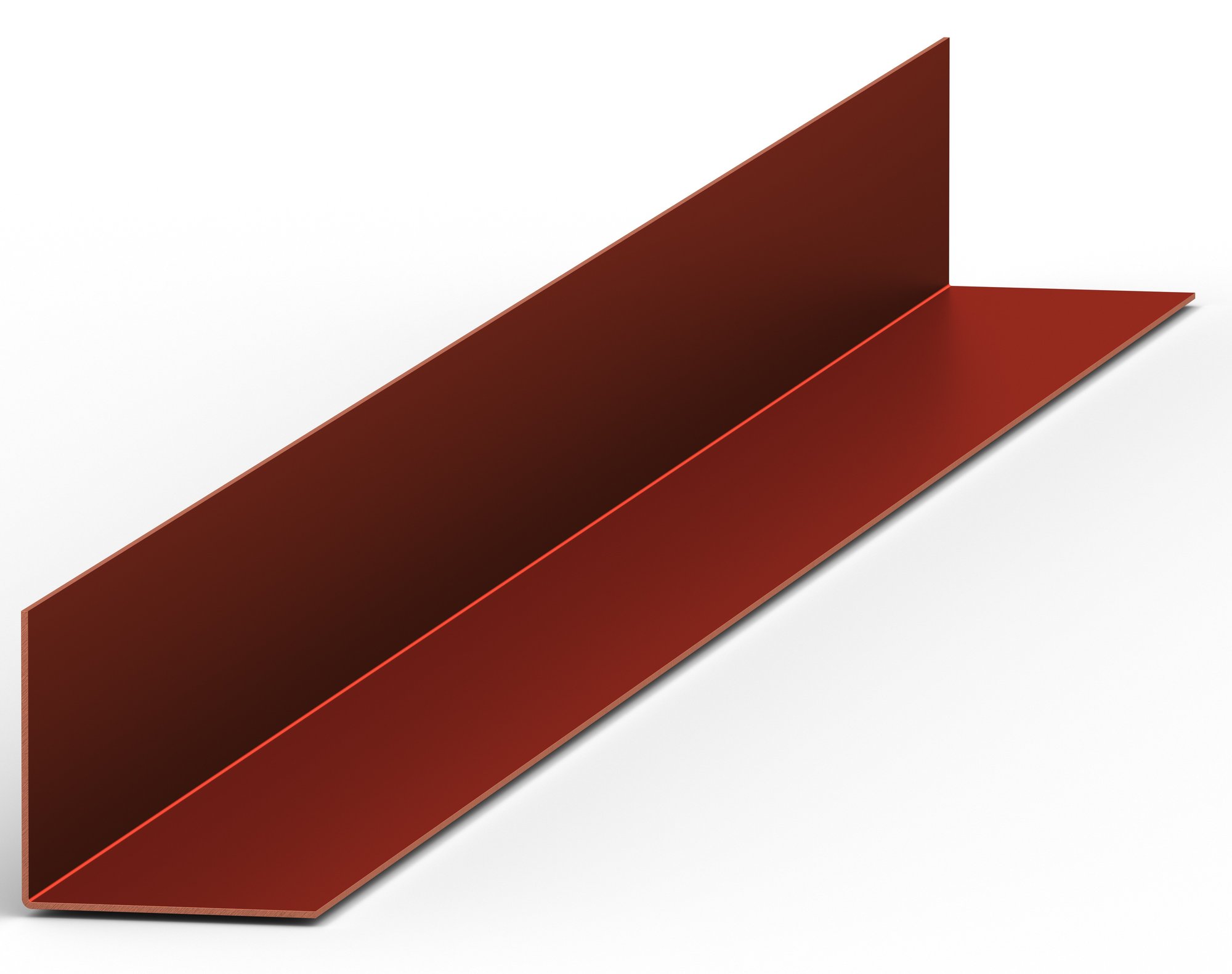

Angles, with their L-shaped profile, provide additional strength and stability in metal building framing. Commonly used for connections, bracing, and reinforcement, they help enhance the integrity and durability of structures.
Angle Product Offering:
-
2" x 2"; 3" x 3" and 4" x 2" in both red oxide primed and galvanized finish.
-
Custom lengths from 3’ to 30'
Please consult your McElroy Metal representative to discuss lead time.
