Mirage II
Mirage II
Great for:
WALLS
ROOFS
RESIDENTIAL
COMMERCIAL

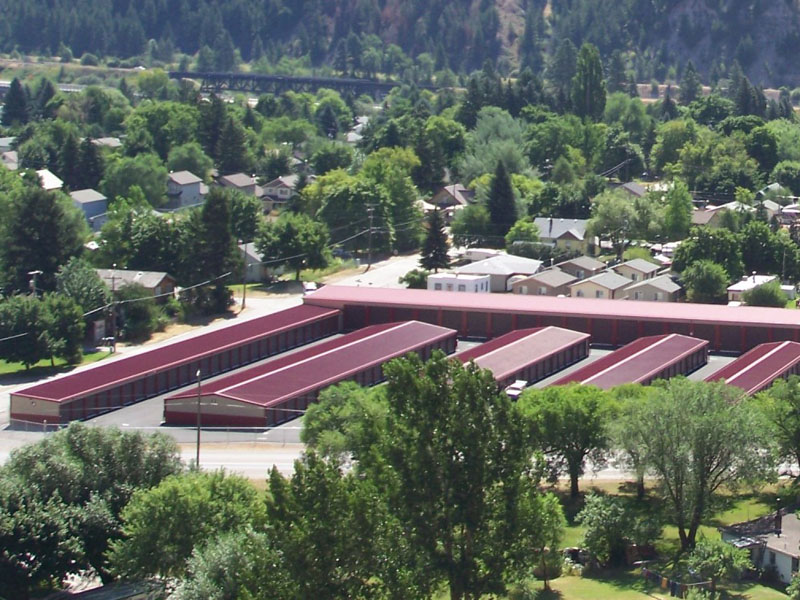

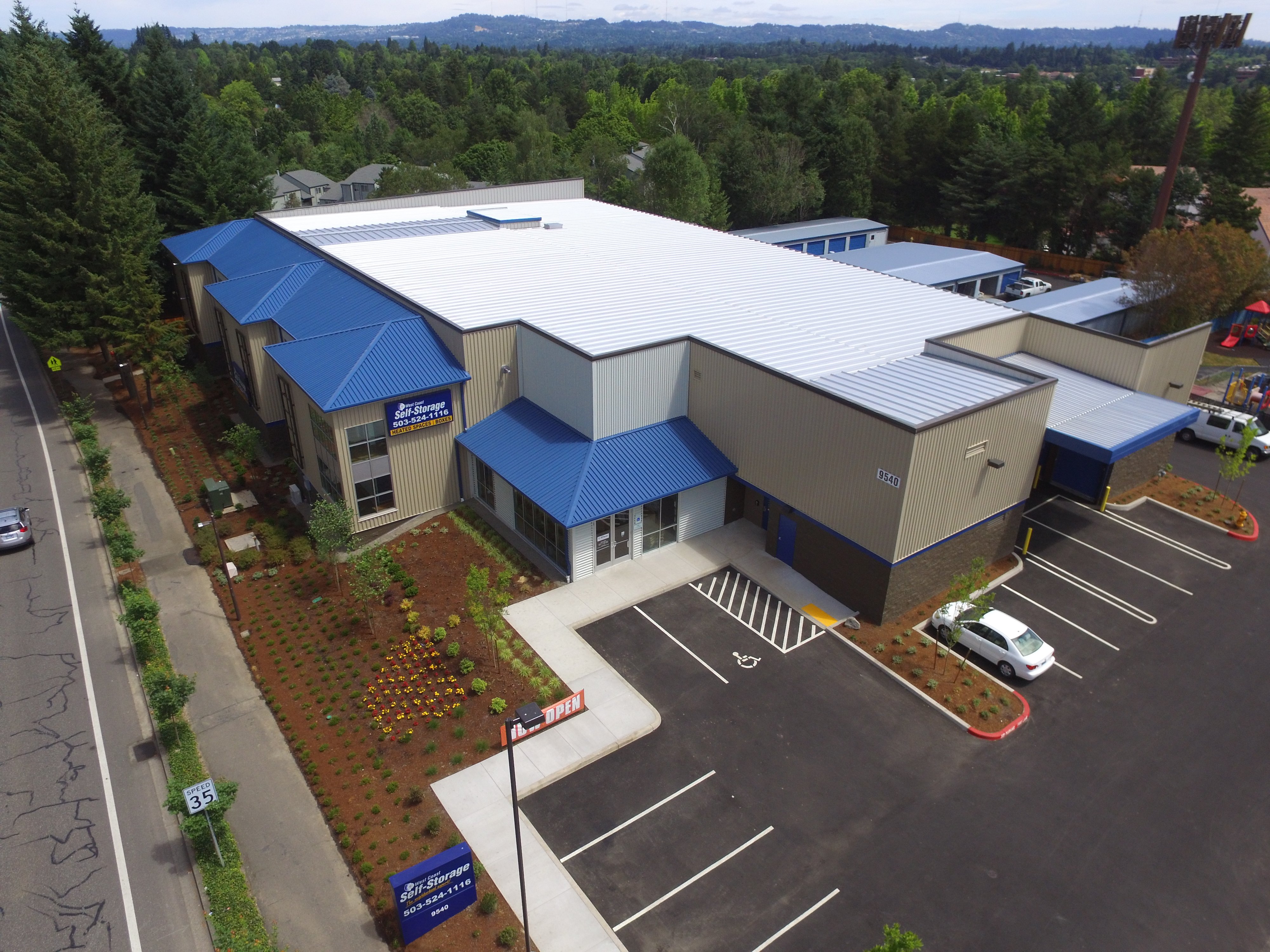

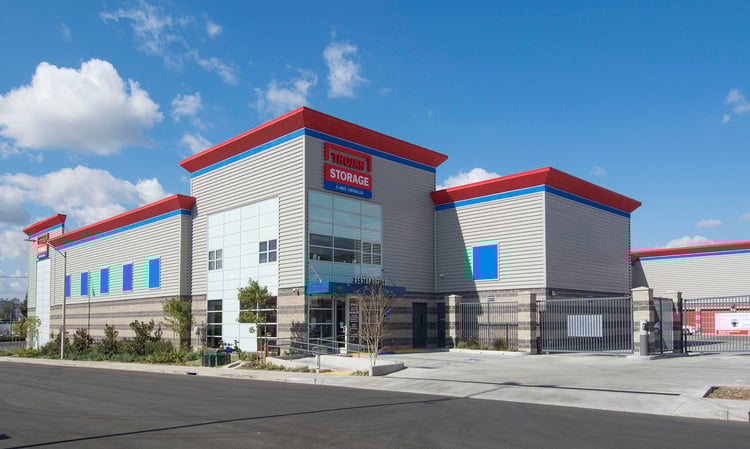

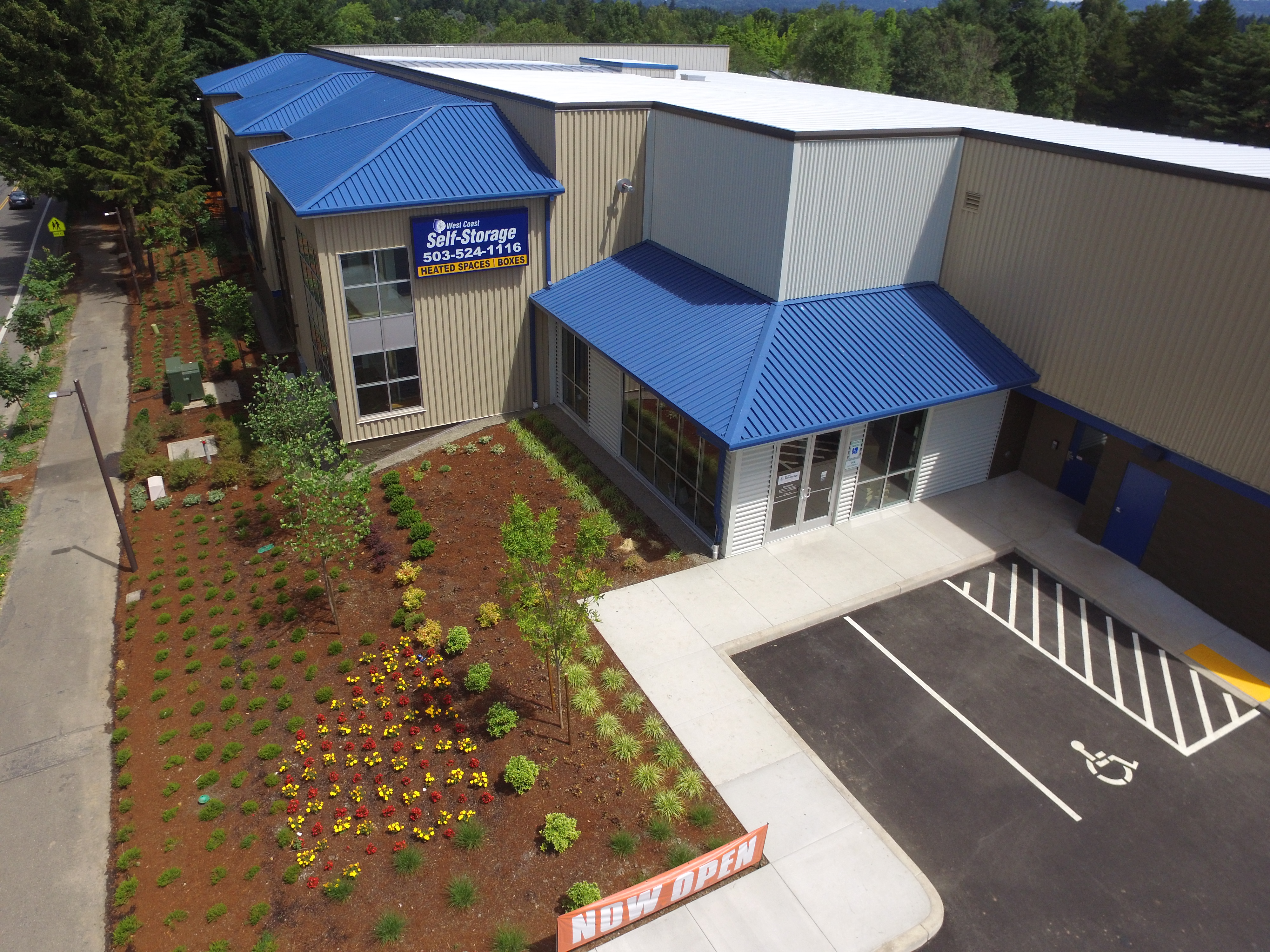

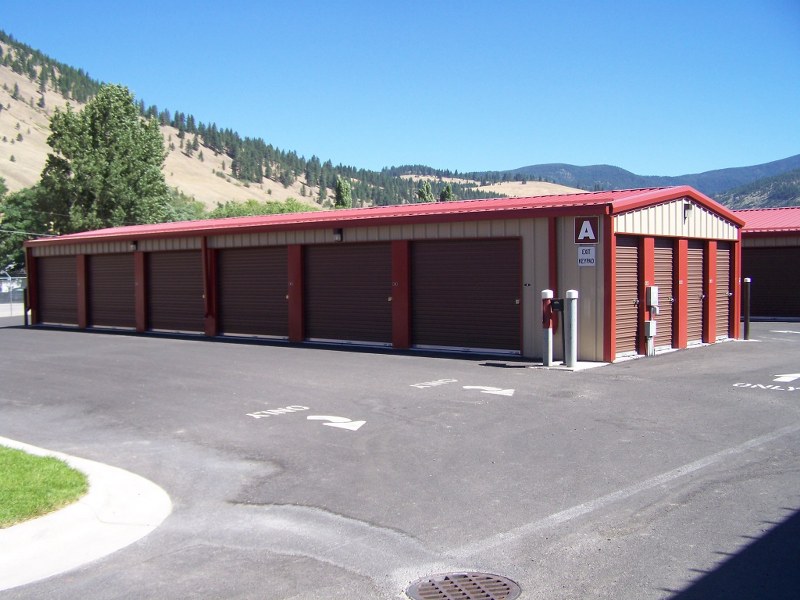

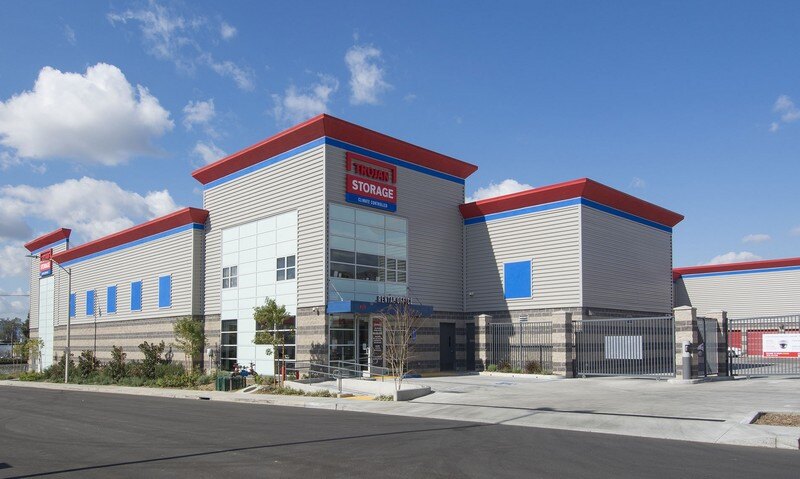

Mirage II features a 1 3/4 inches high seam and can be installed over solid decking or substructural members. Factory-applied sealant is required for slopes that are less than 3:12; however, Mirage II can be installed on slopes down to 1/4:12. Mirage II is most commonly utilized in the mini-storage industry where shorter length panels are required and where specialty contractors have developed details and systems to effectively use Mirage in lower slope applications.

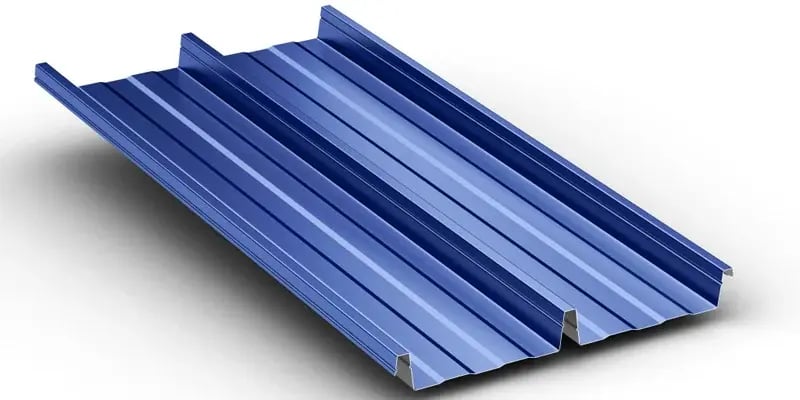

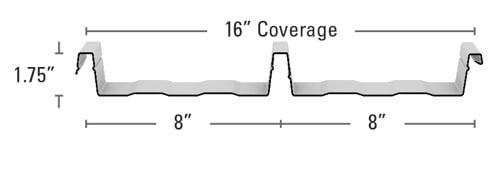

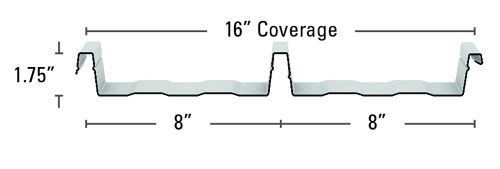

Renderings & Profiles
Specifications & Details
Details
Installation
Can be installed over solid deck or open framing
Manufacturing Facilities
- Mirage II is produced in Adelanto, CA and Ashburn, GA
Notes
- Factory-applied sealant is required on slopes less than 3:12
- Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
Mirage
- Fire Rating: Class A
- Uplift Test: UL580 Class 90, ASTM E1592
- Air Infiltration: ASTM E1680
- Water Infiltration: ASTM E1646
- Class 4 Impact Resistance: UL 2218
- Florida State Approval: 1747.7, 1832.9
- IAPMO Approval: ER-0270
- Fire Resistance: UL 263
Mirage II
- Fire Rating: UL790 Class A
- Uplift Test: UL580 Class 90
- Impact : UL 2218 Class 4
Testing Data
For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options
Panel width
16"
Panel configurations
Ribbed
Coating
Kynar 500® (PVDF)
Substrate
Standard 24 GA Galvalume®
Details and Components Gallery

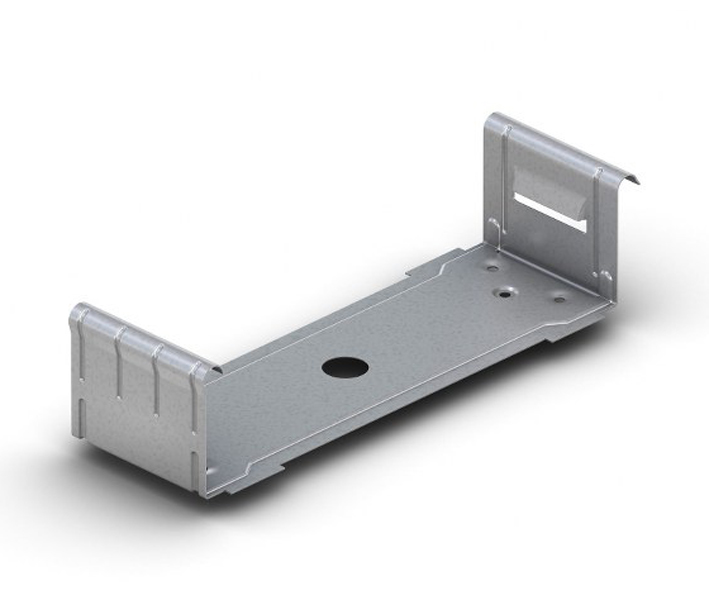

Mirage II Clip

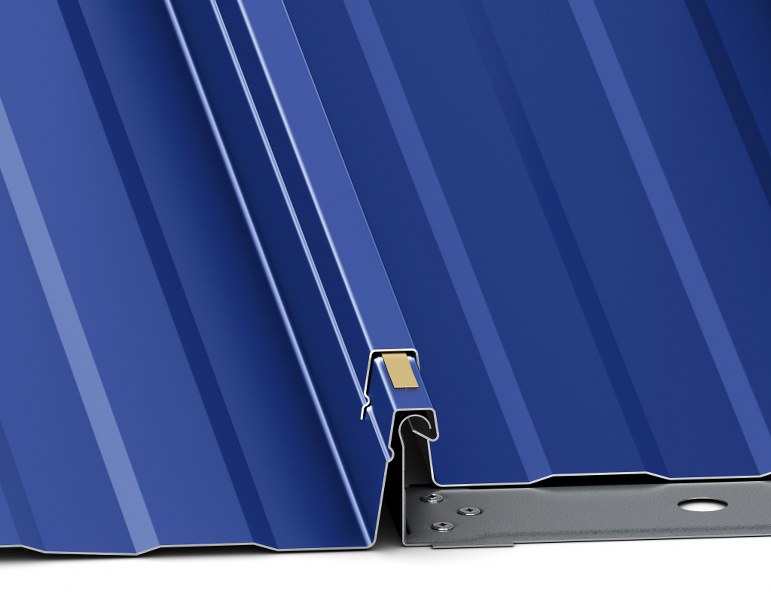

Mirage II Seam
Mirage II Clip
Mirage II Seam
module.product Mirage/Mirage II
Related Files
Specifications
CAD Drawings
- Mirage II Eave Detail
- Mirage II Eave with 5" Gutter Detail
- Mirage II Eave with 7" Gutter Detail
- Mirage II Floating Hip Detail
- Mirage II Floating Ridge Detail
- Mirage II Fixed Hip Detail
- Mirage II Fixed Ridge Detail
- Mirage II Hi-Side Tie-In Detail
- Mirage II High Eave 7" Detail
- Mirage II High Eave 5" Detail
- Mirage II Rake End 5" Detail
- Mirage II Rake End 7" Detail
- Mirage II Rake End Tie-In Detail
- Mirage II Rake Start 5" Detail
- Mirage II Rake Start 7" Detail
- Mirage II Rake Start Tie-In Detail
- Mirage II Sculptured Eave Detail
PDF Drawings
- Mirage II Eave Detail
- Mirage II Eave with 5" Gutter Detail
- Mirage II Eave with 7" Gutter Detail
- Mirage II Floating Hip Detail
- Mirage II Floating Ridge Detail
- Mirage II Fixed Hip Detail
- Mirage II Fixed Ridge Detail
- Mirage II Hi-Side Tie-In Detail
- Mirage II High Eave 7" Detail
- Mirage II High Eave 5" Detail
- Mirage II Rake End 5" Detail
- Mirage II Rake End 7" Detail
- Mirage II Rake End Tie-In Detail
- Mirage II Rake Start 5" Detail
- Mirage II Rake Start 7" Detail
- Mirage II Rake Start Tie-In Detail
- Mirage II Sculptured Eave Detail
Color Charts
Brochures/Flyers
Finish and Substrate Warranties
Metal Panel Care & Maintenance
Weathertightness Warranties (select standing seam panels only)
Product Data Sheets
Product & Trim Information Books
English Installation Manuals
Good Design Practices
Technical Bulletins / Panel Load Tables w/Section Properties
Get A Submittal Package
-
Mirage IICustomize (Recommended) Download All
Customize your submittal package Mirage II
General Product and Warranty Information
Panel Load Tables w/Section Properties and Testing
Safety Data and Material Safety Data Sheets
Request
Samples & Color Charts
Request physical samples and color charts. All items will be sent out via UPS ground unless otherwise specified.
Shop Drawing Service
Running short of time to complete your own shop drawings? McElroy Metal can help. Click the button below to provide us some basic information and we’ll be in touch soon to discuss your project specifics.
Download Shop Drawings
If you’re creating your own shop drawings, click the button below to gain full access to our CAD and PDF Files.
Find a Distributor / Contractor Near You
Whether you’re building a new home or planning renovations, a metal roof can deliver long-term cost savings and comfort. To explore your options and find the product that meets your aesthetic and budgetary needs, contact a McElroy Metal distributor or contractor in your area today. We can’t wait to help make your dream home a reality.
