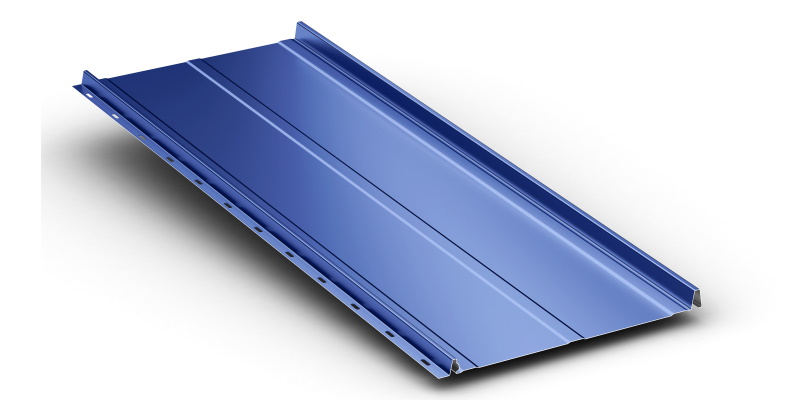

Meridian Snap Together Metal Roofing
Meridian Snap Together Metal Roofing
Great for:
WALLS
ROOFS
RESIDENTIAL
COMMERCIAL

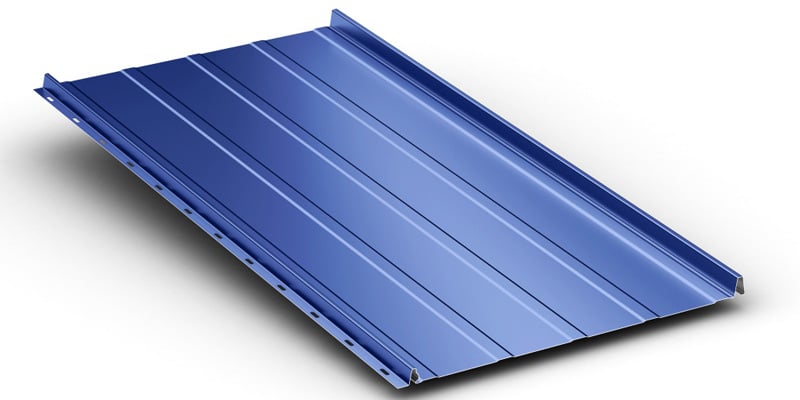

Meridian has it all! An aesthetically pleasing, snap-together, standing seam roof panel that is economical and easy to install. With no need for clips, Meridian panels are simply attached to the roof deck with pancake head fasteners. Equally well-suited for commercial and residential applications, Meridian is always an excellent choice!
McElroy Metal provides factory eave notching on Meridian standing seam panels.
Helpful Videos
Meridian Residential Application
Meridian Trim Details
Recommended Tools
Meridian Installation Animation

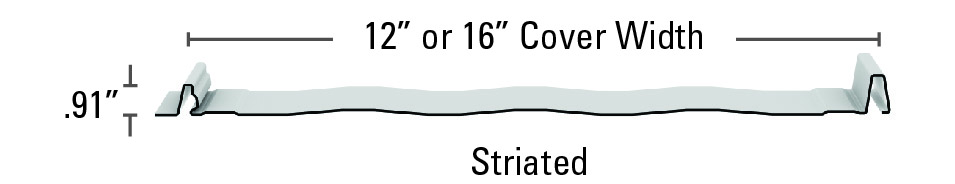

Renderings & Profiles
Specifications & Details
Details
Factory formed eave notch
Available upon request
Minimum slope
3:12
Installation
Must be over solid deck
Manufacturing Facilities
Clinton, IL; Peachtree City, GA; Adelanto, CA; Sunnyvale, TX
Note
Oil Canning is a natural occurrence in metal panels and is not cause for panel rejection
Testing
Fire Rating
Class A
Air Infiltration
ASTM E1680
Water Infiltration
ASTM E1646
Class 4 Impact Resistance
UL 2218
Texas Department of Insurance Approval
Evaluation RC-34
Florida State Approval
2358.1
Testing Data
For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options
Panel width
12" and 16"
Panel configurations

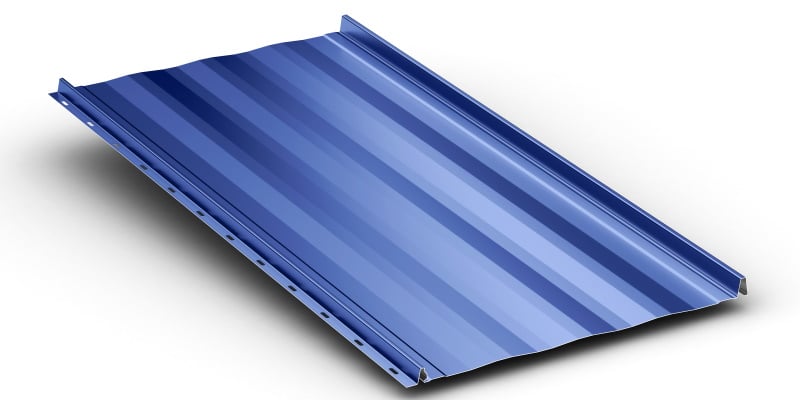

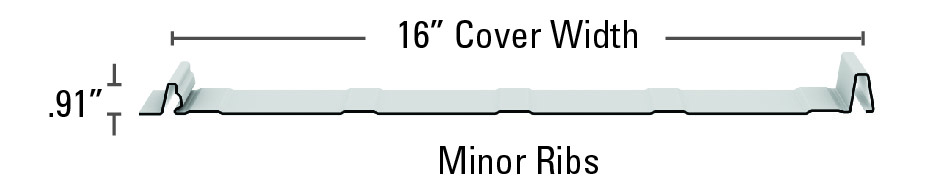

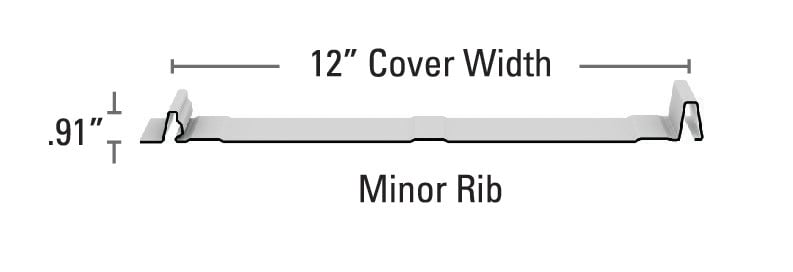

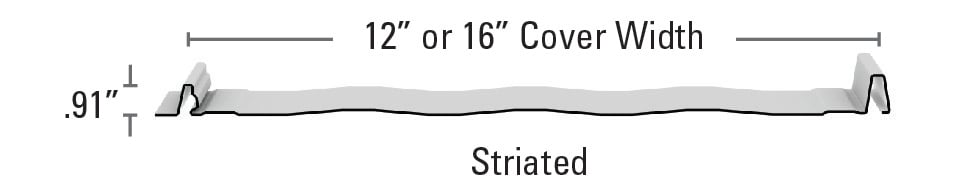

- 16" Minor Ribs or Striated

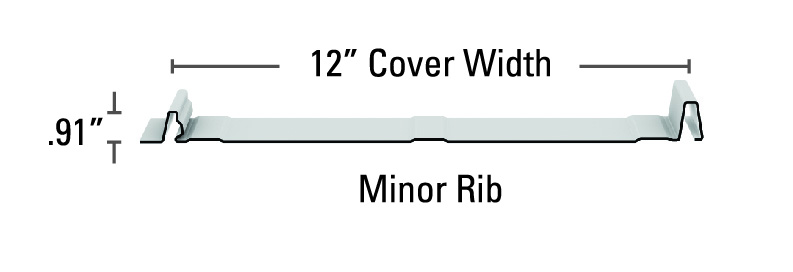

- 12" Minor Ribs or Striated
Coating
Kynar 500® (PVDF)
Substrate
- Standard 26 GA Galvalume® 16" only
- Standard 24 GA Galvalume® 12" and 16"
Details and Components Gallery

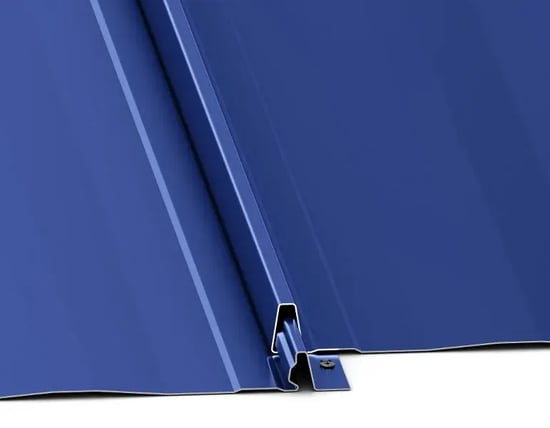

Seam Detail

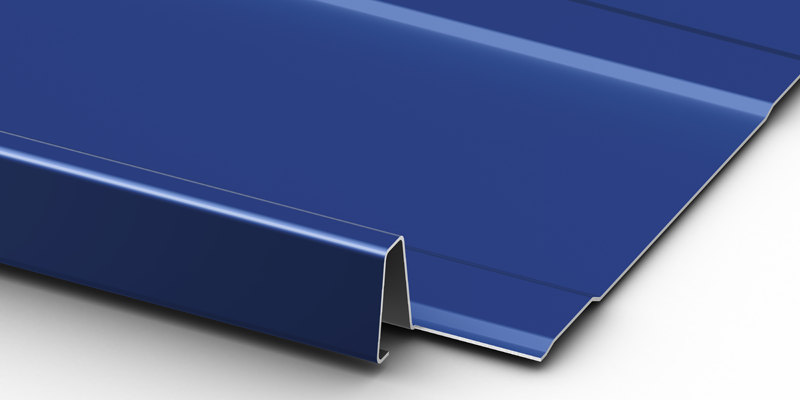

Factory Eave Notch

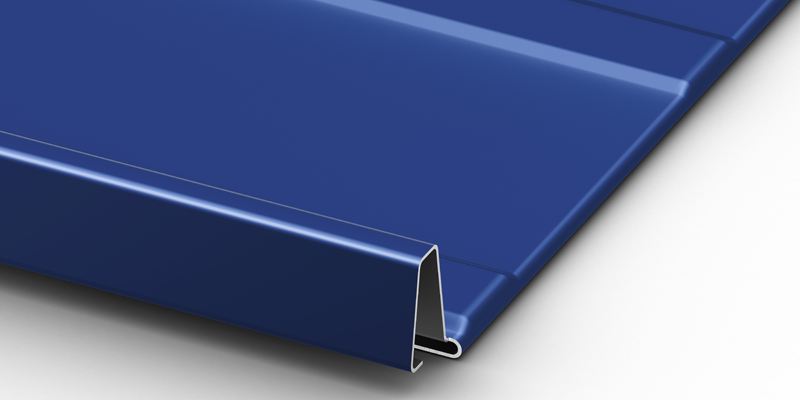

Eave Notch Folded in Field
Seam Detail
Factory Eave Notch
Eave Notch Folded in Field
