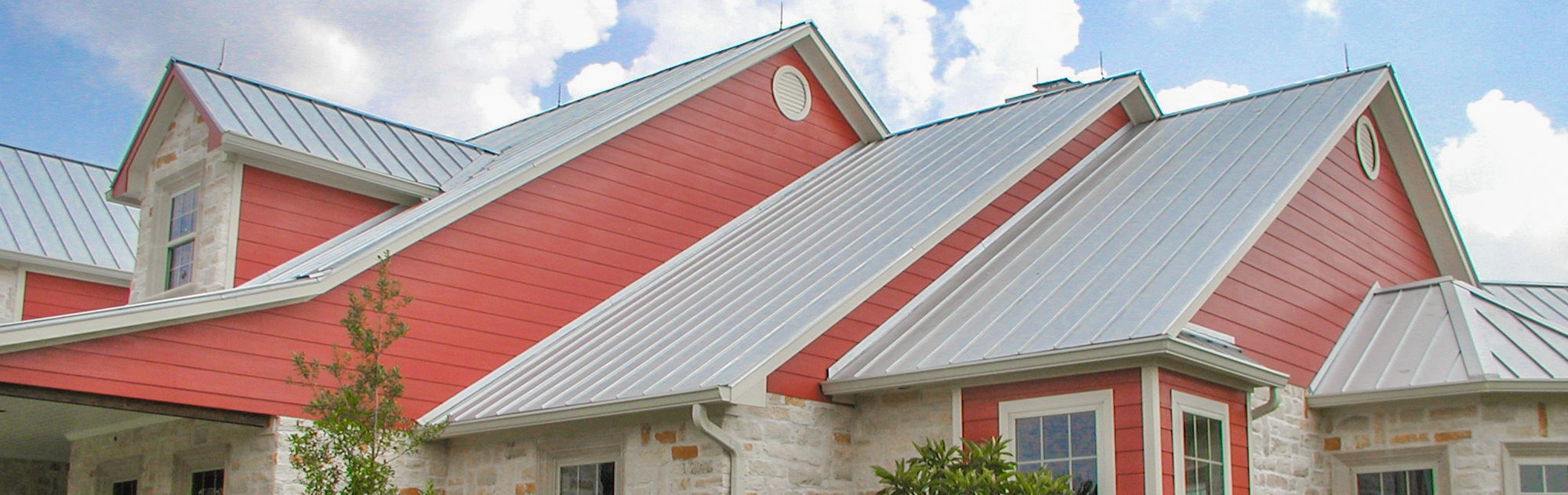

      Instaloc Ranch house Fulshear 009 High res final

      Instaloc Snap Lock Standing Seam Panels

      InstaLok is a snap-together standing seam panel with a 1¾" rib height, designed for fast installation and a clean architectural finish.

      A Snap-Together Standing Seam System

      Great for:

      walls-icon
      WALLS
      ROOFS
      ROOFS
      RESIDENTIAL
      RESIDENTIAL
      COMMERCIAL
      COMMERCIAL

      Instaloc is a snap-together standing seam system that features a 1” seam and is installed with concealed clips. Instaloc is designed to be used with solid decking and the low profile seam makes the panel an excellent option for light commercial and residential applications.

      View Related Files
      Build a Submittal Package

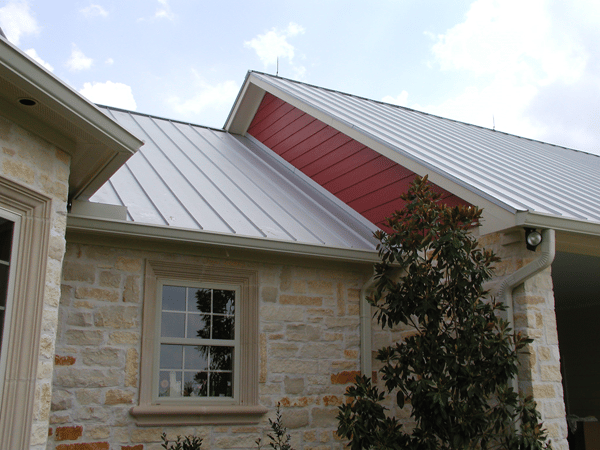

      Ranch-house-Fulshear-008-sized
      Ranch-house-Fulshear-010-sized

      Renderings & Profiles

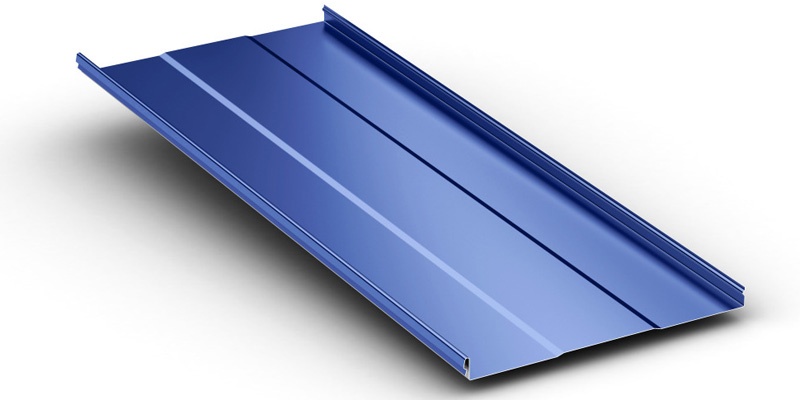

      Instaloc Rendering

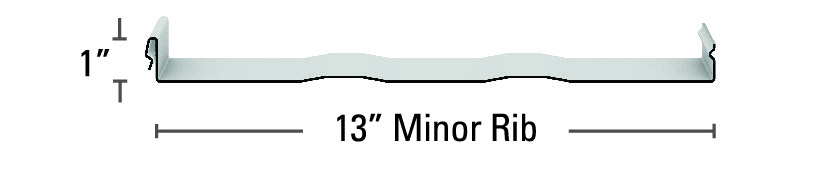

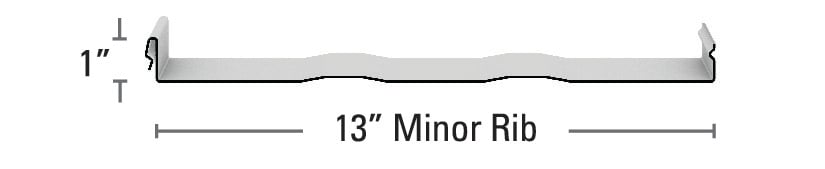

      InstalocMinorRbDrawwDimenResized

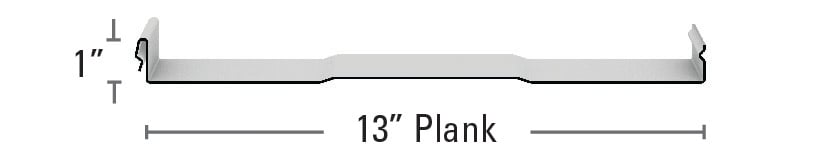

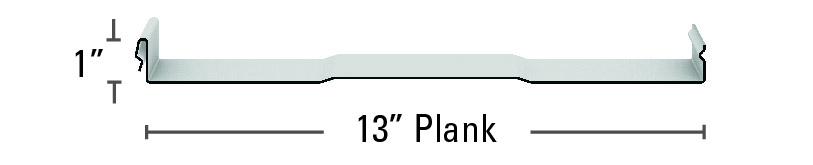

      InstalocPlankDrawwDimenResized

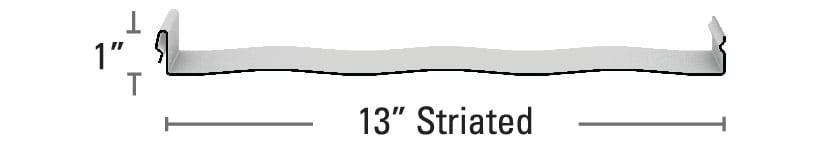

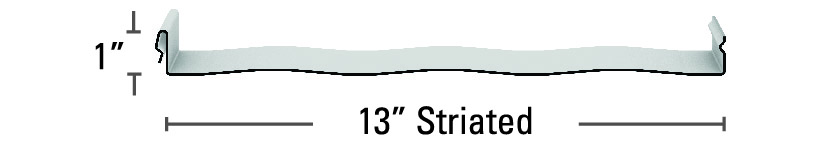

      Instaloc-Striated-Drawing

      Specifications & Details

      Details

      Minimum Slope

      3:12

      Installation

      Must be over solid deck

      Sealant

      Factory applied

      Manufacturing Facilities

      Houston, TX

      Note

      Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection

      Testing

      Fire Rating

      Class A

      Uplift Test

      UL 580 Class 90, UL 1897

      Class 4 Impact Resistance

      UL 2218

      Texas Department of Insurance Approval

      RC-86

      Testing Data

      For available Test Data, Section Properties or Load Tables, please visit our downloads section.

      Panel Options

      Panel Width

      13"

      Panel Configurations

      Striated, Plank and Minor Rib (Striated recommended)

      Coating

      Kynar 500® (PVDF)

      Substrate

      Standard 24 GA Galvalume®

      Details and Components Gallery

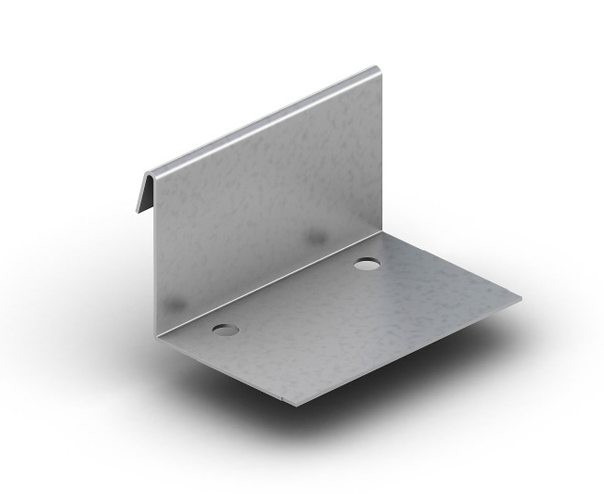

      Instaloc Clip

      Instaloc Clip

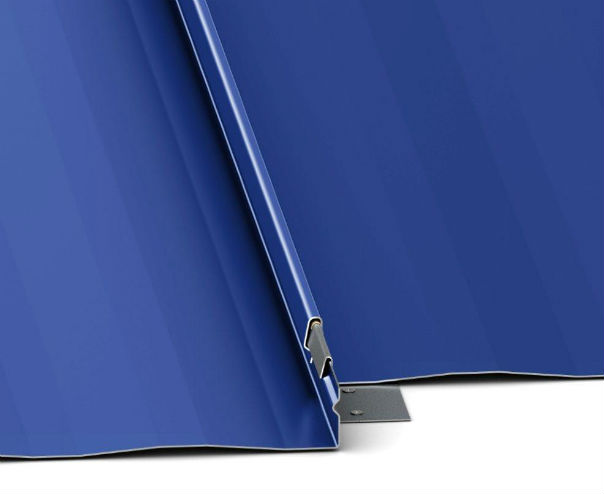

      Instaloc Seam

      Instaloc Seam

      Instaloc Clip

      Instaloc Clip

      Instaloc Seam

      Instaloc Seam

      Related Files

      Get A Submittal Package

      Customize your submittal package

      Click on your desired documents below to select them for your package.

      General Product and Warranty Information

      Panel Load Tables w/Section Properties and Testing

      Safety Data and Material Safety Data Sheets

      Request

      Samples & Color Charts

      Request physical samples and color charts. All items will be sent out via UPS ground unless otherwise specified.

      Request Now
      fanned-color-swatches

      Shop Drawing Service

      Running short of time to complete your own shop drawings? McElroy Metal can help. Click the button below to provide us some basic information and we’ll be in touch soon to discuss your project specifics.

      Contact Us

      Download Shop Drawings

      If you’re creating your own shop drawings, click the button below to gain full access to our CAD and PDF Files.

      View Drawings
      map-red

      Find a Distributor/Contractor Near You

      Whether you’re building a new home or planning renovations, a metal roof can deliver long-term cost savings and comfort. To explore your options and find the product that meets your aesthetic and budgetary needs, contact a McElroy Metal distributor or contractor in your area today. We can’t wait to help make your dream home a reality.

      Find a Contractor
