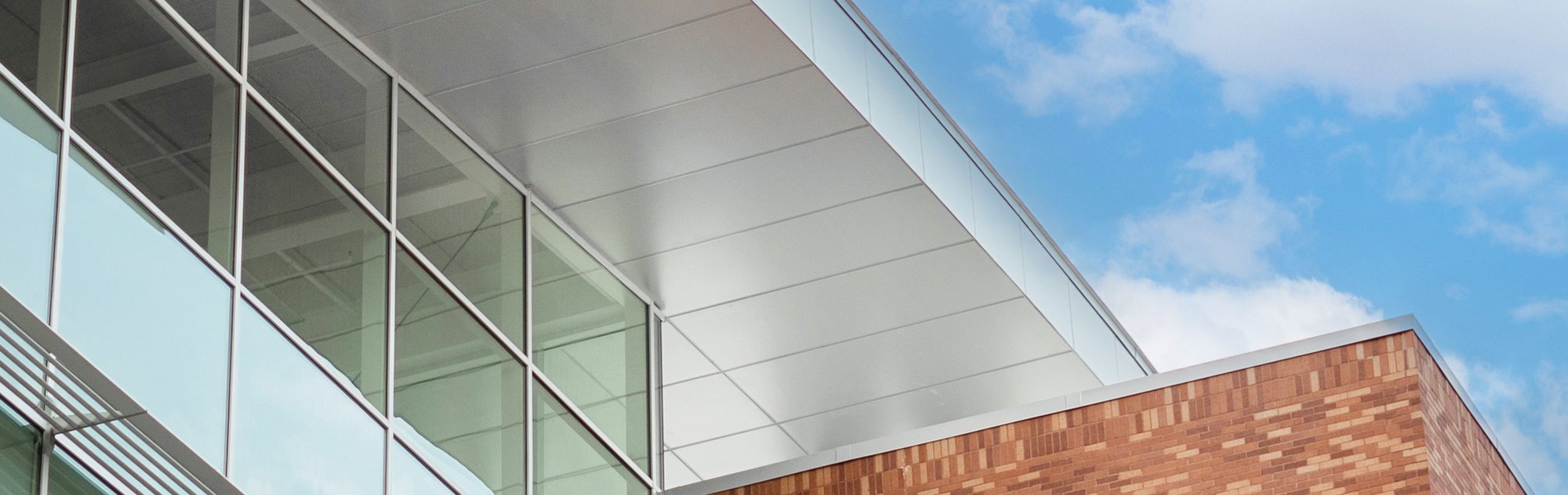

      Marquee Lok Forensic Science Crp copy

      Marquee-Lok

      Marquee-Lok is a bold, concealed fastened wall and soffit system designed to provide striking aesthetics and long-term durability for high-end architectural projects.

      Marquee-Lok

      Great for:

      walls-icon
      WALLS
      roofs-icon
      Roofs
      residential-icon
      Residential
      commercial-icon
      Commercial

      The Marquee-Lok panel is designed to complement McElroy roof and wall panels.

      Taking a single vendor approach to walls, roofing and accessories, Marquee-Lok panels simplify every step of the building process. Contractors and building owners achieve exact color match, coordinated material delivery, and the assurance of McElroy quality across all components of the project.

      View Related Files
      Build a Submittal Package

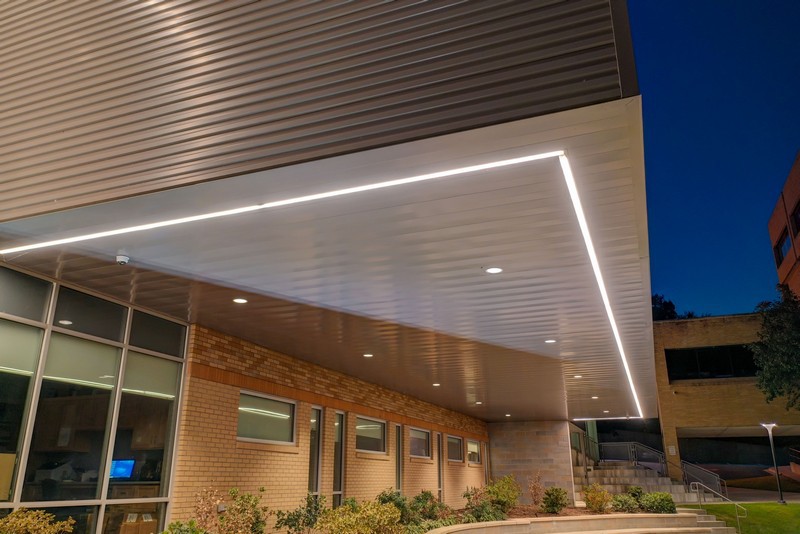

      Marquee-Lok Slate Gray Hot Springs AR

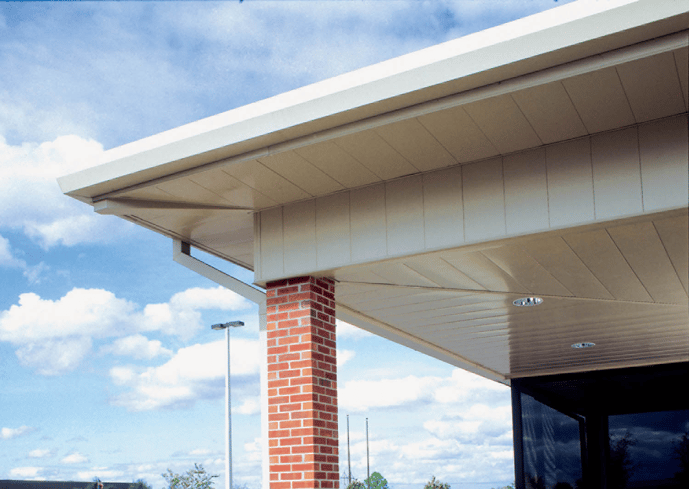

      1-Marquee-II

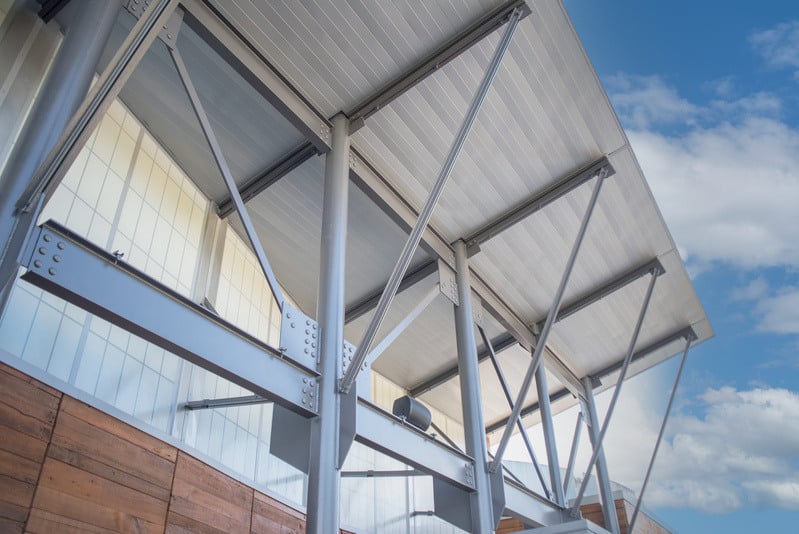

      DSC08630

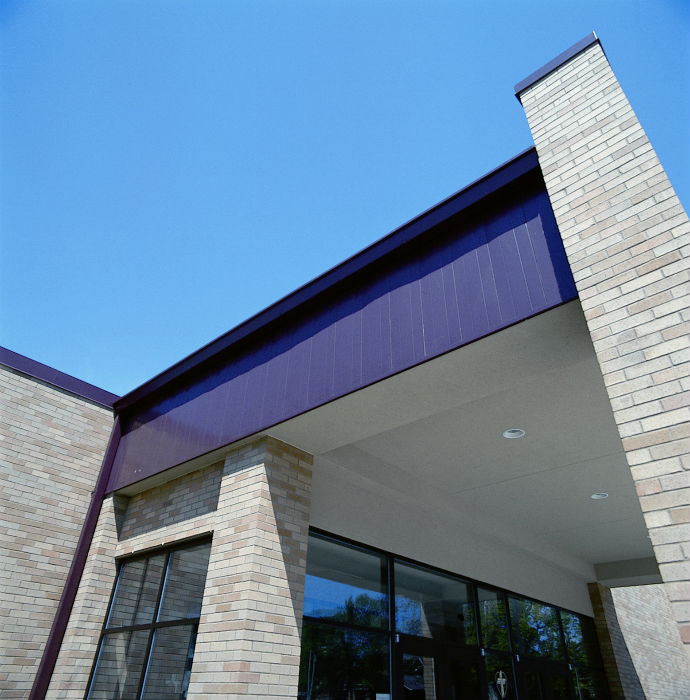

      marquee ii-sized

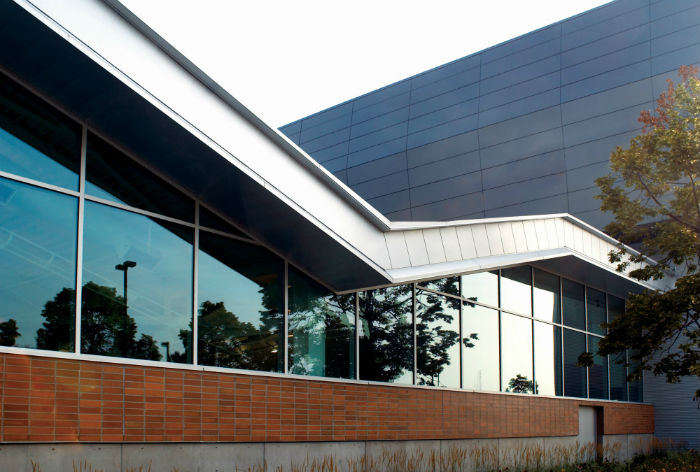

      marquee-lok-3-sized

      Marquee-Lok can be used as a soffit and fascia panel, and also has the added capability to be used as a wall panel.

      Beauty is the Simplicity of Design
      Marquee-Lok panels are 12" wide and 1" high.  The end effects are a smooth, unbroken plane or a subtle ribbed appearance.  Panels are manufactured "cut to length," eliminating the need for field cutting.

      marquee ii-sized

      Unique locking design
      McElroy Metal's Marquee-Lok panels feature a unique locking design that adds strength and helps to prevent the panels from unlatching due to high suction force during a wind incident. No other panel in the industry features this type of locking mechanism.

      Ventilation
      To meet ventilation requirements, Marquee-Lok panels are available vented. Control the degree of airflow by utilizing all vented panels or a mix with non-vented panels.

      Renderings & Profiles

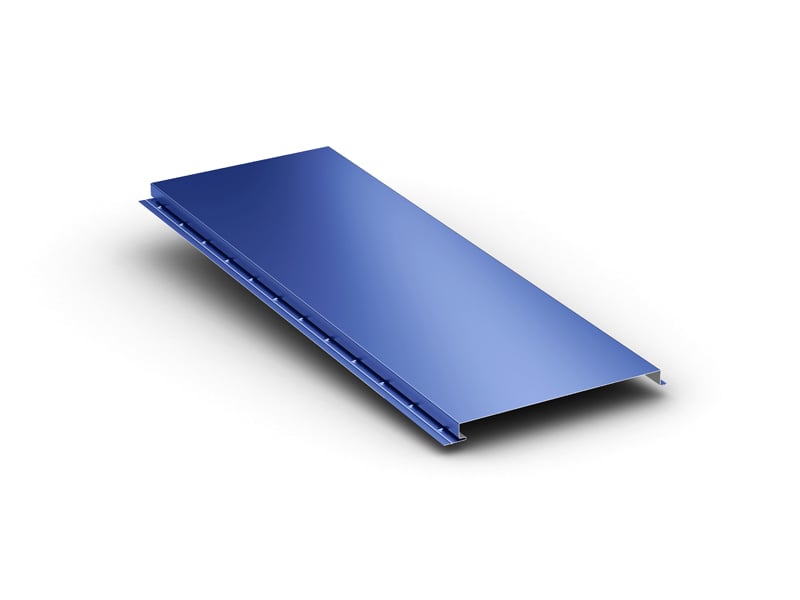

      marquee-lok_BLUE_HR2

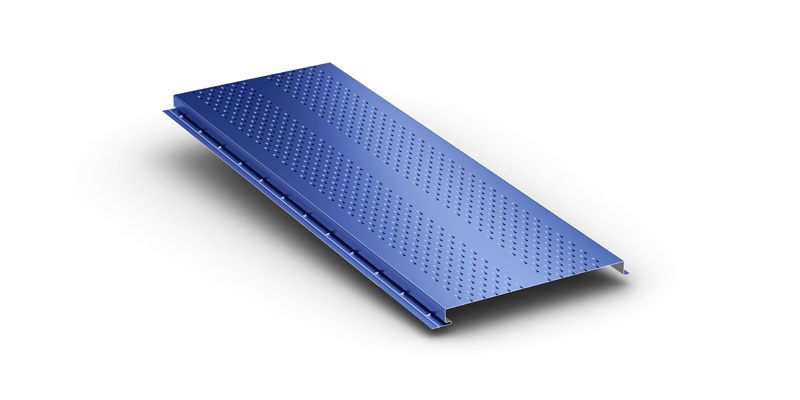

      marquee-lok_vented_BLUE_HRResized

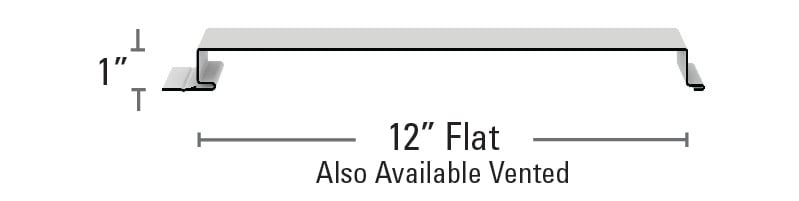

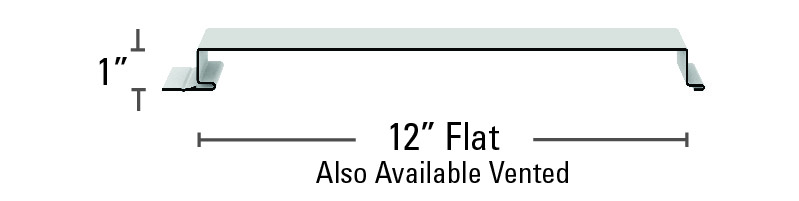

      MarqueeLokDrawwDimenRVResized

      Specifications & Details

      Details

      Marquee-Lok Net Free Area

      8% with vented surface

      Maximum Length

      24 GA and .032 aluminum is 8'
      22 GA is 15'

      Manufacturing Facilities

      Marquee-Lok is produced in Clinton, IL, Peachtree City, GA and Houston, TX

      Note

      Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection

      Note:

      Due to venting/perforations, vented Marquee-Lok products must be stored inside. Any moisture will cause premature rusting

      Testing

      Uplift Test

      ASTM E1592

      Testing Data

      For available Test Data, Section Properties or Load Tables, please visit our downloads section.

      Panel Options

      Panel width

      12"

      Panel configurations

      - Non-Vented: Flat or Double Pencil Ribs (OC spacing with Double Pencil ribs is 4”)
      - Vented: Flat or Single Pencil Rib

      Coating

      Kynar 500® (PVDF)

      Substrate

      22 GA Galvalume®
      24 GA Galvalume®

      locking

      Additional Information

      Installation
      Panels are held in place by concealed fasteners, allowing installation without the need for special clips or seaming tools.

       NOTE:

      - Marquee-Lok can be used as a wall panel (22 gauge only)


      Related Files

      Specifications

      CAD Drawings

      PDF Drawings

      Color Charts

      Brochures/Flyers

      Finish and Substrate Warranties

      Metal Panel Care & Maintenance

      Weathertightness Warranties (select standing seam panels only)

      Product Data Sheets

      Product & Trim Information Books

      English Installation Manuals

      Spanish Installation Manuals

      Technical Bulletins / ASTM E283 (Air) & ASTM E331 (Water)

      Technical Bulletins / ASTM E1592 Uplift Tests

      Technical Bulletins / Panel Load Tables w/Section Properties
