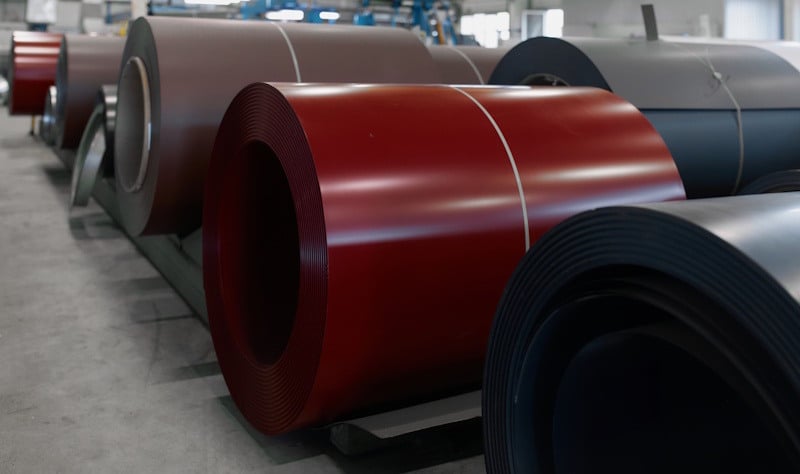

McElroy Metal offers an extensive Slit Coil and Flat Sheet program. In fact, we're proud to have one of the most robust inventories in the industry. Choose from a wide selection of colors, gauges and widths.
Our expanded inventory position and distribution points offers contractors quick lead-times in many regions of the country and in many cases less slit-coil drop than many of our competitors.
| Details | |
|---|---|
| Manufacturing Facilities | - Flat sheets are produced at all manufacturing plants - Slit coil produced at most manufacturing locations |
| Note | Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection |
| Product Specifications | |
|---|---|
| ASTM A792 | - 22, 24, 26 GA: 50 ksi steel - 29 GA: 37, ksi steel 48 3/8” only |
| Options | |
|---|---|

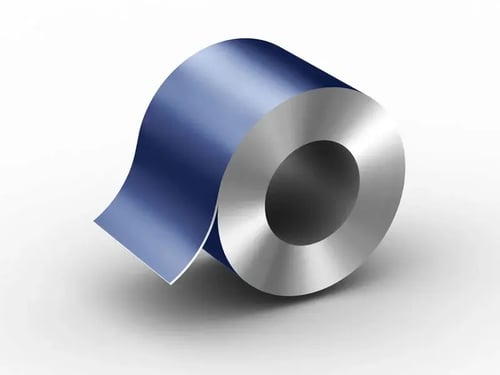

| Slit Coil Gauges | - Standard 24 GA, 26 GA - Optional 22 GA |
| Standard Coil Widths | - Standard 20”, 22”, 24” - Other sizes can be custom slit – please inquire |

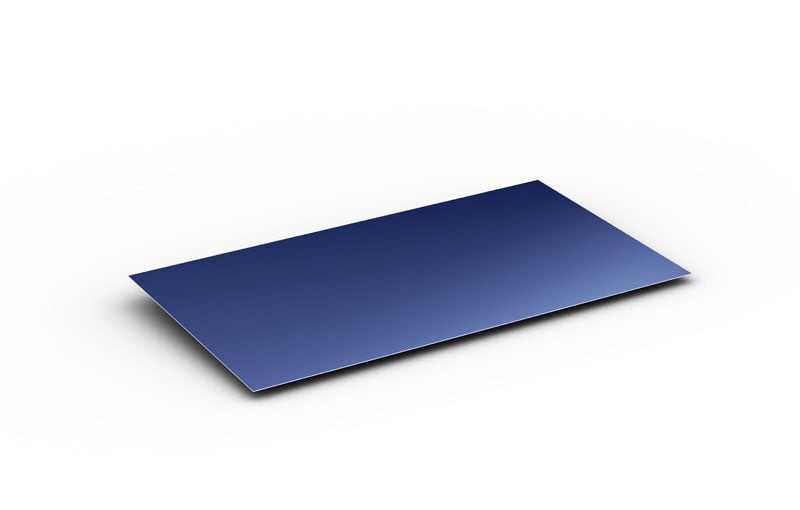

| Flat Sheet Gauges | - Standard 24 GA, 26 GA, 29 GA - Optional 22 GA |
| Flat Sheet Widths | - Standard 41 9/16”, 44 1/2”, 48 3/8” - 29 GA is only available - 48 3/8” (Select plants) |
| Flat Sheet Lengths | - Standard length – 10’ - Other lengths – please inquire |
