      138T Shingle Recover Alexander II 138T Shingle Recover-Ash Gray-Macon GA

      138T Metal Over Shingle Recover System

      McElroy Metal’s 138T Shingle Recover System provides a long-term and economical solution for commercial building owners and homeowners interested in making the transition to metal roofing without removal of the existing shingle roof.

      138T Metal Over Shingle System

      Great for:

      walls-icon
      WALLS
      roofs-icon
      Roofs
      residential-icon
      Residential
      commercial-icon
      Commercial

      This innovative system installs directly over existing shingles, and the patented clips create an energy-saving Above Sheathing Ventilation (ASV) airspace between the existing roof and the new 138T roof.

      Up until now, the common method to provide ASV was to install a series of vertical and horizontal framing members, which greatly increased material and labor expenses. The 138T Shingle Recover/ASV clip eliminates all framing and allows unencumbered airflow in all directions.

      As long as the existing deck is in good shape, there is no need for the added expense and hassle of removing and disposing of the existing shingles (check with your local code authority to determine if one or two layers of shingles are allowable for recover). Also, there is no need for the added expense of underlayment with the 138T Shingle Recover System.

      Although this recover system was designed for retrofit applications, it is equally suitable for new construction over solid decking. For this application, underlayment would be required.

      View Related Files
      Build a Submittal Package
      138T Metal Over Shingle System
      asv-illustration-9-sized-2
      Alexander II 138T Shingle Recover-Ash Gray-Macon GA

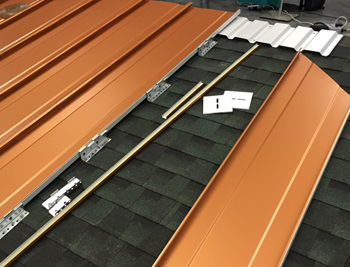

      shing-rec-1a-2crop-1

      Helpful Videos

      Installation Animation

      Seam Cap and Panel Removal

      Above Sheathing Ventilation

      138T Shingle Recover/ASV Clip Details

      138T Shingle Recover/ASV Clip Details

      Installation
      ASV Air Flow
      Clip Seating
      Corrugated Sheeting
      Seaming

      Installation

      The patented 138T Shingle Recover/ASV Clip is installed with two fasteners into the existing substrate and allows for a 3/4" ASV airspace between existing and new roofs.

      ASV Air Flow

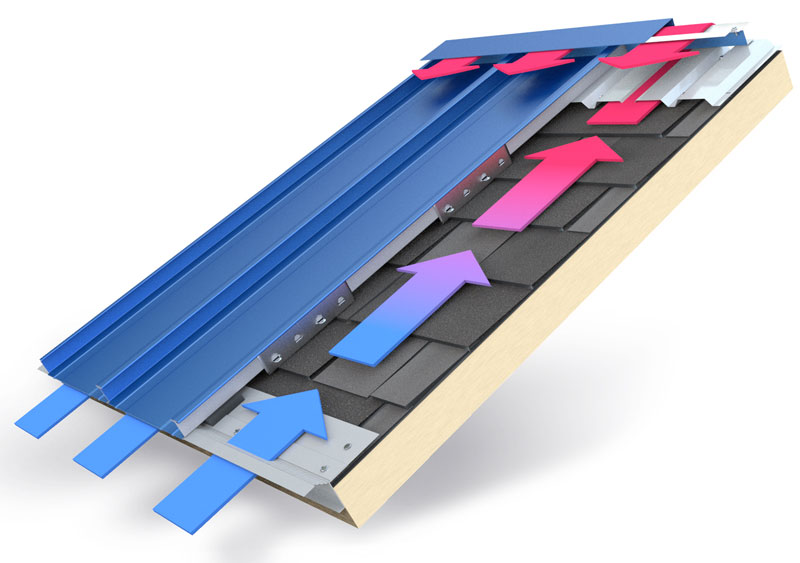

      This illustration details ASV airflow and venting. Air enters via perforated eave trim and moves upward between the existing and new roof. The heated air then escapes through a corrugated panel and vented ridge trim.

      Clip Seating

      Each 138T Shingle Recover/ASV Clip is seated on two shingles with fasteners through lower ends of the shingles.

      Corrugated Sheeting

      Corrugated sheeting installed at the ridge allows for continuous air flow between the existing and new roof while providing support for the panel and closure.

      Seaming

      Seaming is the final step. An electric seamer mechanically attaches the 138T seam cap to the 138T panels.

      Installation

      The patented 138T Shingle Recover/ASV Clip is installed with two fasteners into the existing substrate and allows for a 3/4" ASV airspace between existing and new roofs.

      ASV Air Flow

      This illustration details ASV airflow and venting. Air enters via perforated eave trim and moves upward between the existing and new roof. The heated air then escapes through a corrugated panel and vented ridge trim.

      Clip Seating

      Each 138T Shingle Recover/ASV Clip is seated on two shingles with fasteners through lower ends of the shingles.

      Corrugated Sheeting

      Corrugated sheeting installed at the ridge allows for continuous air flow between the existing and new roof while providing support for the panel and closure.

      Seaming

      Seaming is the final step. An electric seamer mechanically attaches the 138T seam cap to the 138T panels.

      Before and After

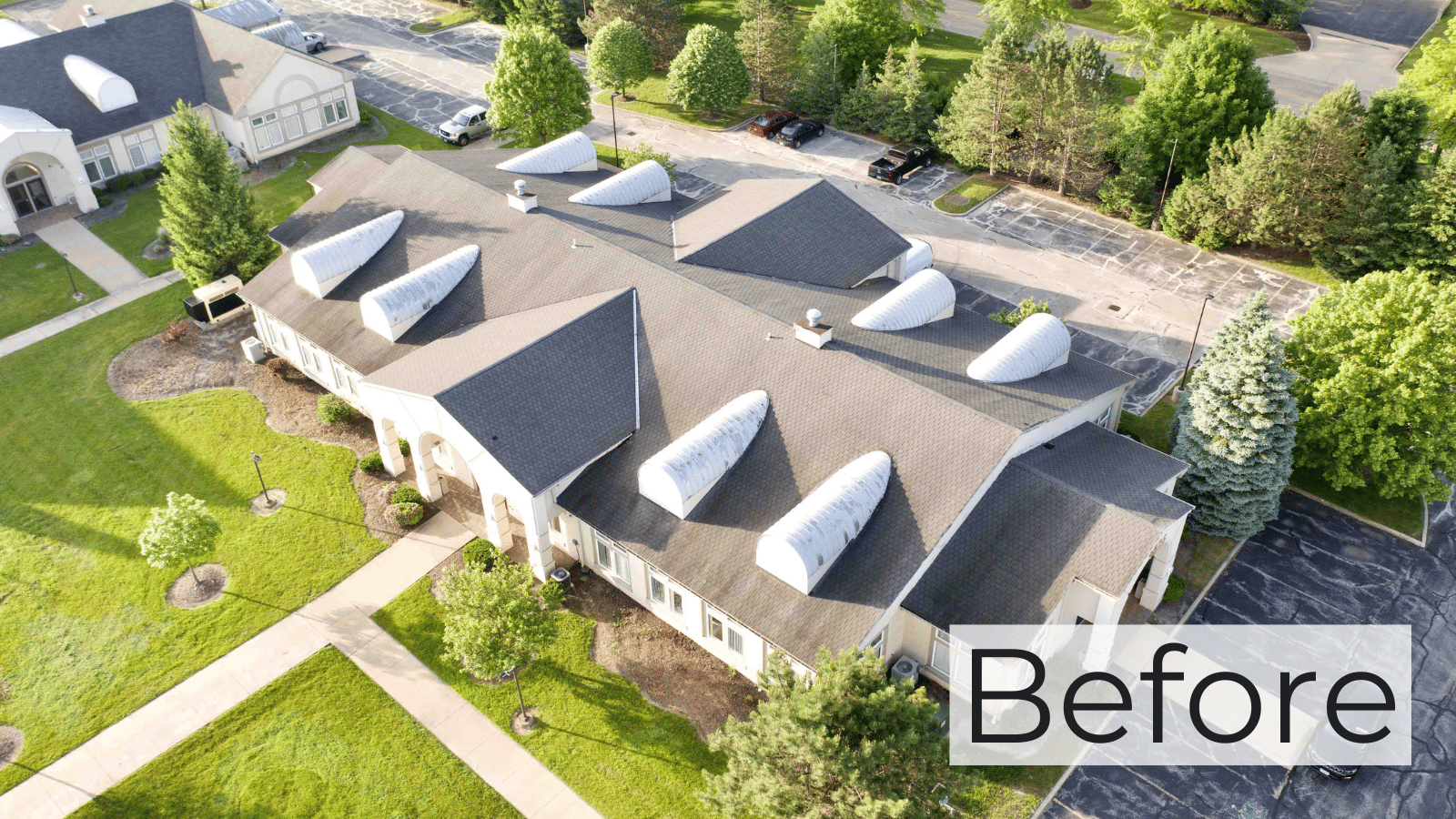

      138t-symmetrical-standing-seam-panel-used-for-roof-recover-on-union-hall-before

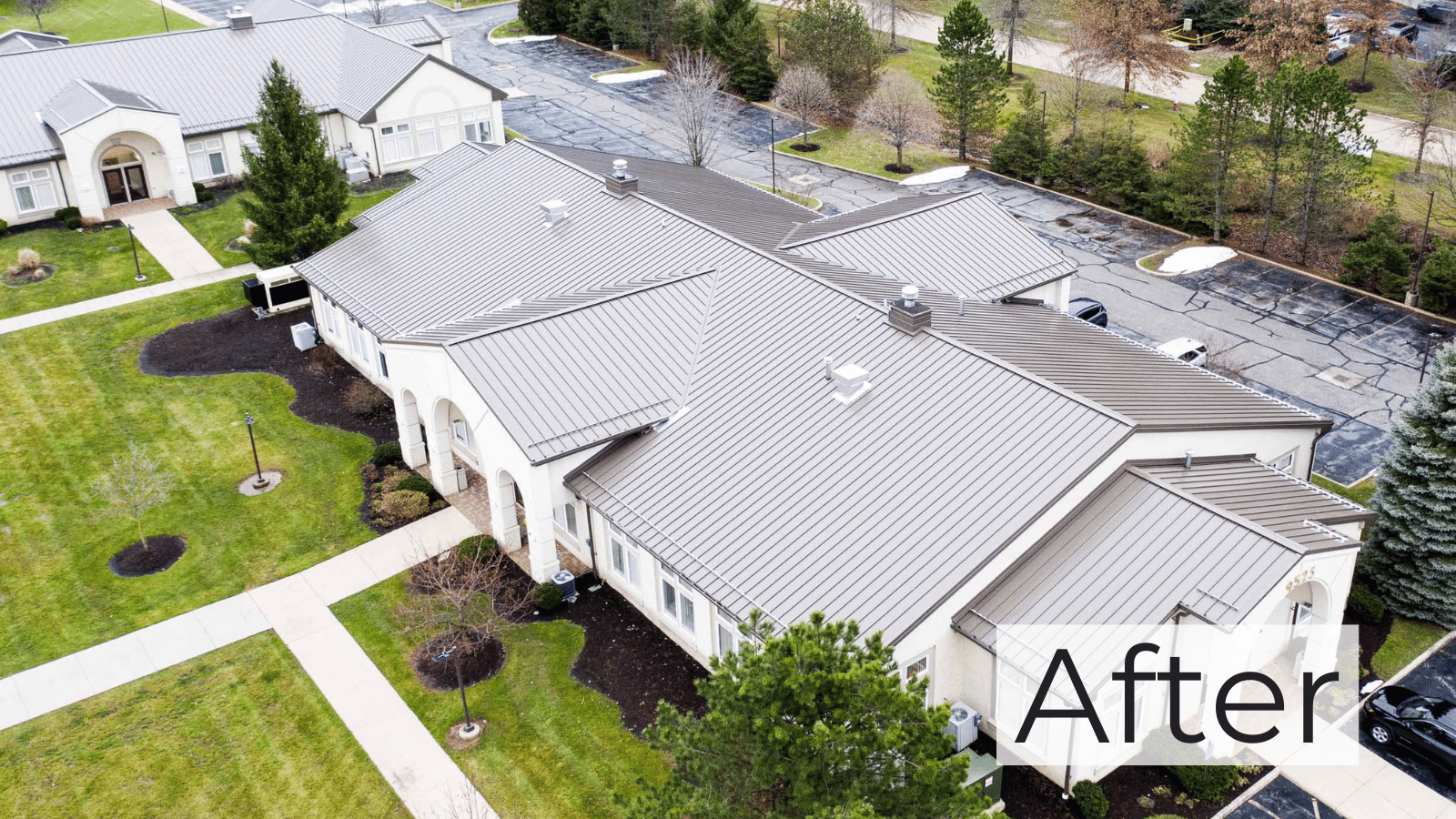

      138t-symmetrical-standing-seam-panel-used-for-roof-recover-on-union-hall-after

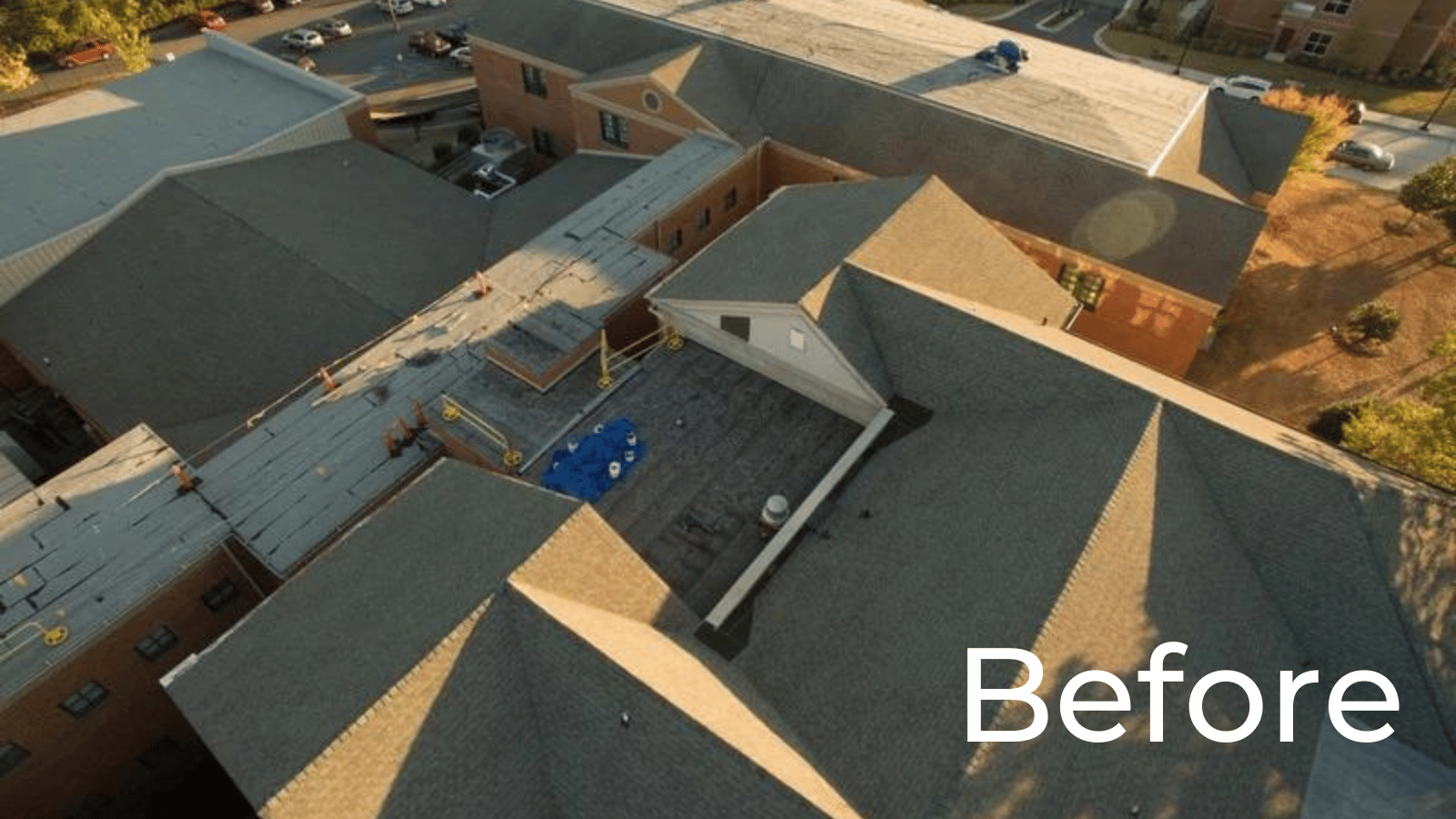

      138t-standing-seam-system-used-to-recover-historic-school-before-1

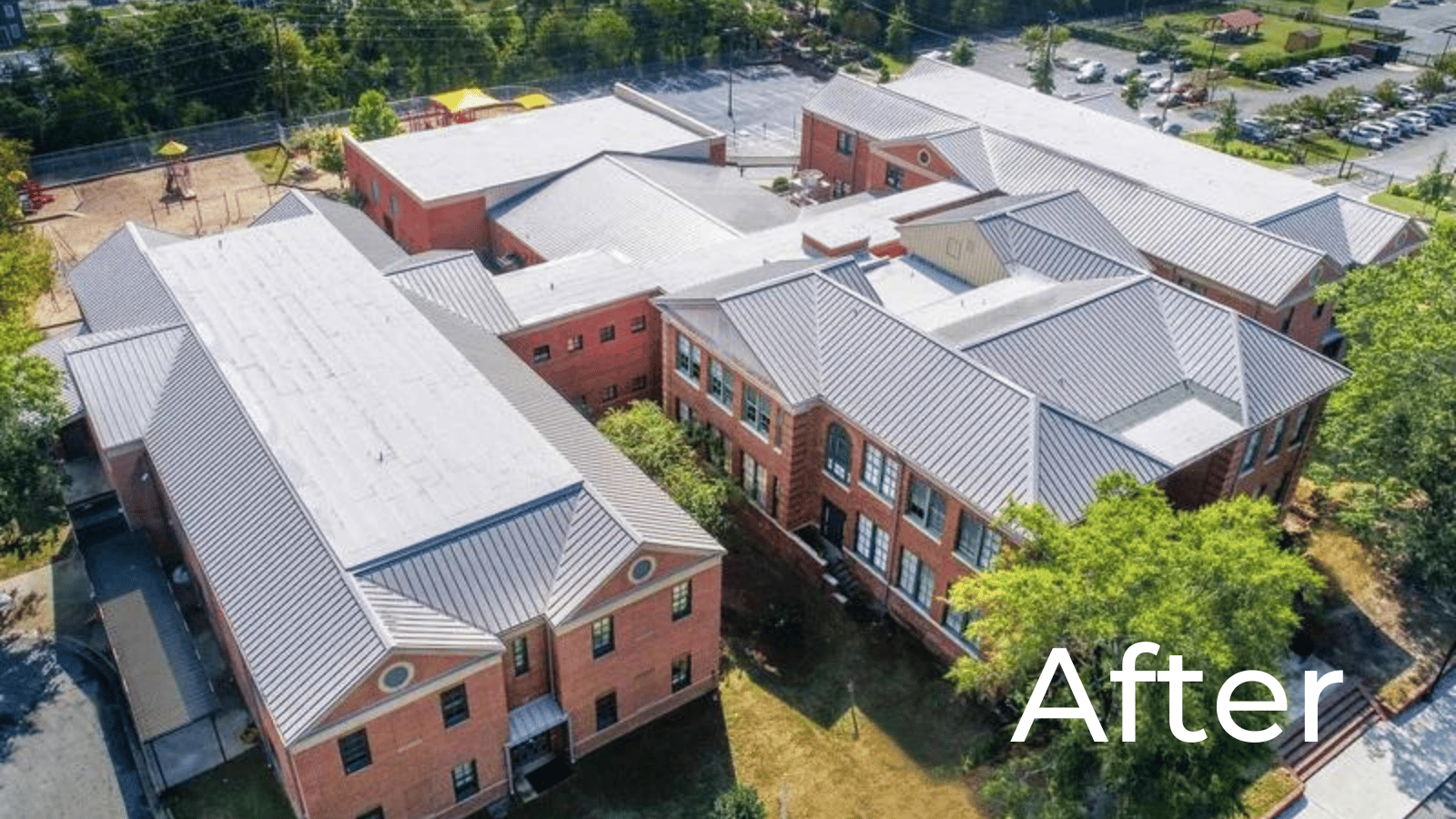

      138t-standing-seam-system-used-to-recover-historic-school-after

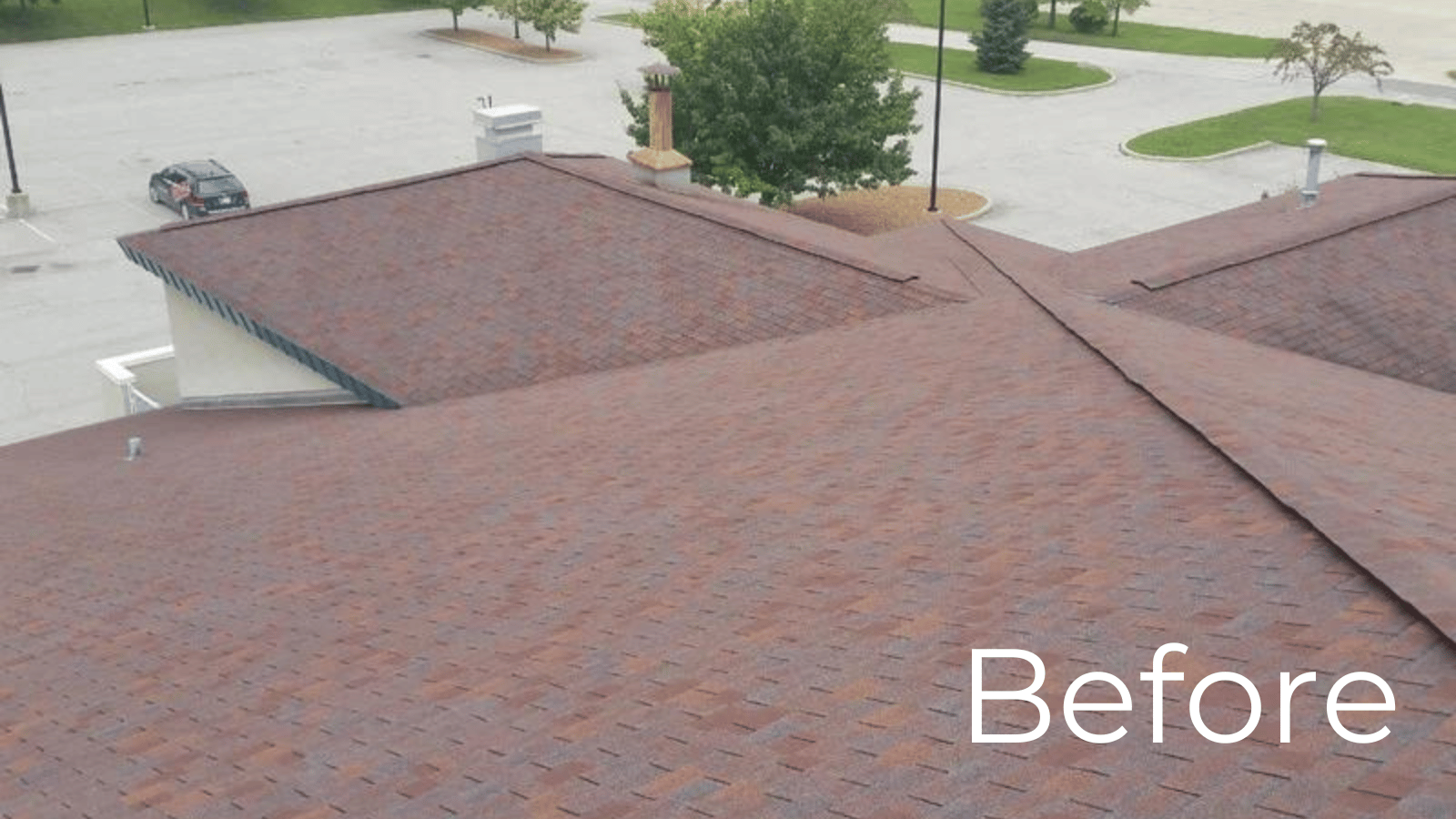

      grand-hall-at-westlake-before

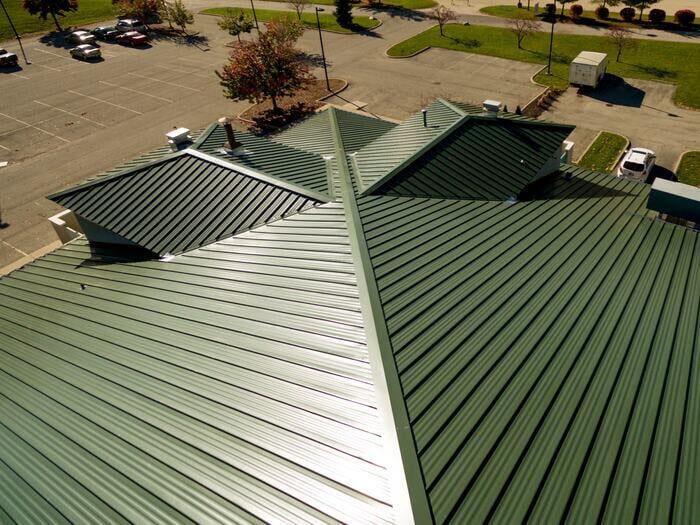

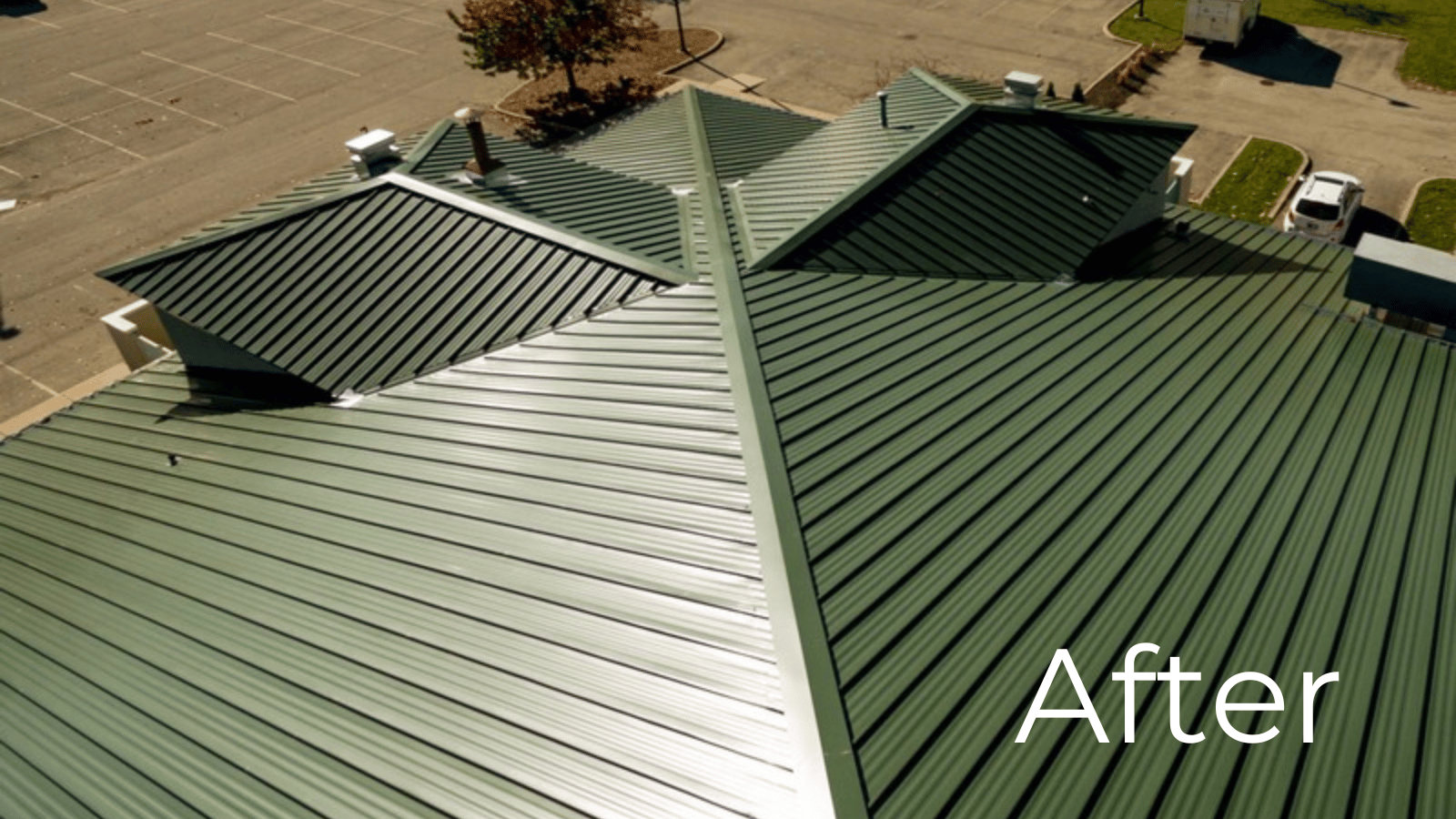

      grand-hall-at-westlake-after

      Details and Components Gallery

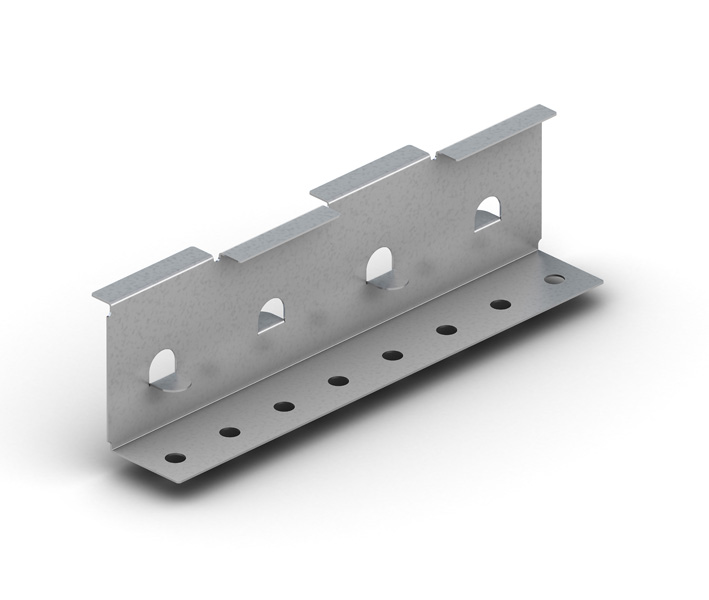

      138T Shingle Recover Clip

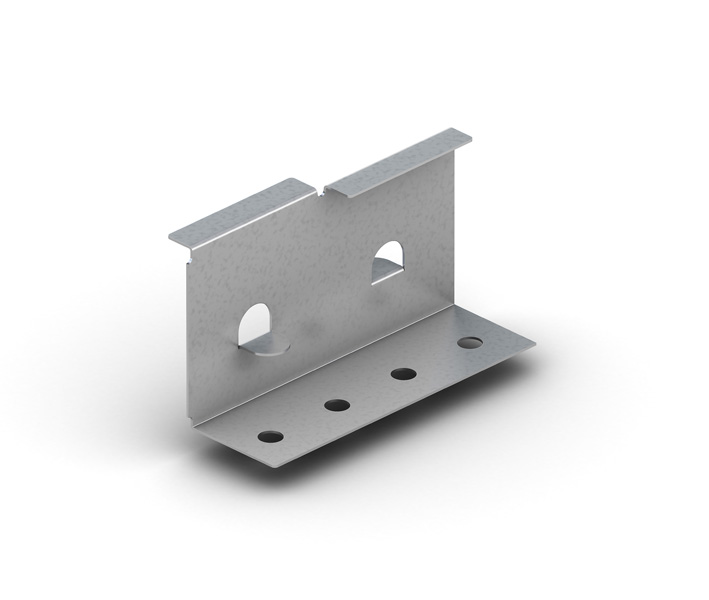

      138T Metal over Shingles ASV Clip

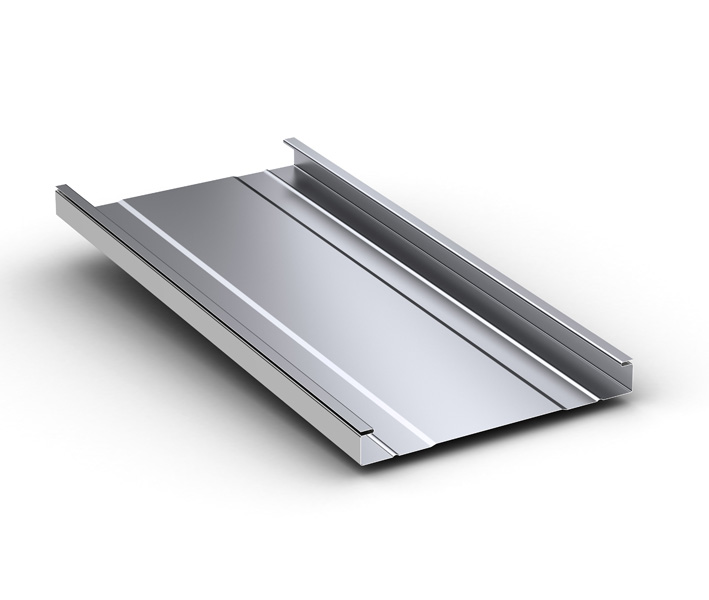

      138T_plank_pencil_SILVER_HR

      138T Metal over Shingles Plank & Pencil Rib

      perforate-panel-ridge-crop

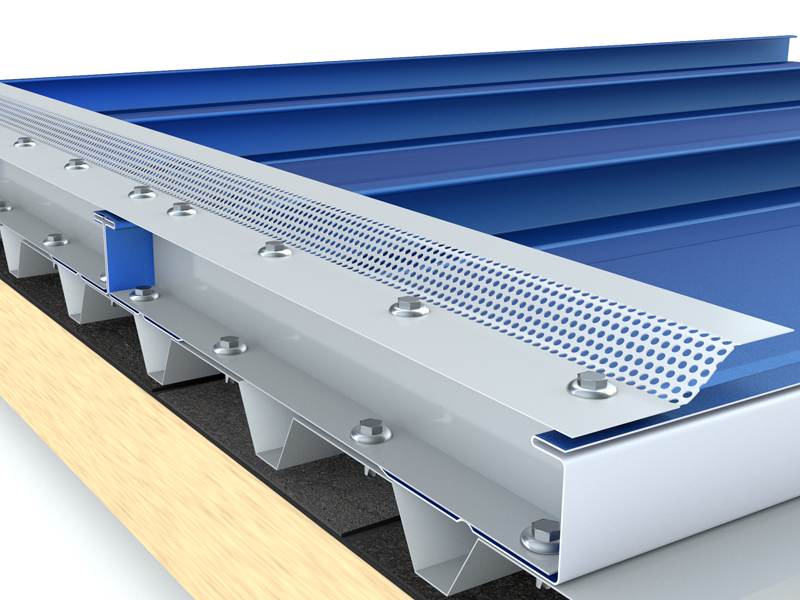

      138T Metal over Shingles Perforated Ridge Trim

      perforate-panel-eave-crop

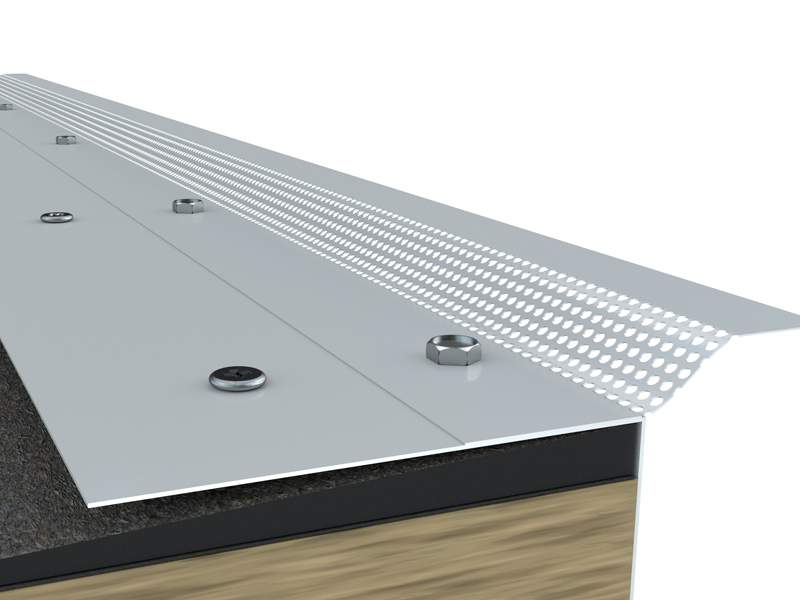

      138T Metal over Shingles Perforated Eave Trim

      138T Shingle Recover Clip

      138T Metal over Shingles ASV Clip

      138T_plank_pencil_SILVER_HR

      138T Metal over Shingles Plank & Pencil Rib

      perforate-panel-ridge-crop

      138T Metal over Shingles Perforated Ridge Trim

      perforate-panel-eave-crop

      138T Metal over Shingles Perforated Eave Trim
