Insulated Metal Wall Panels

Great for:

WALLS

Roofs

Residential

Commercial

Green Span Profiles is a McElroy Metal joint venture company that manufactures Insulated Metal Panels (IMP’s). Wall panels are available in thicknesses from 2” to 6”.

Utilizing state-of-the-art equipment, Green Span Profile’s panels are formed by a continuously poured-in-place manufacturing process binding interior and exterior steel facings to a polyisocyanurate insulating foam core.

View Related Files

Panels

Ridgeline

Impression

WaveLine

ShadowLine

MaxLine

MesaLine

Ridgeline

Impression

WaveLine

ShadowLine

MaxLine

MesaLine

Green Span Profiles Advantages

Exceptional insulating properties (approximate R-value of 8 per inch)
Superior spanning capability
7 distinct wall panel profiles
Rigid feel
Streamlined architectural appearance

Insulated Metal Roof and Wall Panels

MaxLine

MesaLine

MesaLine HSE

ShadowLine

WaveLine

Impression

CleanLine

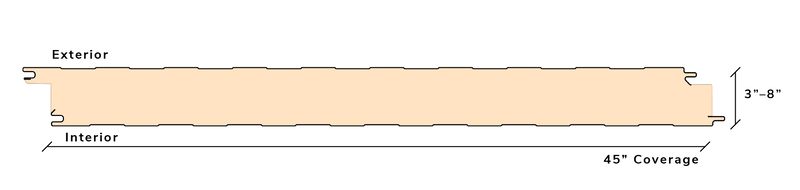

MaxLine

Uses: Partition Wall, Liner Wall, Tee Supported Ceiling

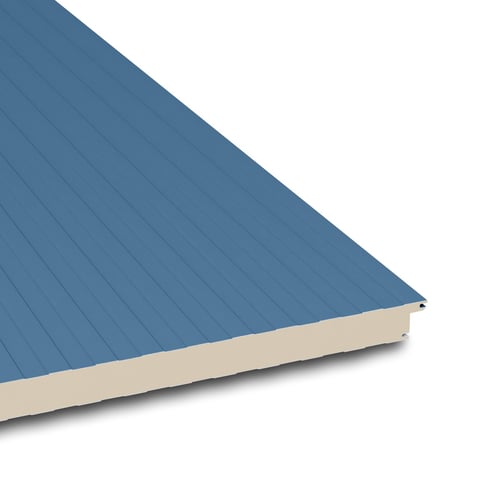

MaxLine insulated metal panel was designed as our widest and most economical insulated metal panel offering. It is intended to maximize installation efficiency and cost-effectiveness. The unique Green-Lock side-joint facilitates accurate sealant placement and helps ensure a high-performance vapor seal.

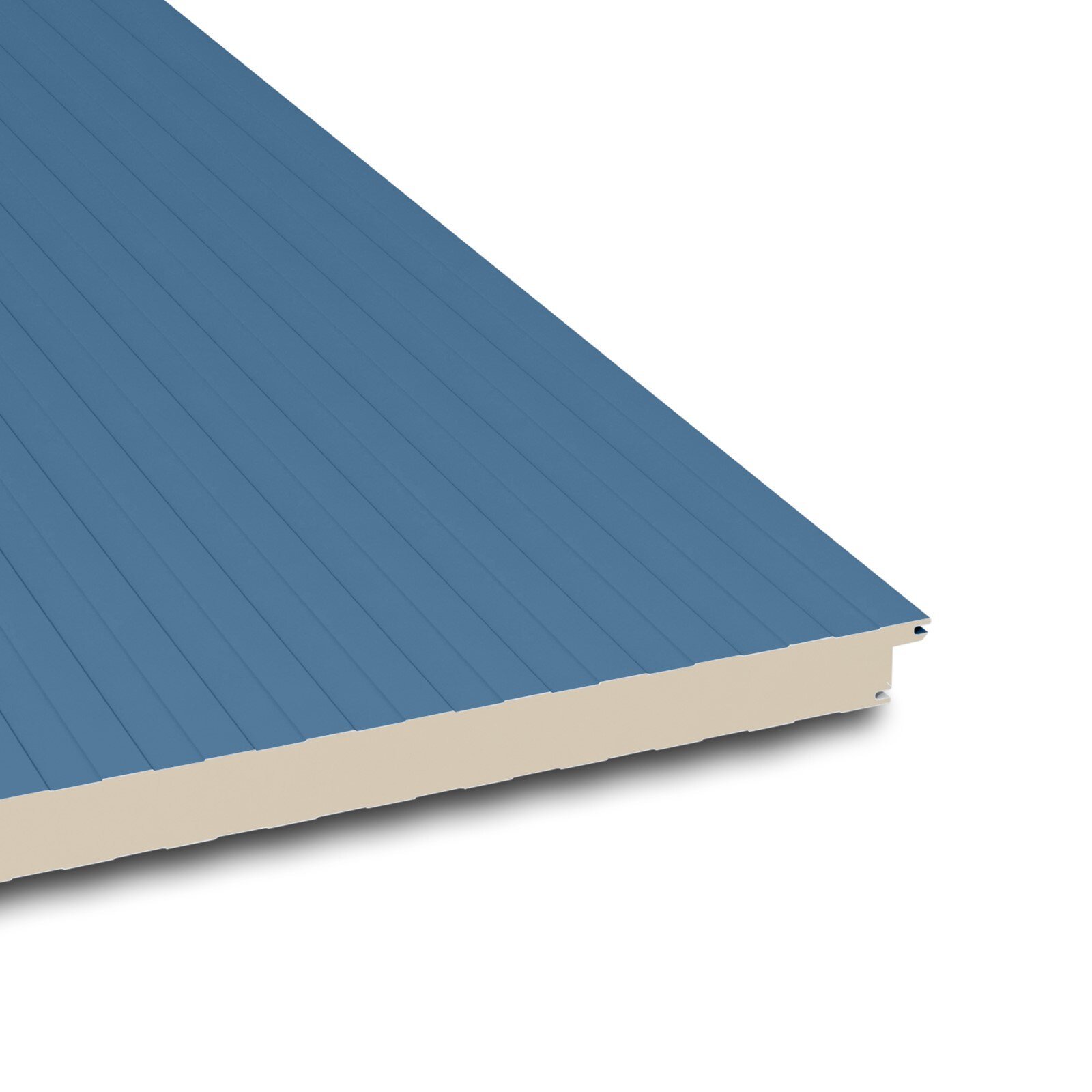

MesaLine

Uses: Exterior Wall, Partition Wall, Liner Wall, Ceiling

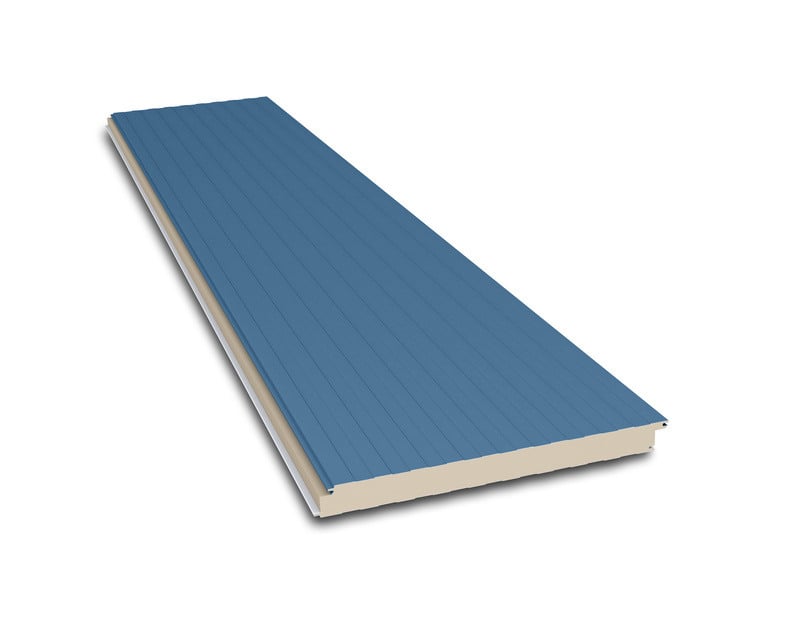

MesaLine is our most widely accepted and used insulated metal panel. Utilized in commercial/industrial applications, the lined profile provides strength, facilitates foam adhesion and helps minimize natural imperfections in the steel faces. The shallow Mesa rib and the unique Green-Lock side-joint help ensure a high-performance vapor seal.

MesaLine HSE

Uses: Exterior Wall

HSE stands for Heavy Stucco Embossed. MesaLine HSE was designed to satisfy those who desire something different for their Commercial/Industrial structure. Having all the positive attributes of the tried-and-true MesaLine profile, MesaLine HSE adds a heavy stucco embossment for a more dramatic impact. As with all of our wall profiles, MesaLine HSE has the unique Green-Lock side-joint helping to ensure a high-performance vapor seal.

ShadowLine

Uses: Exterior Wall

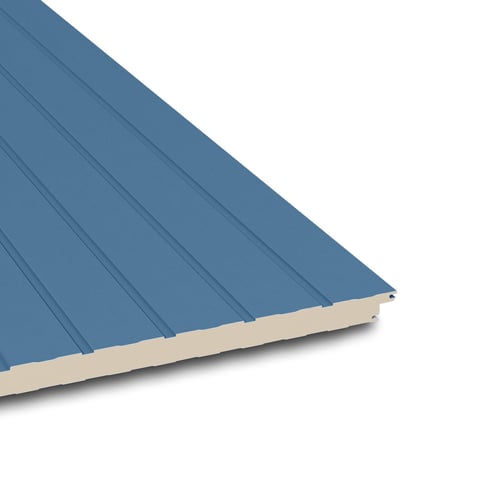

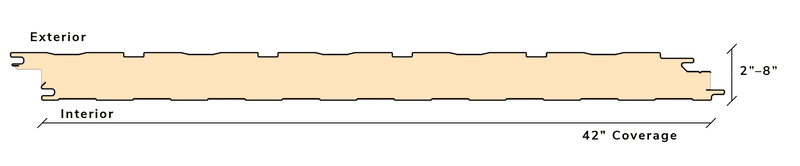

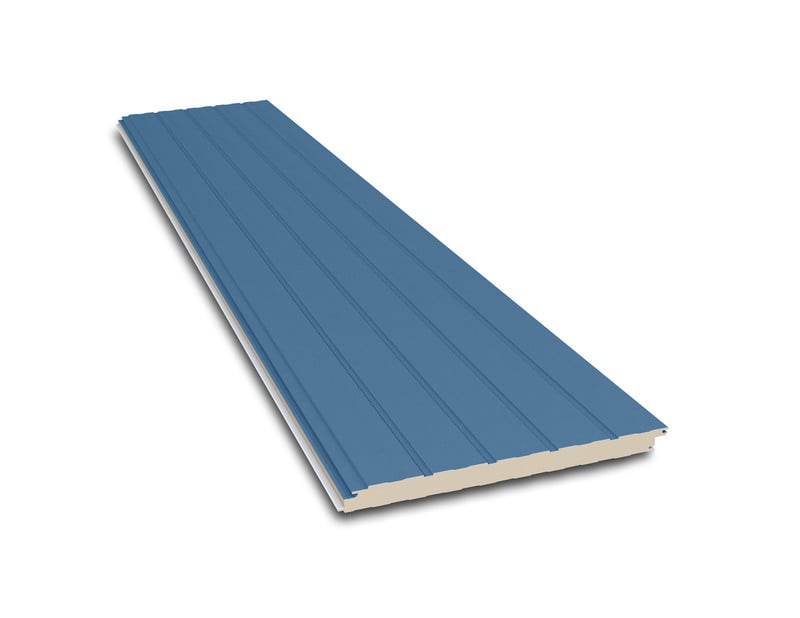

The ShadowLine insulated metal panel is our most dramatic profiled offering. The panel has five, ¼” deep flutes along the exterior face. The 1¼” reveal disguises the side-joint and yields an aesthetic, monolithic look. The unique Green-Lock side-joint helps ensure a high-performance vapor seal.

WaveLine

Uses: Exterior Wall

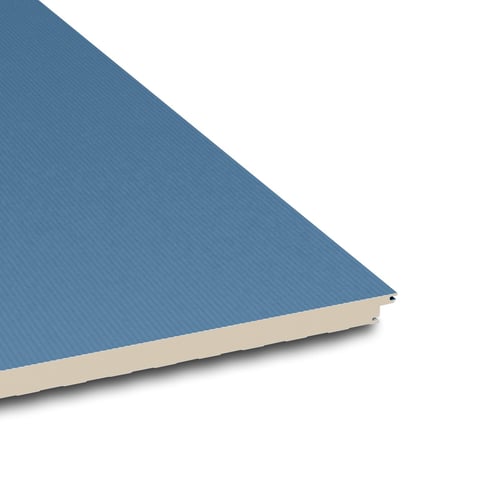

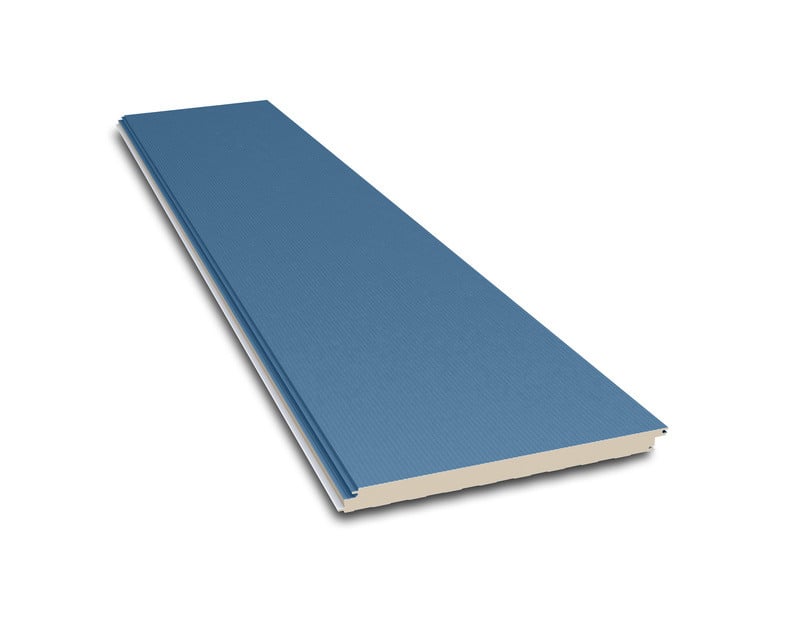

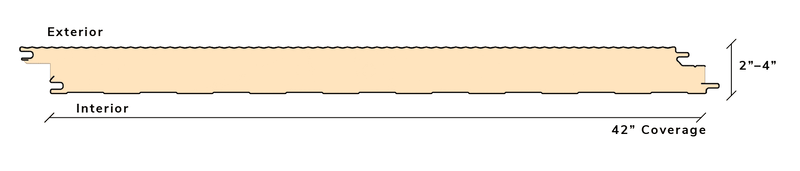

The face of the WaveLine profile is micro-corrugated. This insulated metal panel offers a more architectural profile for designers desiring a sleek and distinctive look. The unique Green-Lock side-joint helps ensure a high-performance vapor seal in vertical as well as horizontal applications.

Impression

Uses: Exterior Wall

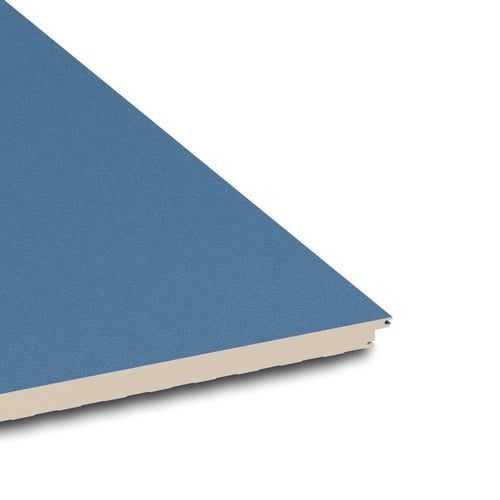

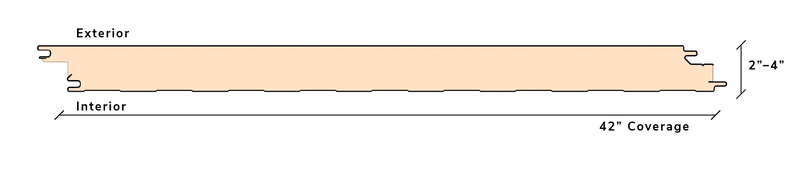

Impression is Green Span’s flat panel offering. This profile utilizes our Heavy Stucco Embossment (HSE). Impression gives the look of tilt-up concrete while offering unsurpassed thermal efficiency. In comparison to tilt-up, the Impression insulated metal panel is super lightweight and extremely cost-effective.

CleanLine

Uses: Partition Wall, Liner Wall, Ceiling

Designed specifically for dust-free environments, the CleanLine exterior face is free of all embossing and profiling. CleanLine insulated metal panels are manufactured specifically for interior use as partition-walls, liner-walls and ceilings. The unique Green-Lock side-joint facilitates accurate sealant placement and helps ensure a high-performance vapor seal.

MaxLine

Uses: Partition Wall, Liner Wall, Tee Supported Ceiling

MesaLine

Uses: Exterior Wall, Partition Wall, Liner Wall, Ceiling

MesaLine HSE

Uses: Exterior Wall

ShadowLine

Uses: Exterior Wall

WaveLine

Uses: Exterior Wall

Impression

Uses: Exterior Wall

CleanLine

Uses: Partition Wall, Liner Wall, Ceiling

Details and Components Gallery

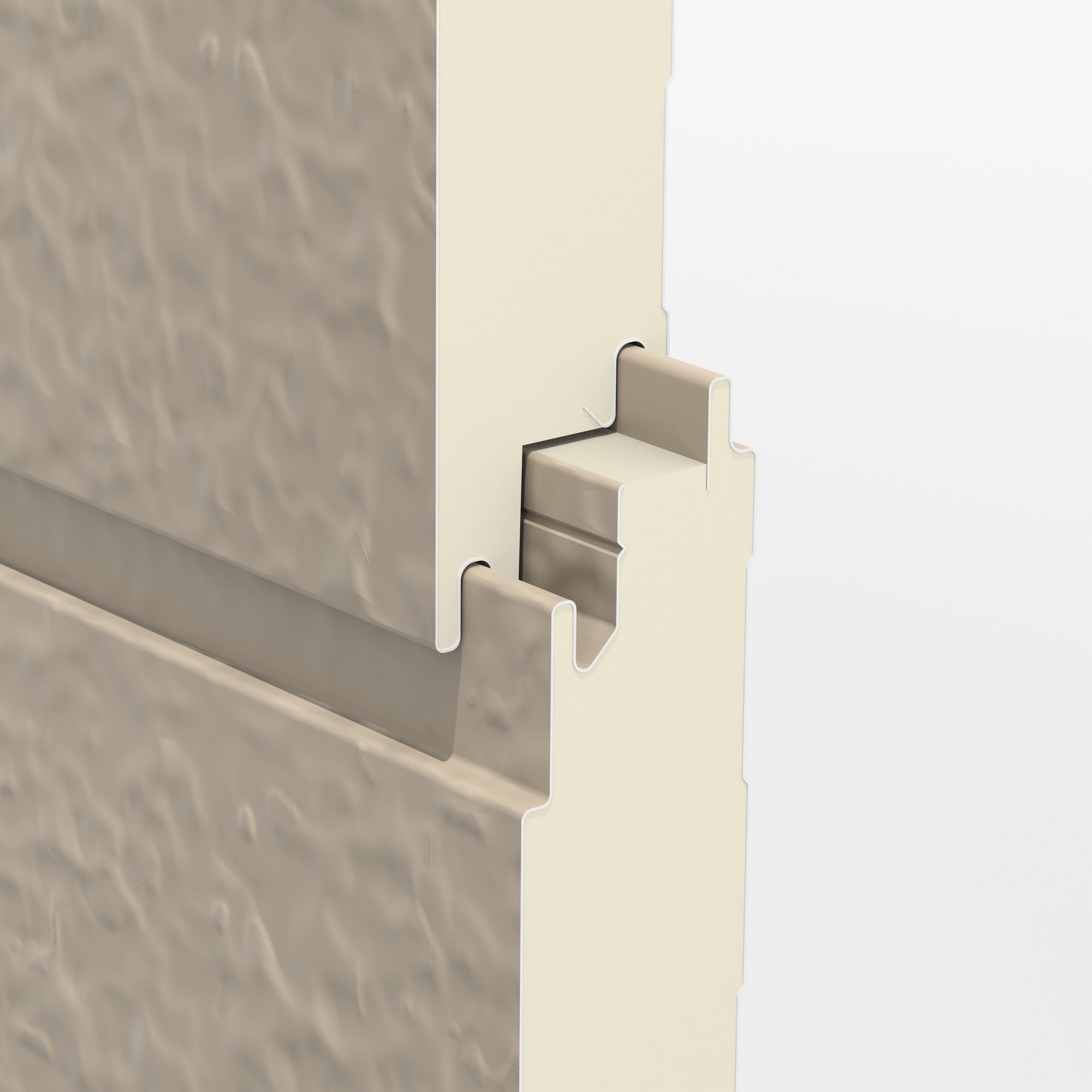

Impression Reveal Joint

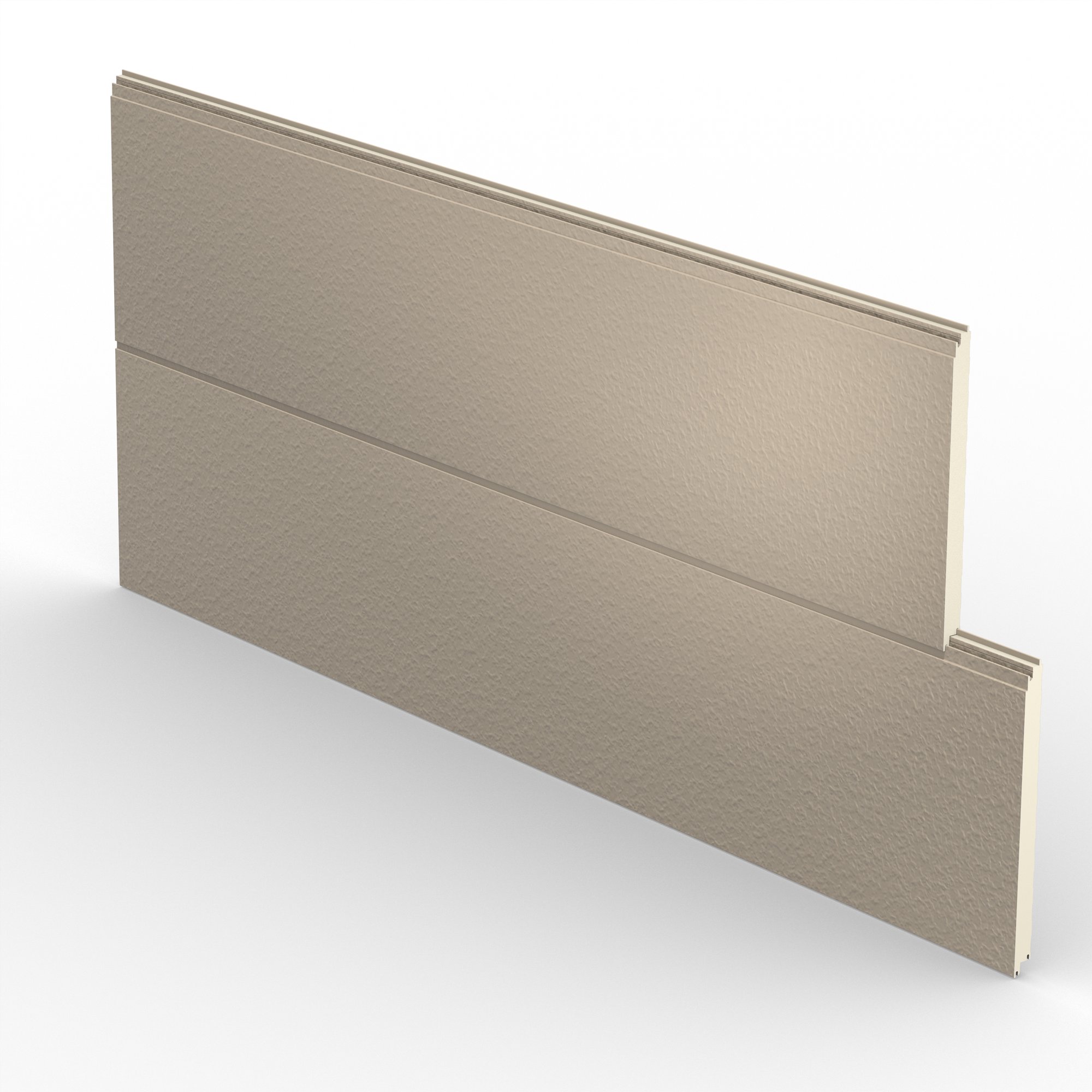

Impression Reveal Joint Stack

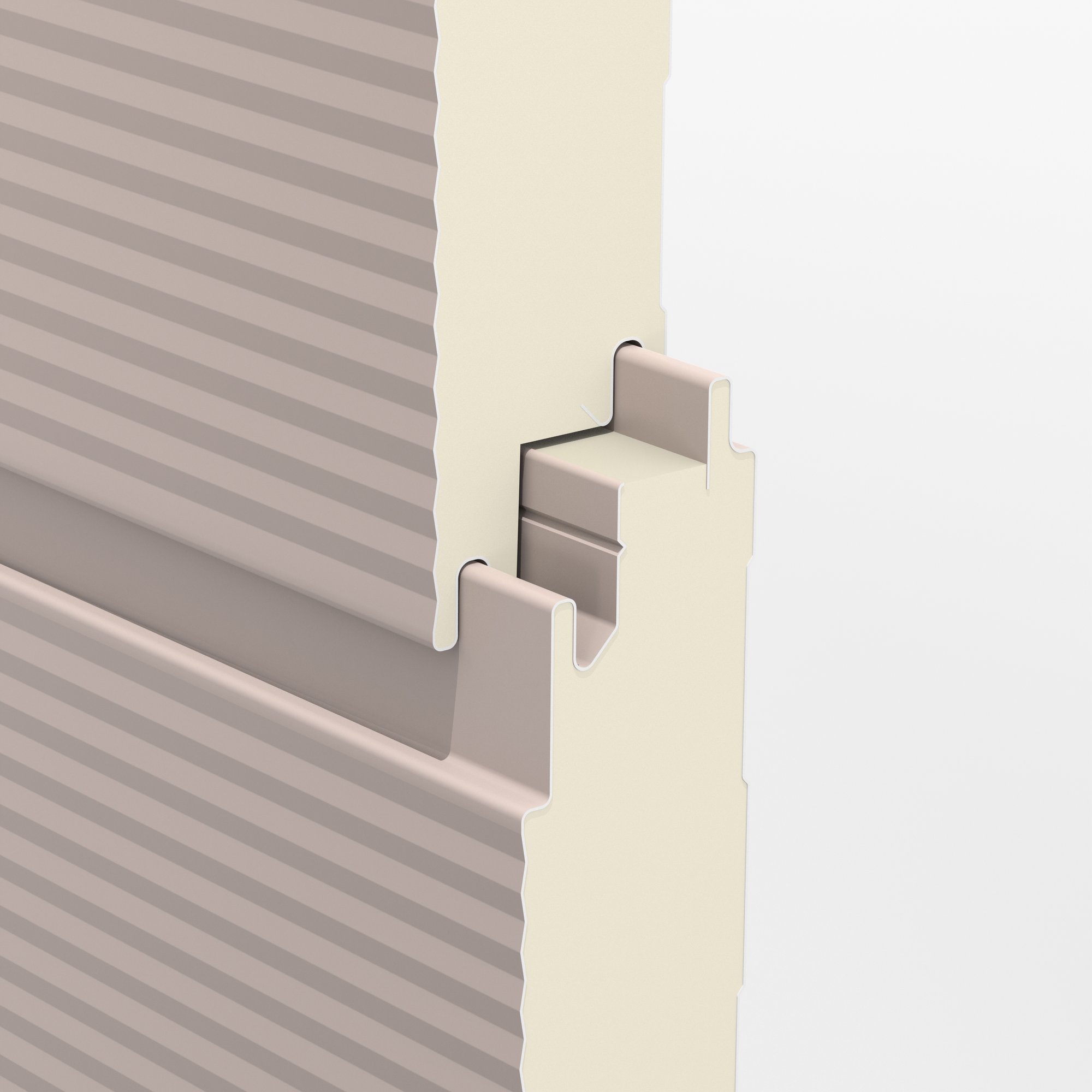

Waveline Reveal Joint

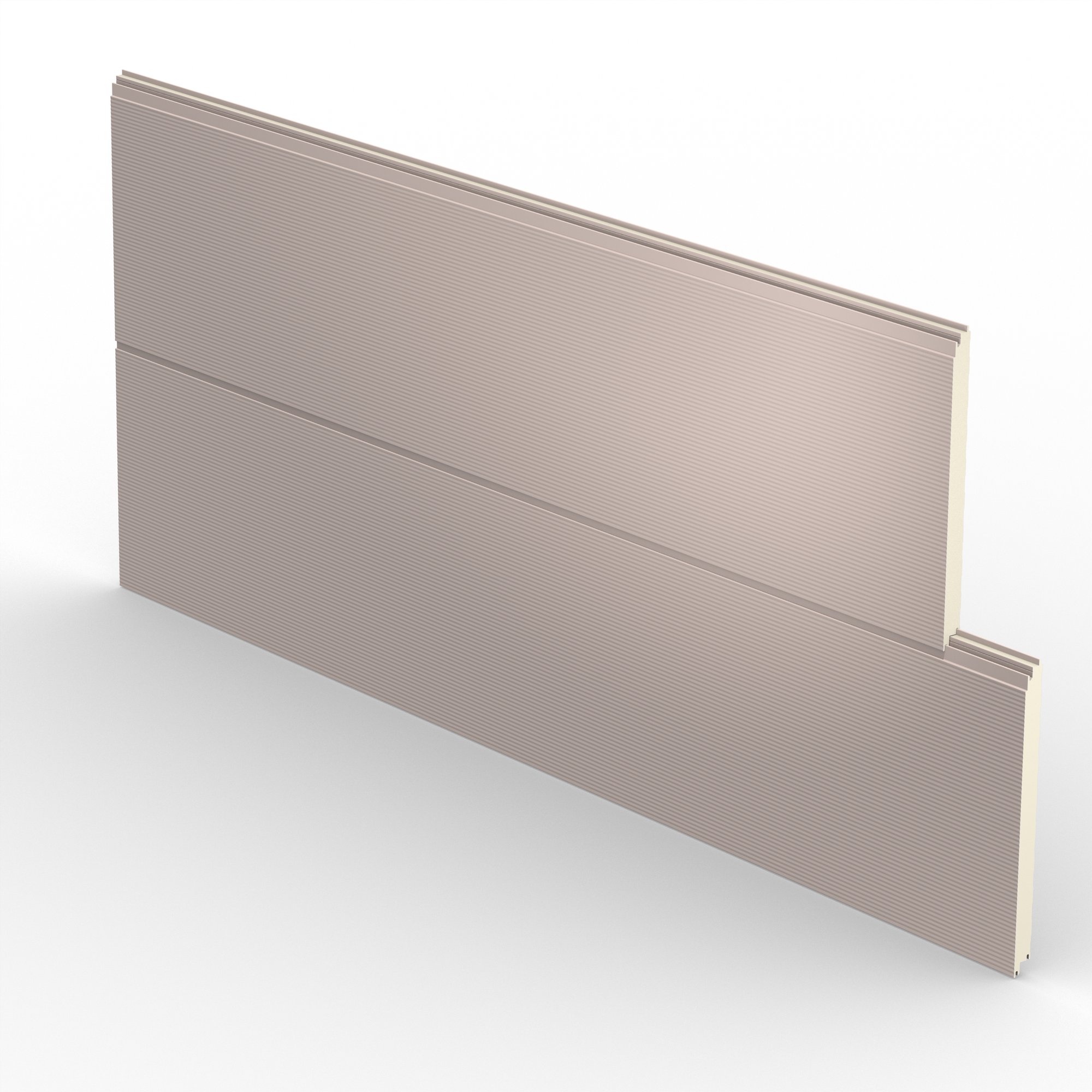

Waveline Reveal Joint Stack

Impression Reveal Joint

Impression Reveal Joint Stack

Waveline Reveal Joint

Waveline Reveal Joint Stack

Additional Information

For information regarding details, testing data and panel options, and to see an installation video for Ridgeline, please click the links below:

Green Span Profiles Brochure

Ridgeline Installation Video

Additional Green Span Profiles Downloads

Request

Samples & Color Charts

Request physical samples and color charts. All items will be sent out via UPS ground unless otherwise specified.

Shop Drawing Service

Running short of time to complete your own shop drawings? McElroy Metal can help. Click the button below to provide us some basic information and we’ll be in touch soon to discuss your project specifics.

Download Shop Drawings

If you’re creating your own shop drawings, click the button below to gain full access to our CAD and PDF Files.

View Drawings

Find a Distributor / Contractor Near You

Whether you’re building a new home or planning renovations, a metal roof can deliver long-term cost savings and comfort. To explore your options and find the product that meets your aesthetic and budgetary needs, contact a McElroy Metal distributor or contractor in your area today. We can’t wait to help make your dream home a reality.

Green Span Profiles

Insulated Metal Wall Panels
