Green Span Profiles
Insulated Metal Roof Panels
Insulated Metal Roof Panels
Great for:
WALLS
Roofs
Residential
Commercial
Green Span Profiles is a McElroy Metal joint venture company that manufactures Insulated Metal Panels (IMP’s). Utilizing state-of-the-art equipment, Green Span Profile’s panels are formed by a continuously poured-in-place manufacturing process binding interior and exterior steel facings to a polyisocyanurate insulating foam core.

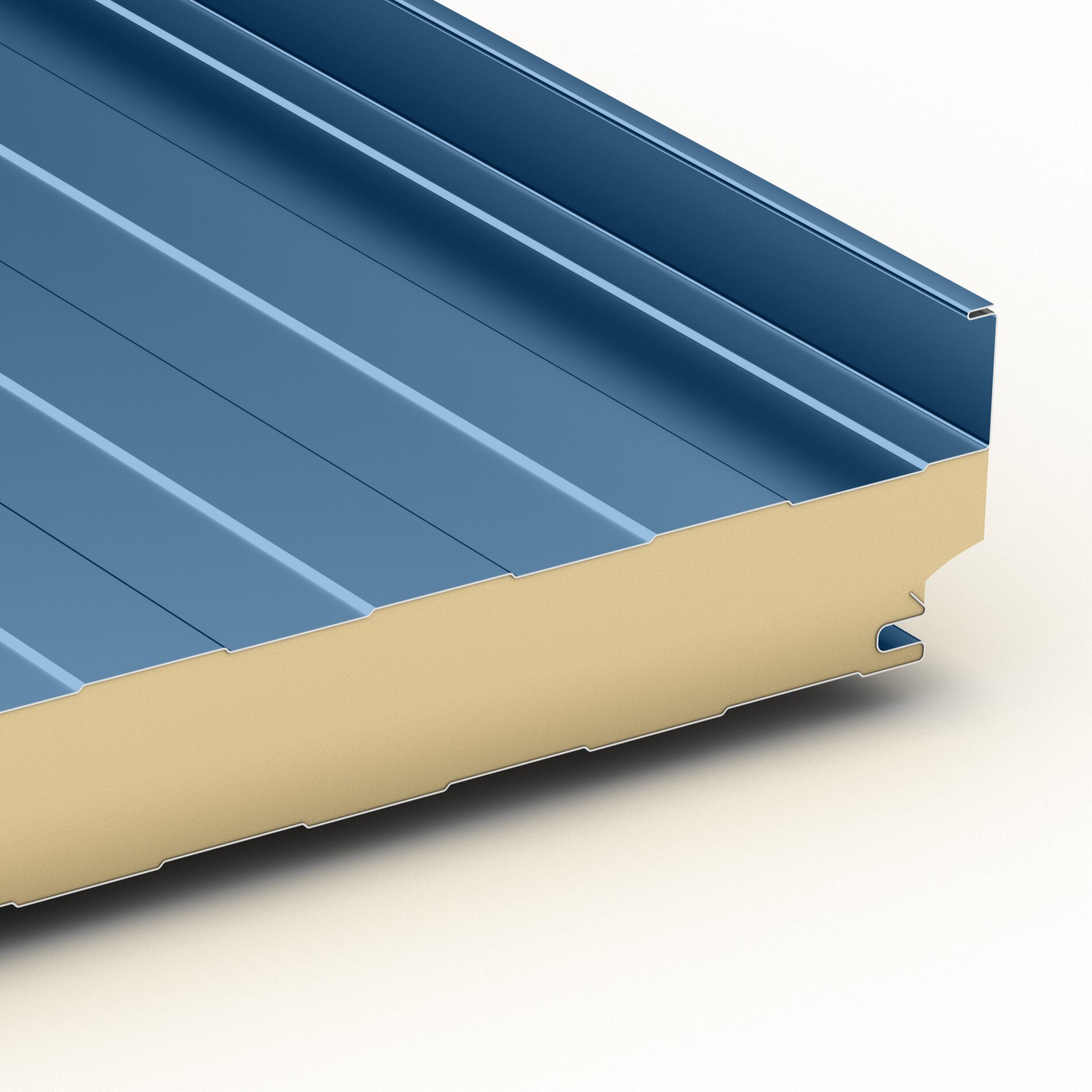

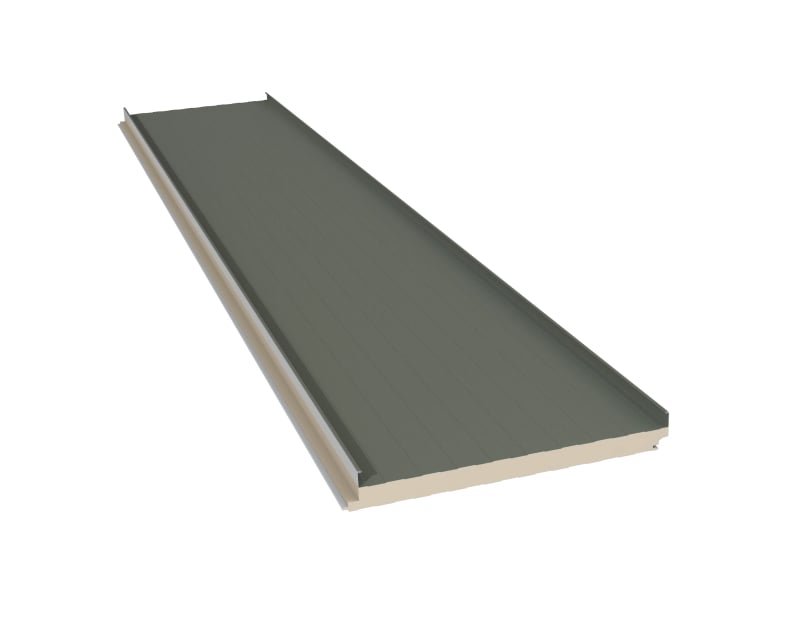

RidgeLine Roof Panel
RidgeLine is the IMP industry’s premier insulated standing-seam roof panel featuring our 238T Symmetrical Standing Seam coupled with 2 1/2" to 5" of polyisocyanurate insulation.

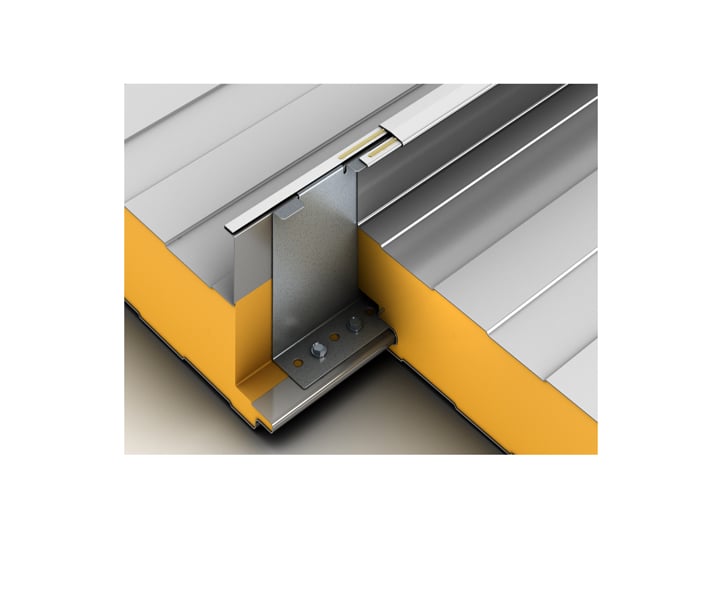

The interior tongue-and-groove joint, coupled with a factory-caulked batten, helps provide a double layer of weather-tight protection.
RidgeLine is available in 42" wide panels in 2.5, 3, 4, 5, and 6-inch thicknesses.

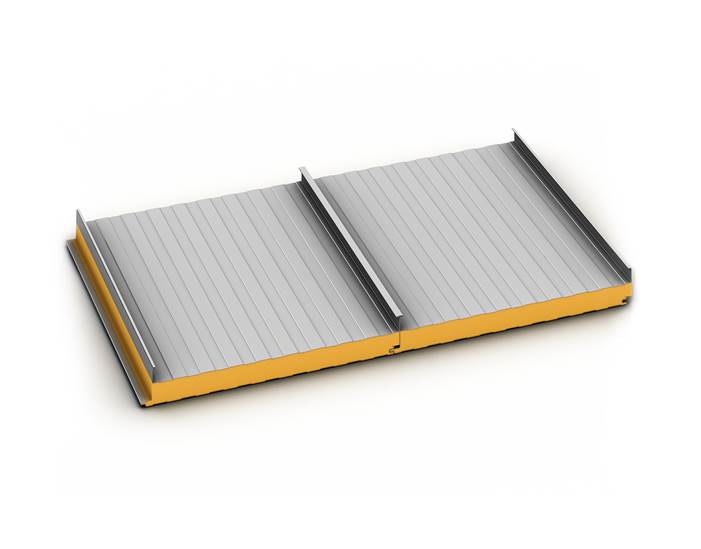

RidgeLine Roof Panel

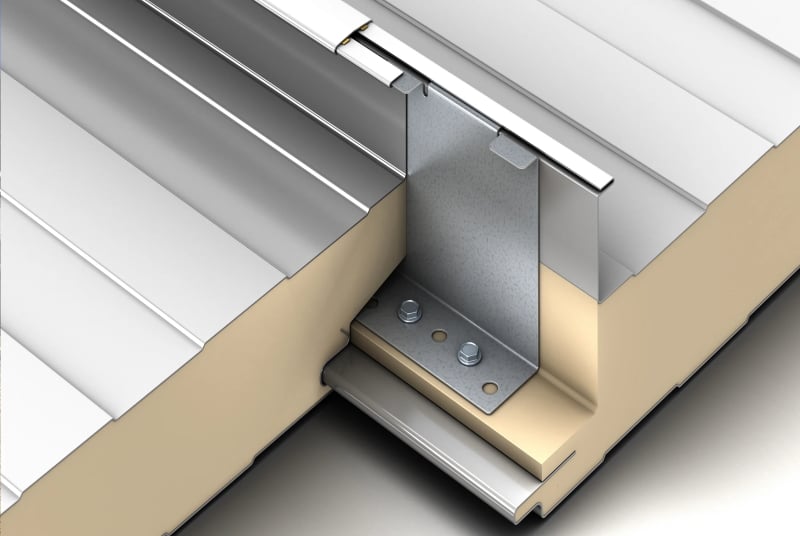

Ridgeline features a 238T Symmetrical Standing Seam which allows for sliding the panels together rather than lifting and/or rolling the panels into place. The interior tongue-and-groove joint, coupled with a factory-caulked batten, helps provide a double layer of weather-tight protection. Ridgeline comes in 42" wide panels in 2.5, 3, 4, 5 and 6 inch thicknesses.
Renderings & Profiles
Additional Information
For information regarding details, testing data and panel options, and to see an installation video for Ridgeline, please click the links below:
