U-Panel
U-Panel
Great for:
WALLS
ROOFS

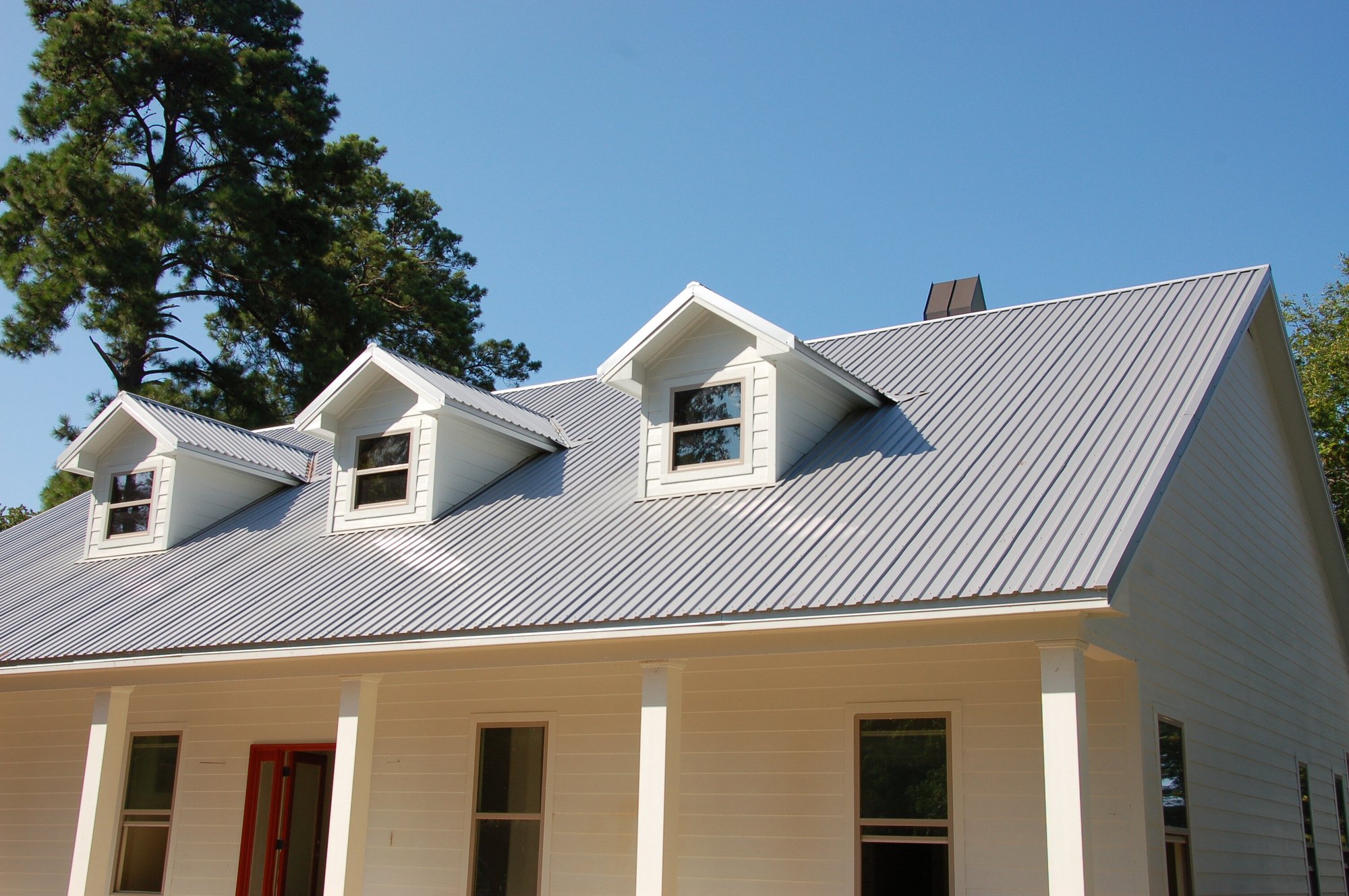

RESIDENTIAL
COMMERCIAL

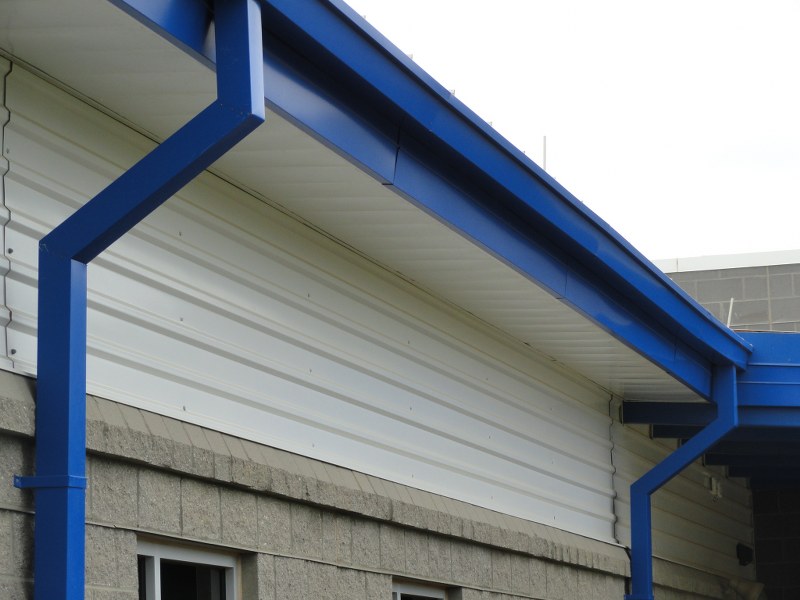

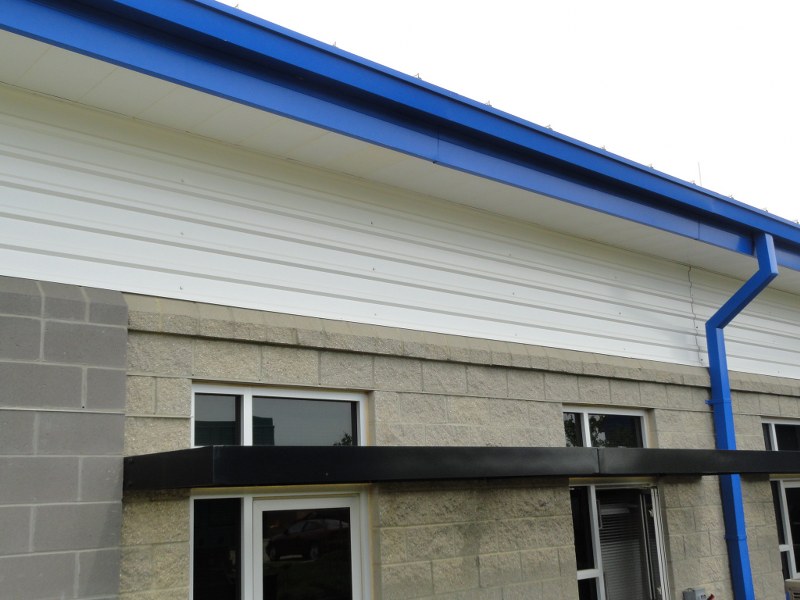

U-Panel is an exposed fastened wall and roof panel. With a ¾” (approximate) rib height and 6” on center rib spacing, U-panel offers a lower profile and softer appearance than R-Panel or Multi-Rib. U-Panel is widely utilized as a liner panel or partition wall.

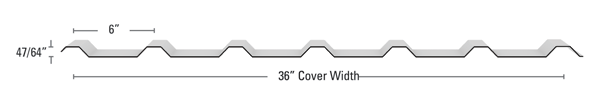

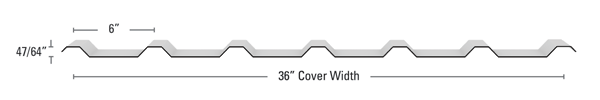

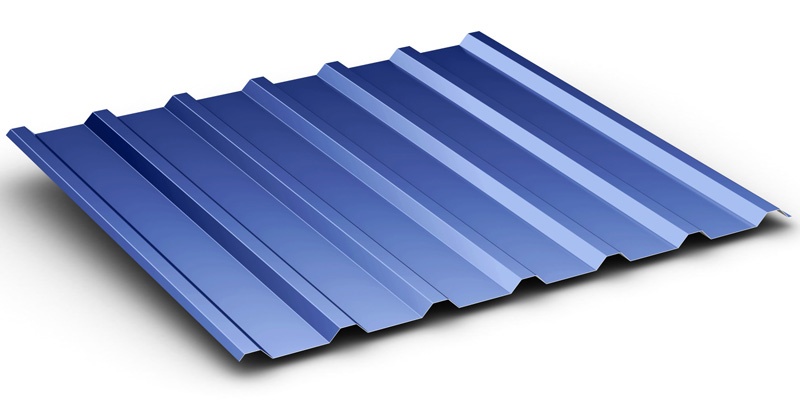

Renderings & Profiles
Specifications & Details
Details
Minimum slope (with sealant)
1:12
Manufacturing Facilities
Adelanto, CA; Ashburn, GA; Bossier City, LA; Merkel, TX
Note
Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Testing
Fire Rating
Class A
Fire Resistance
UL263
Uplift Test
UL580 Class 90
Class 4 Impact Resistance
UL2218
Florida State Approval
8885.1
IAPMO Approval
ER-0270
Testing Data
For available Test Data, Section Properties or Load Tables, please visit our downloads section.
Panel Options
Roof panels
purlin bearing leg required
Wall panels
non-purlin bearing leg optional
Coating
- Kynar 500® (PVDF)
- Silicone Modified Polyester (SMP)
Substrate
- Standard 26 GA Galvalume® (roof and wall panels)
- Optional 24 and 22 GA Galvalume (wall panels) (Inquire. Possible minimum order and longer lead time may apply.)
- Optional 29 GA Galvalume (Liner Panels - Narrow Coverage) (Inquire. Possible minimum order and longer lead time may apply.)
