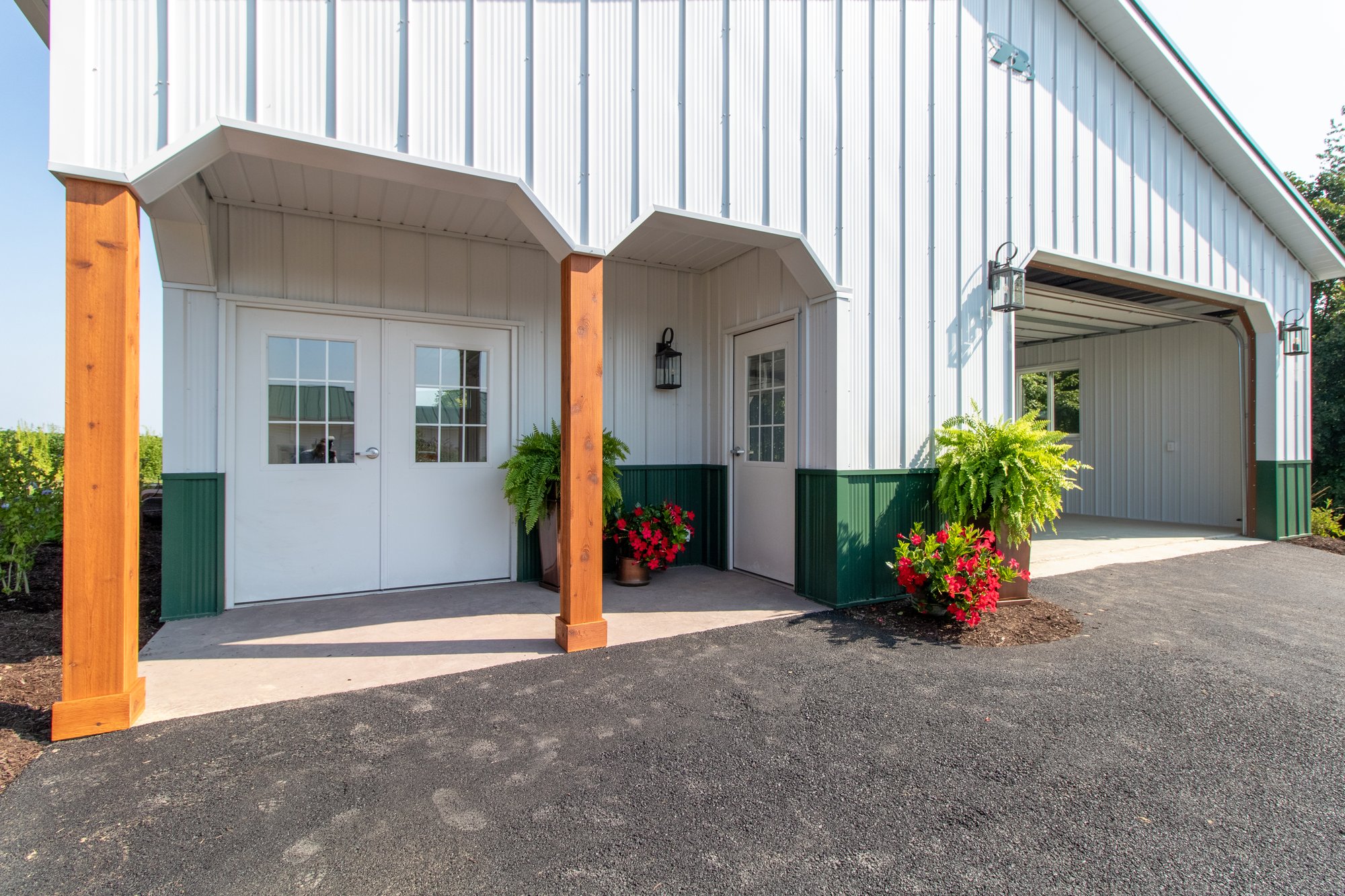

      Miller-11

      Modern-Rib

      Modern Rib is a contemporary exposed fastened panel with a ¾" rib height, blending modern aesthetics with durability for residential and light commercial applications.

      Modern-Rib

      Great for:

      walls-icon
      WALLS
      roofs-icon
      ROOFS
      residential-icon
      RESIDENTIAL
      commercial-icon
      COMMERCIAL

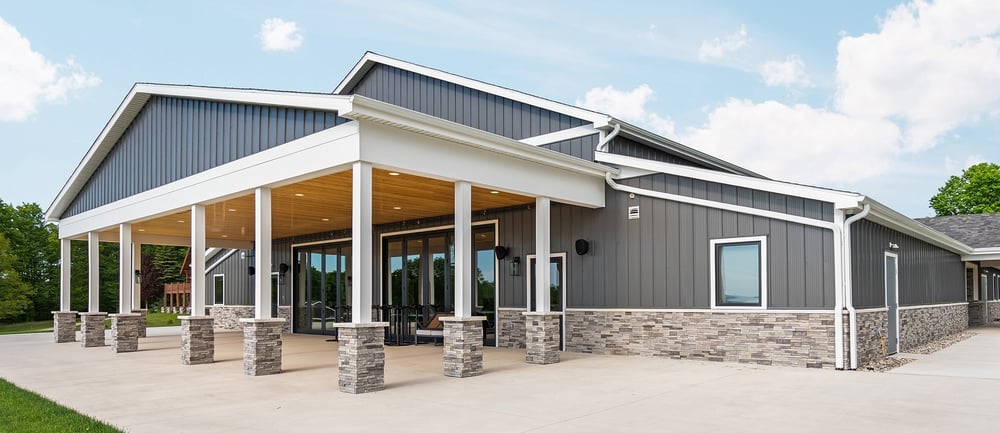

      Modern-Rib is McElroy Metal's newest panel. Modern-Rib combines the economics of an exposed fastener panel but with major ribs that simulate standing seam panels. Although an exposed fastener panel, Modern-Rib adds beauty and sophisticated styling to residential roofs and post frame structures.

      Modern-Rib is available with Silicone Modified Polyester (SMP) and Kynar 500® (PVDF) coatings. For long-term performance and curb appeal, McElroy always recommends PVDF coatings.

      View Related Files
      Build a Submittal Package

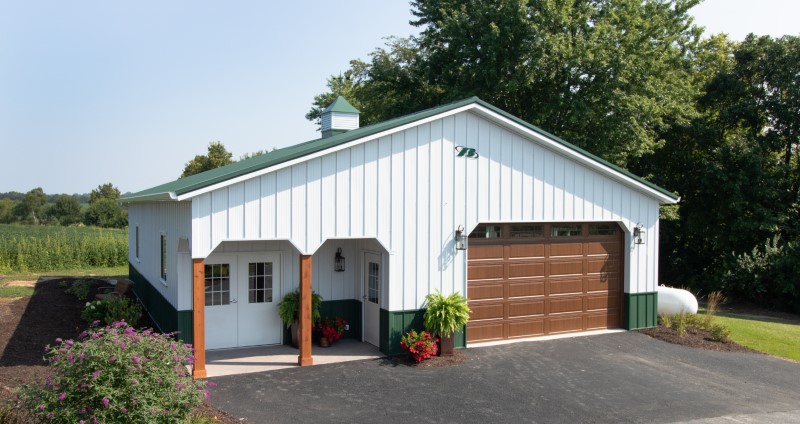

      Miller-27

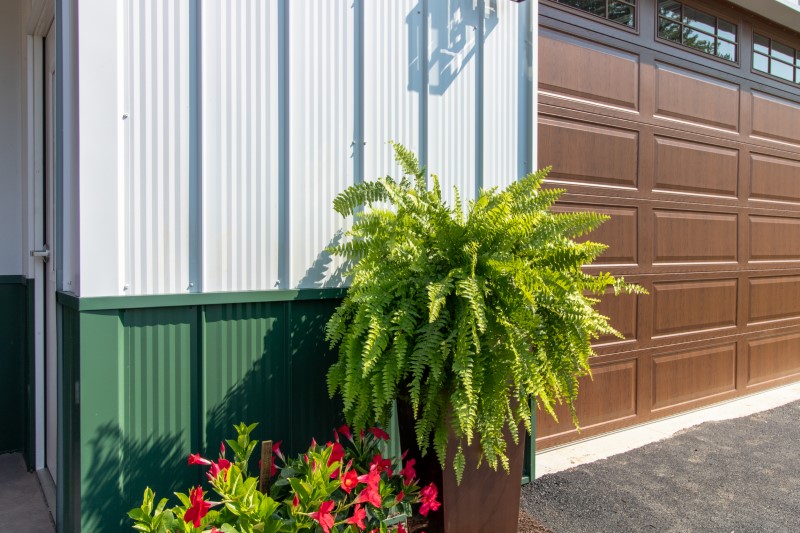

      Miller-34

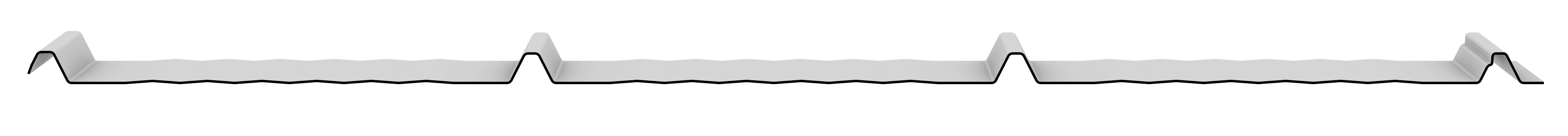

      Renderings & Profiles

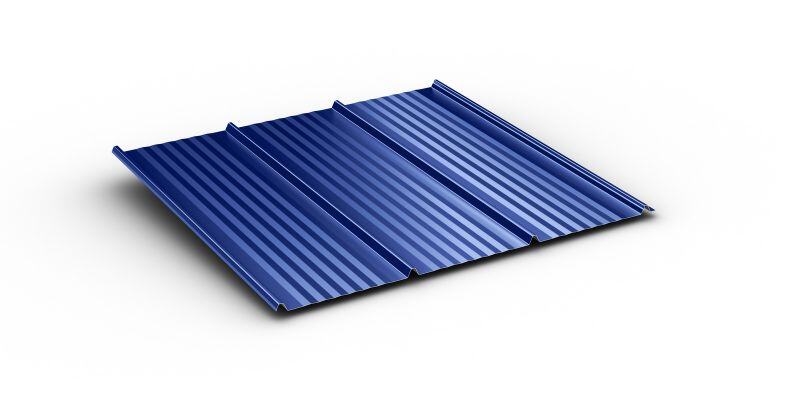

      modern-rib-modal-image-1

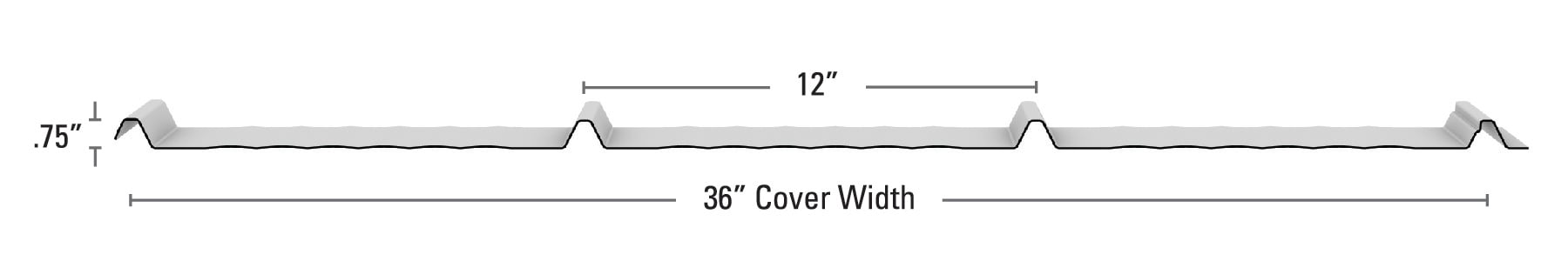

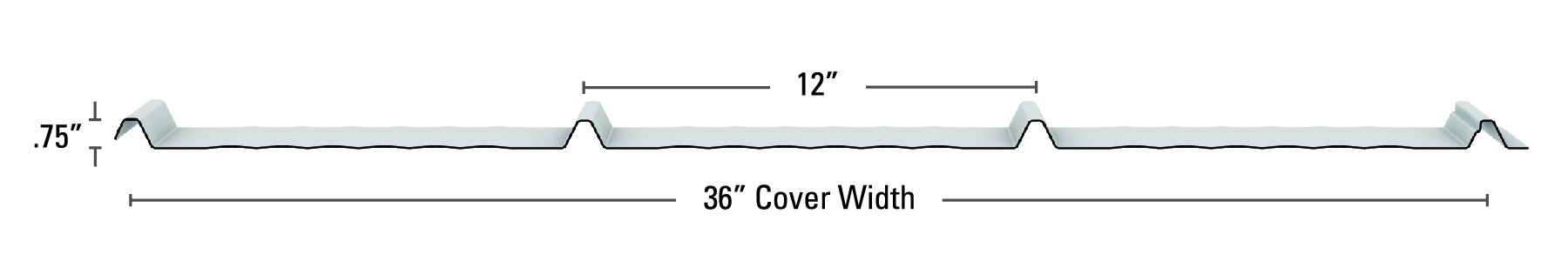

      Modern-Rib Draw w-Dimens 051822-01

      Specifications & Details

      Details

      Minimum slope (with sealant)

      1:12

      Minimum slope (without sealant)

      3:12

      Manufacturing Facilities

      Marshall, MI

      Note

      -Ideal for post frame structures and residential roofing.
      -Must be installed over solid decking for roof applications.
      -Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection

      Testing

      Fire Testing

      Class A

      Uplift Test

      UL 580 Class 90 (Pending)

      Class 4 Impact Resistant

      UL2218

      Fire Resistance

      UL263

      Panel Options

      Coating

      Kynar 500® (PVDF) and Silicone Modified Polyester (SMP)

      Substrate

      Standard 26 and 29 GA Galvalume®, 29 GA G-90 bare and G-100 painted

      Related Files

      Specifications

      CAD Drawings

      PDF Drawings

      Color Charts

      Brochures/Flyers

      Finish and Substrate Warranties

      Product Data Sheets

      Product & Trim Information Books

      English Installation Manuals

      Technical Bulletins / Panel Load Tables w/Section Properties
