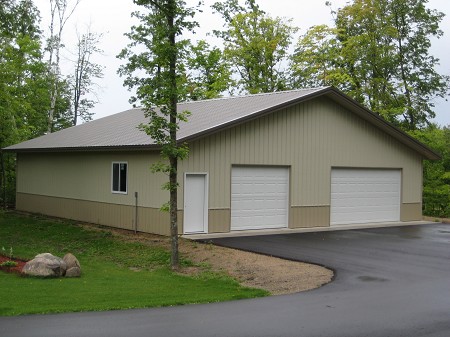

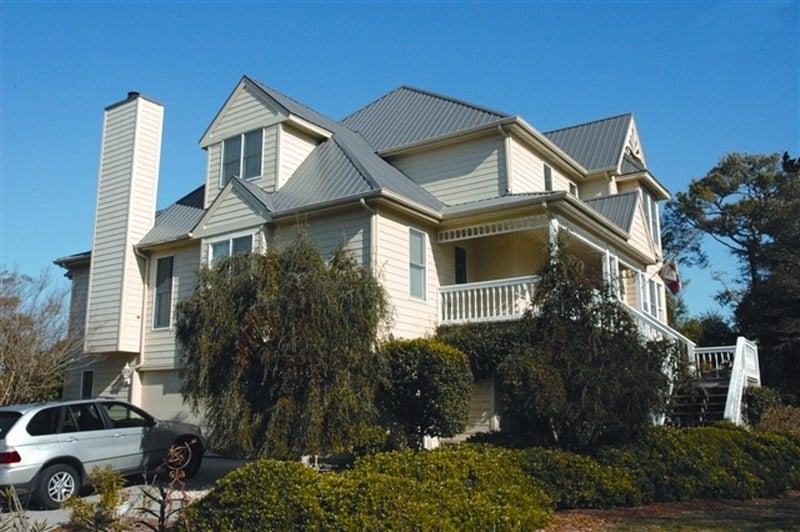

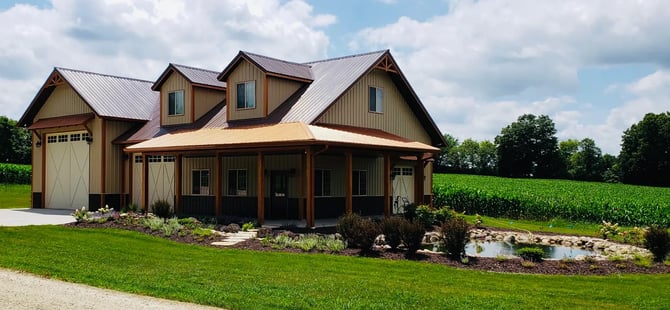

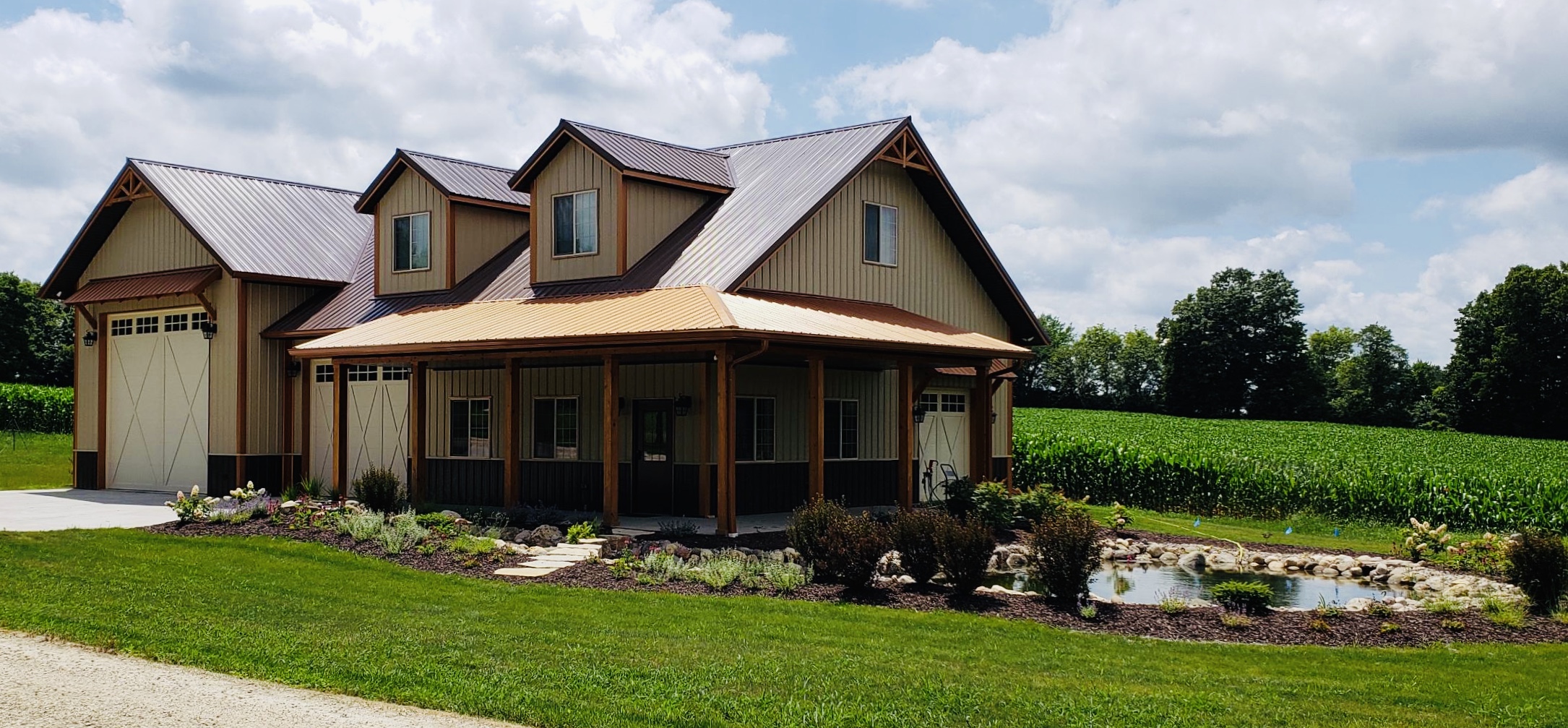

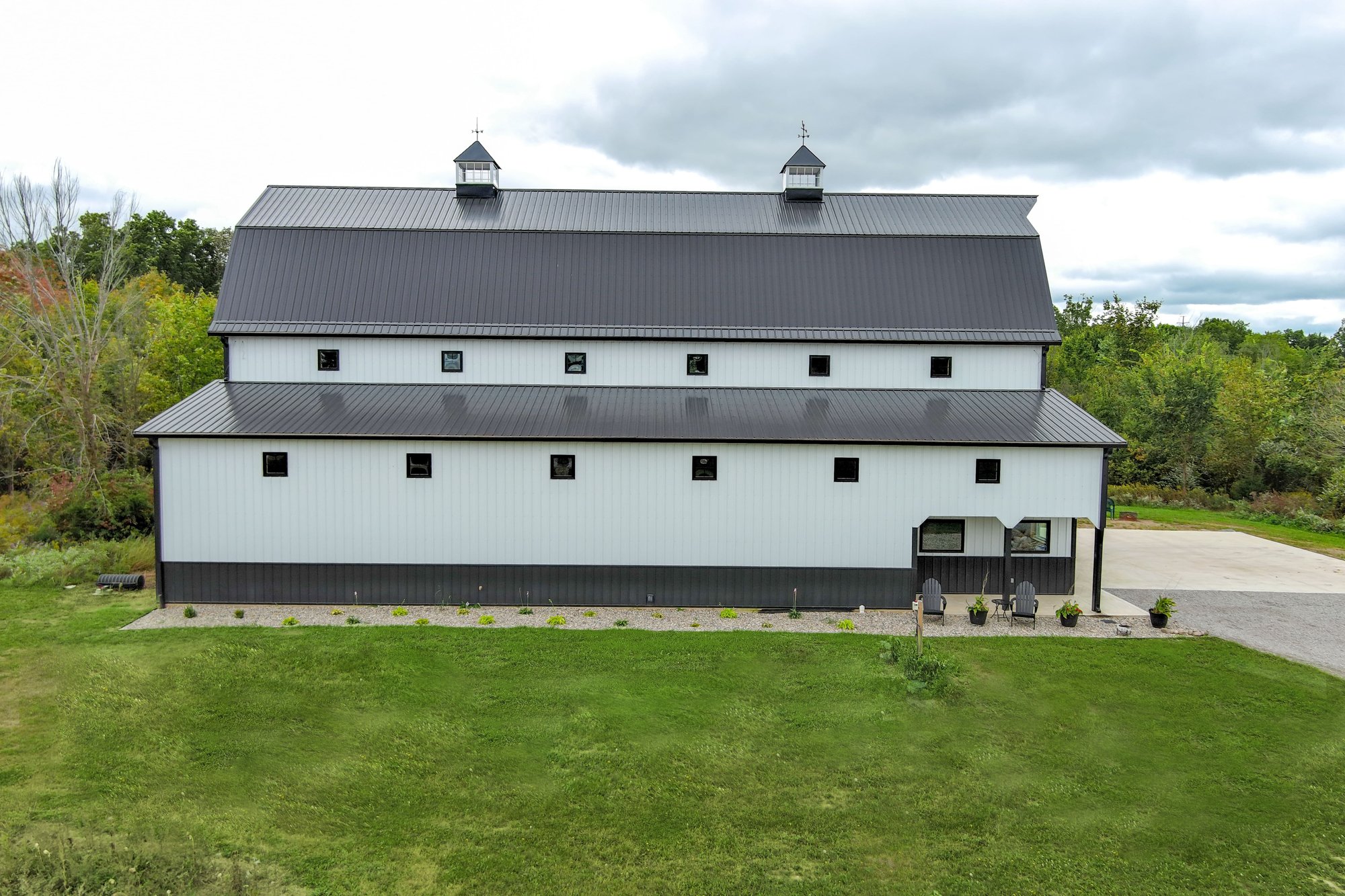

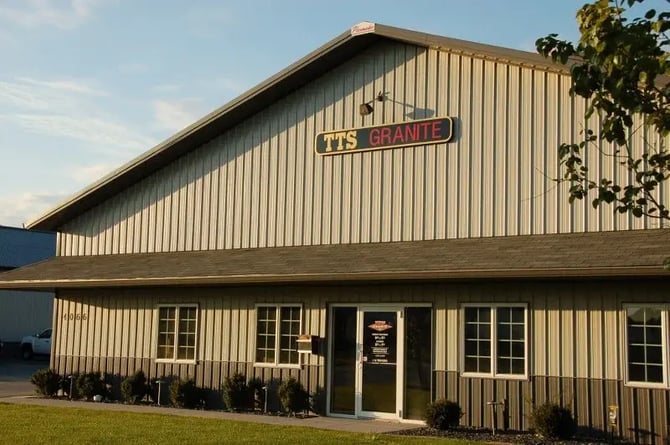

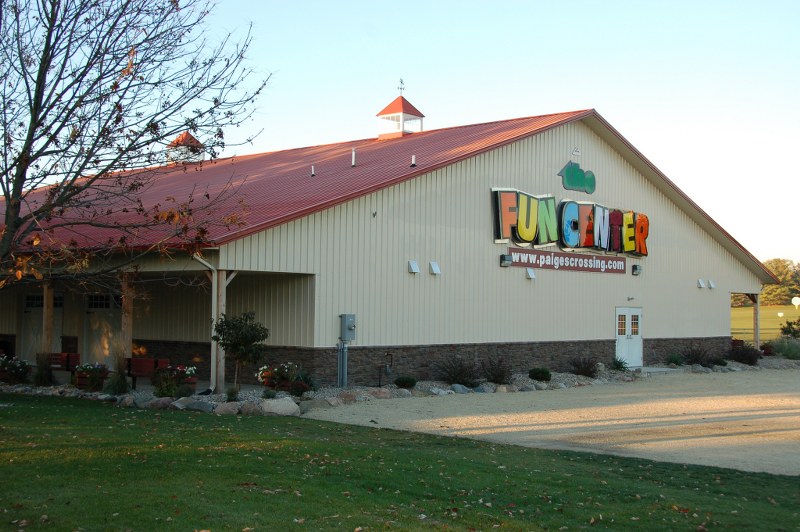

Mesa Panel
Mesa Panel
Great for:
WALLS
ROOFS
RESIDENTIAL
COMMERCIAL

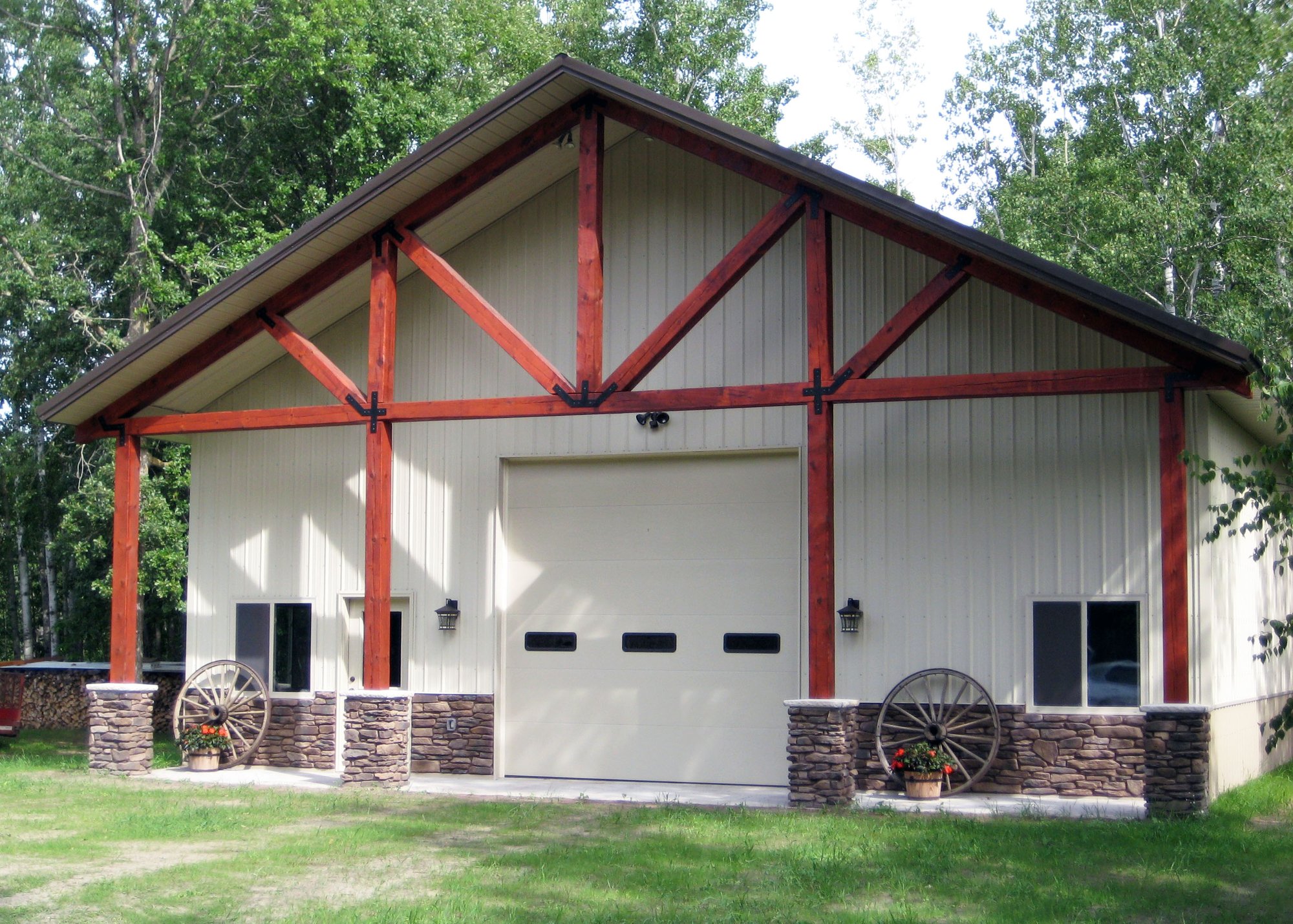

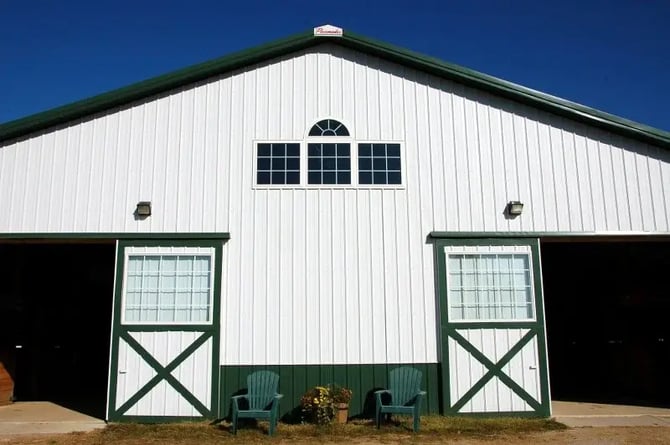

Many post frame and residential panels look identical from manufacturer to manufacturer. Mesa is a patent and copyright protected panel that can't be copied and features a nearly invisible lap offering a distinctive look.
Mesa's standard paint system is Kynar 500® (PVDF), the industry's best coating for long-term protection against panel chalk and fade.

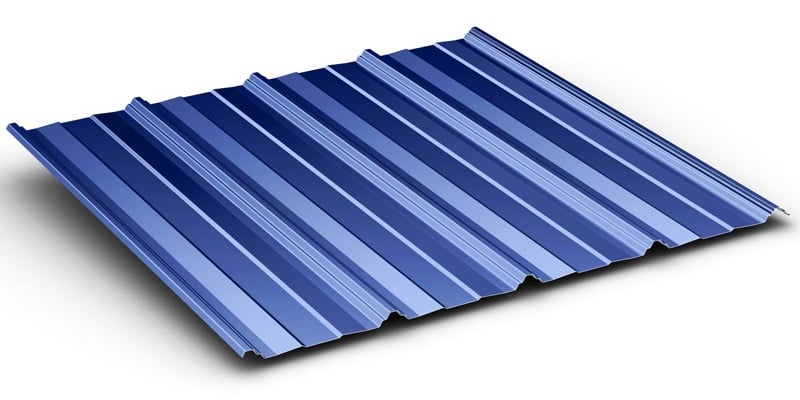

Renderings & Profiles
Thermoforming
Long-term customer satisfaction is our top priority at McElroy Metal. As a result, we're constantly looking for ways to do things better, even if it means making investments in new equipment. Thermoforming (or warm forming) is just one example of our customer commitment.

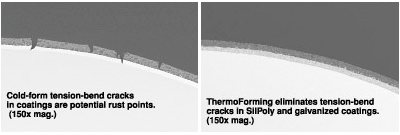

Traditionally steel panels have been manufactured from steel at room temperature. While that process worked for decades, new advances have proven that warming the steel prior to production can result in a better product with a longer life expectancy for Silicone Modified Polyester (SMP) paint systems.
Thermoforming technology is just one more thing we're doing different than our competitors to earn your business.
Factory Applied Anti-Condensation Membrane
Max-Rib roof panels with McElroy's MoistureLok, offer a great option to address condensation challenges. The design of our MoistureLok product traps moisture and then releases it back into the air as natural humidity once conditions go back below the dew point.
Specifications & Details
Details
Minimum slope (with sealant)
1:12
Minimum slope (without sealant)
3:12
Feature
Nearly invisible lap
Note
- Patent and copyright protected.
- Ideal for post frame structures and residential roofing.
-Oil Canning is a natural occurrence in metal panels and is not a cause for panel rejection
Note
Mesa is also available with MoistureLok
Testing
Fire Testing
Class A
Uplift Test
UL 580 Class 90
Class 4 Impact Resistant
UL2218
Fire Resistance
UL263
Panel Options
MoistureLok
Available
Coating
Kynar 500® (PVDF)
Substrate
Standard 26 and 29 GA Galvalume®
Manufacturing Facilities
Marshall, MI; Lewisport, KY; Mauston, WI
